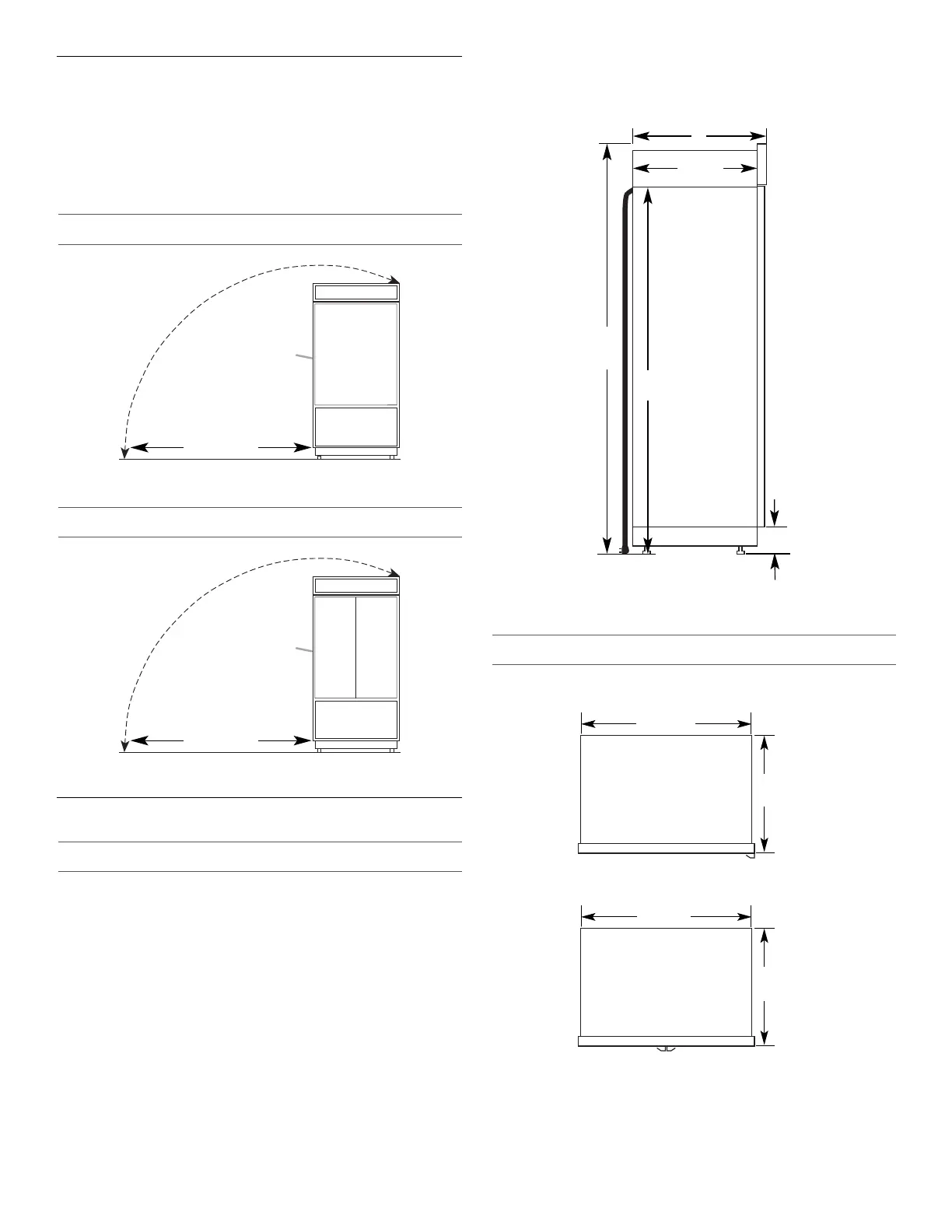

Tipping Radius
Be sure there is adequate ceiling height to stand the refrigerator
upright when it is moved into place.
■ The dolly wheel height must be added to the tipping radius
when a dolly is used.
■ If needed, the tipping radius can be reduced. See “Reduce
Tipping Radius.”
Side Tipping Radius (36" [91.4 cm] Models)
Side Tipping Radius (42" [106.7 cm] Models)
Product Dimensions
Side View
■ The depth from the front of the top grille to the back of the
refrigerator cabinet is 25³⁄₈" (64.5 cm).
■ The power cord is 84" (213 cm) long.
■ The water line attached to the back of the refrigerator is 5 ft
(1.5 m) long. Height dimensions are shown with leveling legs
extended ¹⁄₈" (3 mm) below the rollers.
*When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below
rollers, add 1¹⁄₈" (2.9 cm) to the height dimensions.
Top View
36" (91.4 cm) Models
42" (106.7 cm) Models
A. Tip this side only.
A. Tip this side only.
90¹⁄₂"
(229.9 cm)
A
93"
(236.2 cm)
A
A
23¹⁄₂"
(59.7 cm)
84" (213.4 cm)
Power Cord
*83³⁄₈"
(211.8 cm)
*3
¹⁄₂" (8.9 cm)
25³⁄₈"
(64.5 cm)
35¹⁄₄"
(89.5 cm)
25³⁄₈"
(64.5 cm)
41
¹⁄₄"
(105 cm)
