ProLineTMSeries
Features extraordinary design and exceptional levels of
performance. This series is a perfect blend of form and function
delivering professional quality, durability and simplicity.
KBRV36FPM KBRV36FPS KBLV36FPM
KBLV36FPS

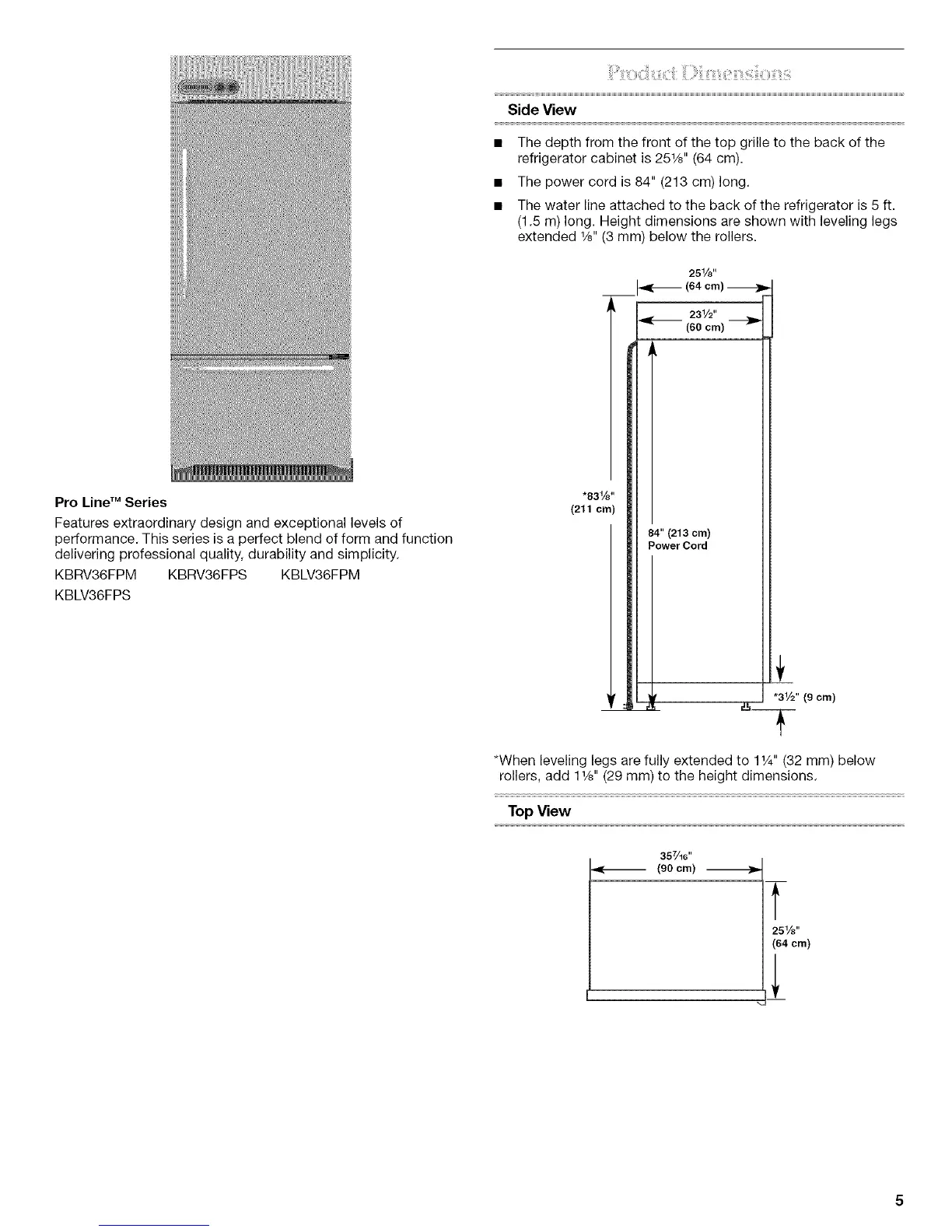

Side View
• The depth from the front of the top grille to the back of the
refrigerator cabinet is 251/8'' (64 cm).
• The power cord is 84" (213 cm) long.
• The water line attached to the back of the refrigerator is 5 ft.
(1.5 m) long. Height dimensions are shown with leveling legs
extended 1/8"(3 mm) below the rollers.
.831/8"
(211 cm)
v :
251/8"
(64 crn)
231/2"
(60 cm)
84" (213 crn)
Power Cord
_L
"31/2 '' (9 ore)
*When leveling legs are fully extended to 11/4"(32 mm) below
rollers, add 11/8"(29 mm) to the height dimensions.
Top View
357/16 ''
(90 cm)
T
251/8"
(64 cm)
