KitchenAid KBLC36FMS00 - Handle and Door Clearances

_ _ _oo-: _l_:_ __

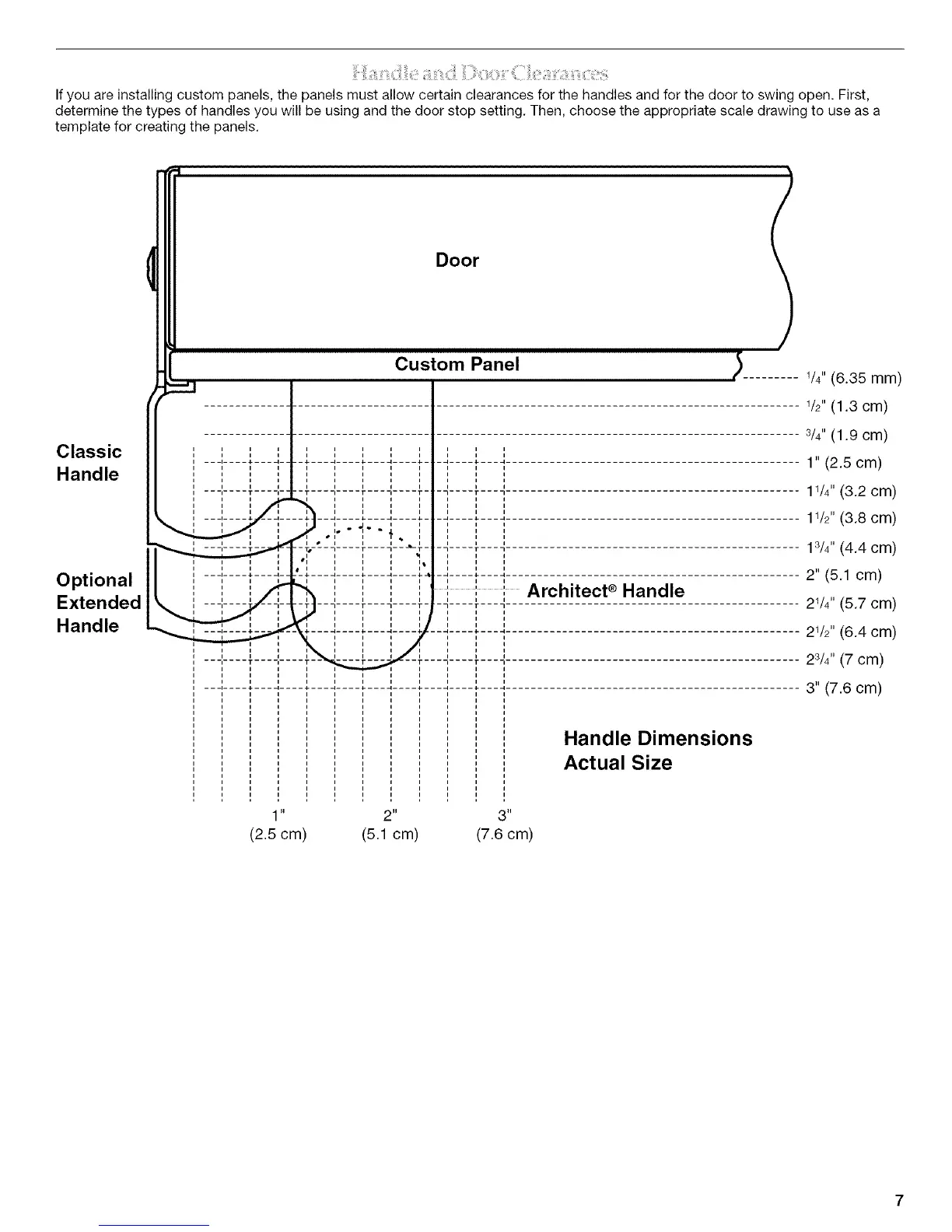

If you are installing custom panels, the panels must allow certain clearances for the handles and for the door to swing open. First,
determine the types of handles you will be using and the door stop setting. Then, choose the appropriate scale drawing to use as a
template for creating the panels.
Classic
Handle
Optional
Extended
Handle
Door
Custom Panel
Architect ® Handle
Handle Dimensions
Actual Size
......... V4"(6.35 mm)
_/_"(1.3 cm)
3/4"(1.9 cm)
1" (2.5 cm)
1_/4"(3.2 cm)
1_/_"(3.8 cm)
13/4"(4.4 cm)
2" (5.1 cm)
2V4" (5.7 cm)
2V_" (6.4 cm)
23/4"(7 cm)
3" (7.6 cm)
" 2" 3"
(2.5 cm) (5.1 cm) (7.6 cm)
