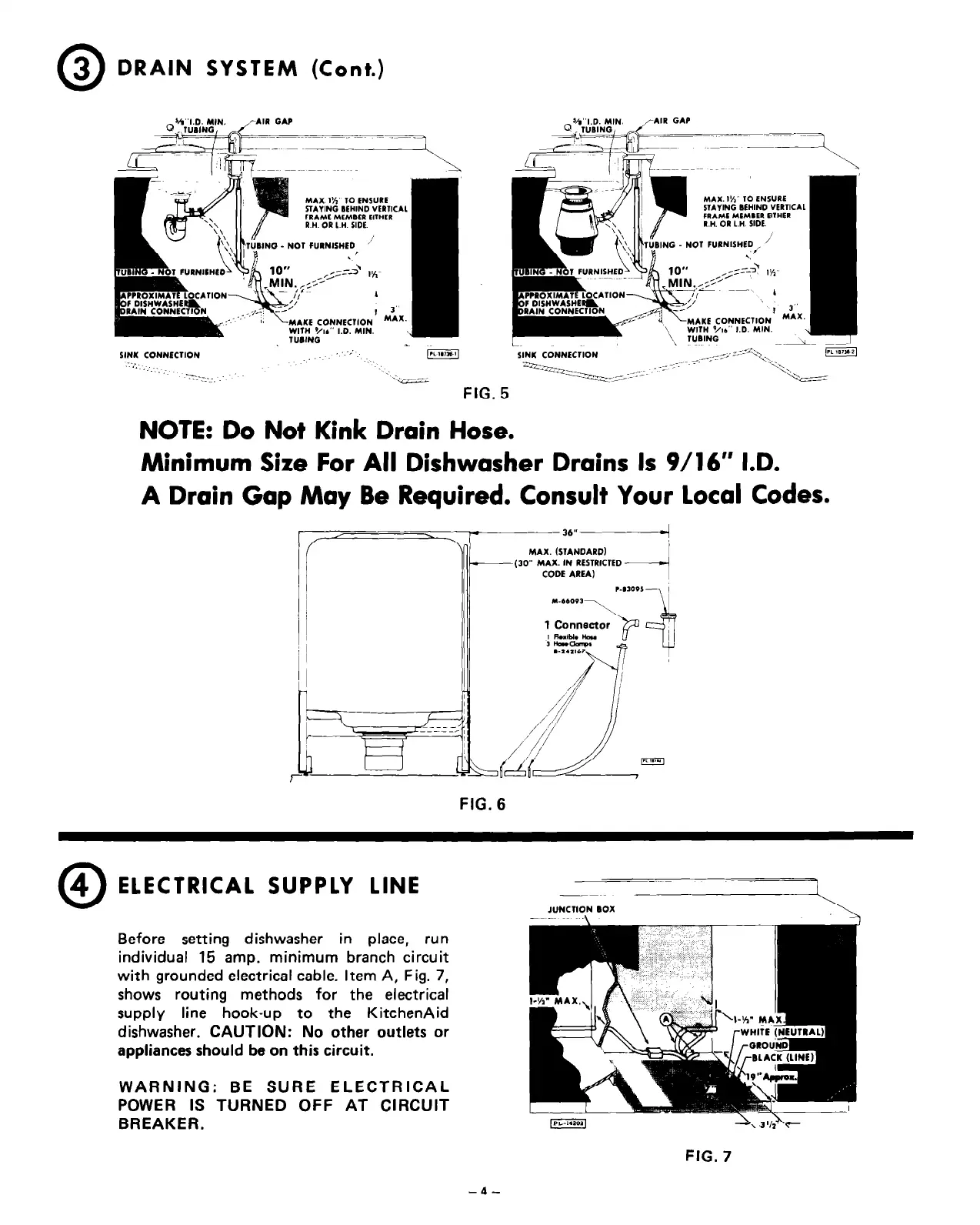

NOTE: Do Not Kink Drain Hose.
Minimum Size For All Dishwasher Drains Is 9/16” I.D.
A Drain Gap May Be Required. Consult Your local Codes.
36”-4
MAX.
(SUNDARD)
(30” MAX. IN RESTRICTED
CODE AREA)
--I
~-130*5- i
FIG. 6
0
4
ELECTRICAL SUPPLY LINE
Before setting dishwasher in place, run
individual 15 amp. minimum branch circuit
with grounded electrical cable. Item A, Fig. 7,
shows routing methods for the electrical
supply line hook-up to the KitchenAid
dishwasher. CAUTION: No other outlets or
appliances should be on this circuit.
WARNING: BE SURE ELECTRICAL
POWER IS TURNED OFF AT CIRCUIT
BREAKER.
JUNClION 00X
FIG. 7
-4-
