Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet included with power
supply cord kit.

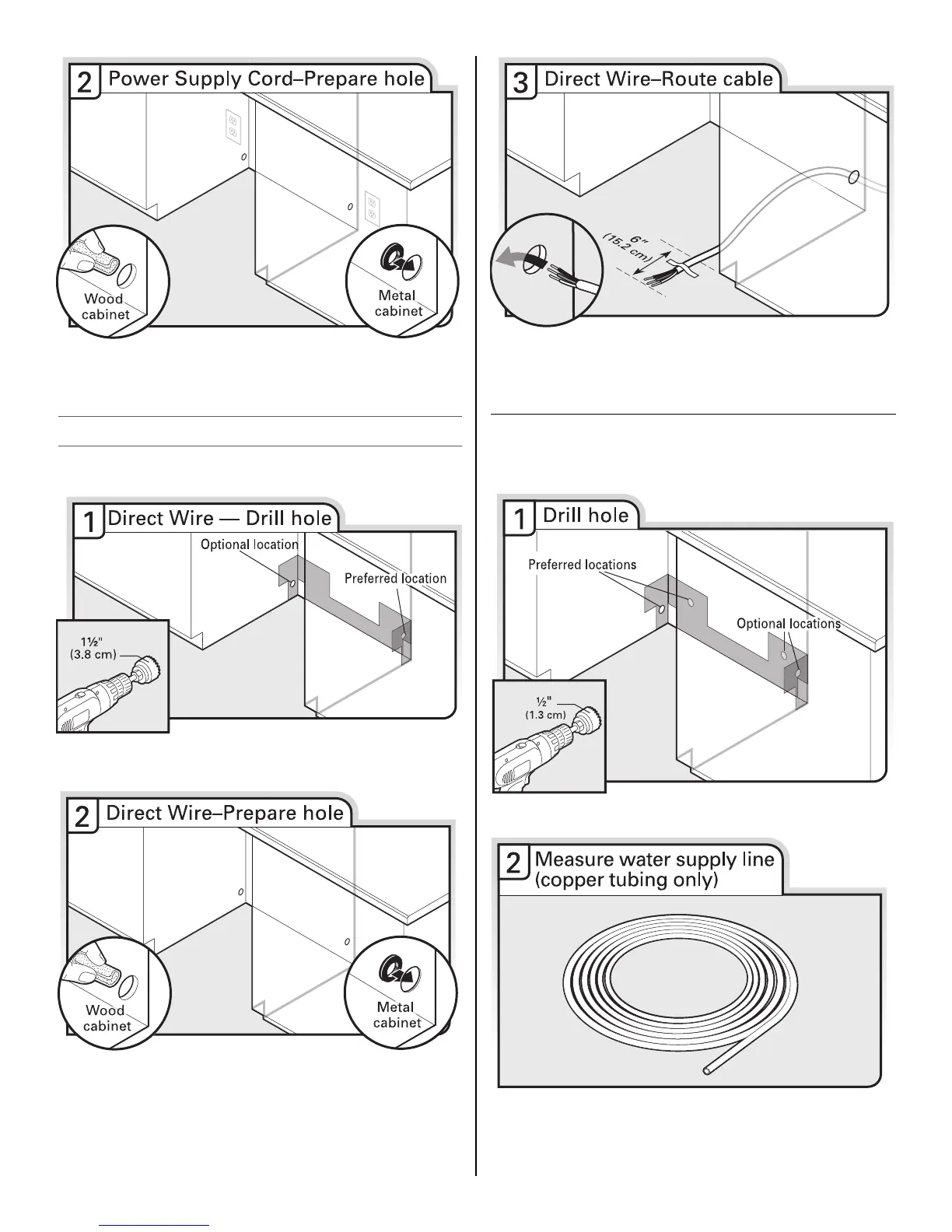

Option B, Direct Wire:
Helpful Tip: Wiring the dishwasher will be easier if you route the
cable into the cabinet opening from the right-hand side.
Drill a 1¹⁄₂" (3.8 cm) hole in right-hand cabinet side or rear.
See “Product and Cabinet Opening Dimensions” section.
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet (Part Number 302797 -
not provided).
Route cable from power supply through cabinet hole (cable must
extend to the right front side of cabinet opening). Tape cable to
the floor in area shown. This will prohibit cable from moving when
dishwasher is moved into cabinet opening.
Prepare and Route Water Line
Helpful Tip: Routing the water line through the left side of cabinet
opening will make water connection easier.
Drill a ¹⁄₂" (1.3 cm) hole in the cabinet side or rear.
Measure overall length of copper tubing for the water supply line.
To Next Page
