4-3

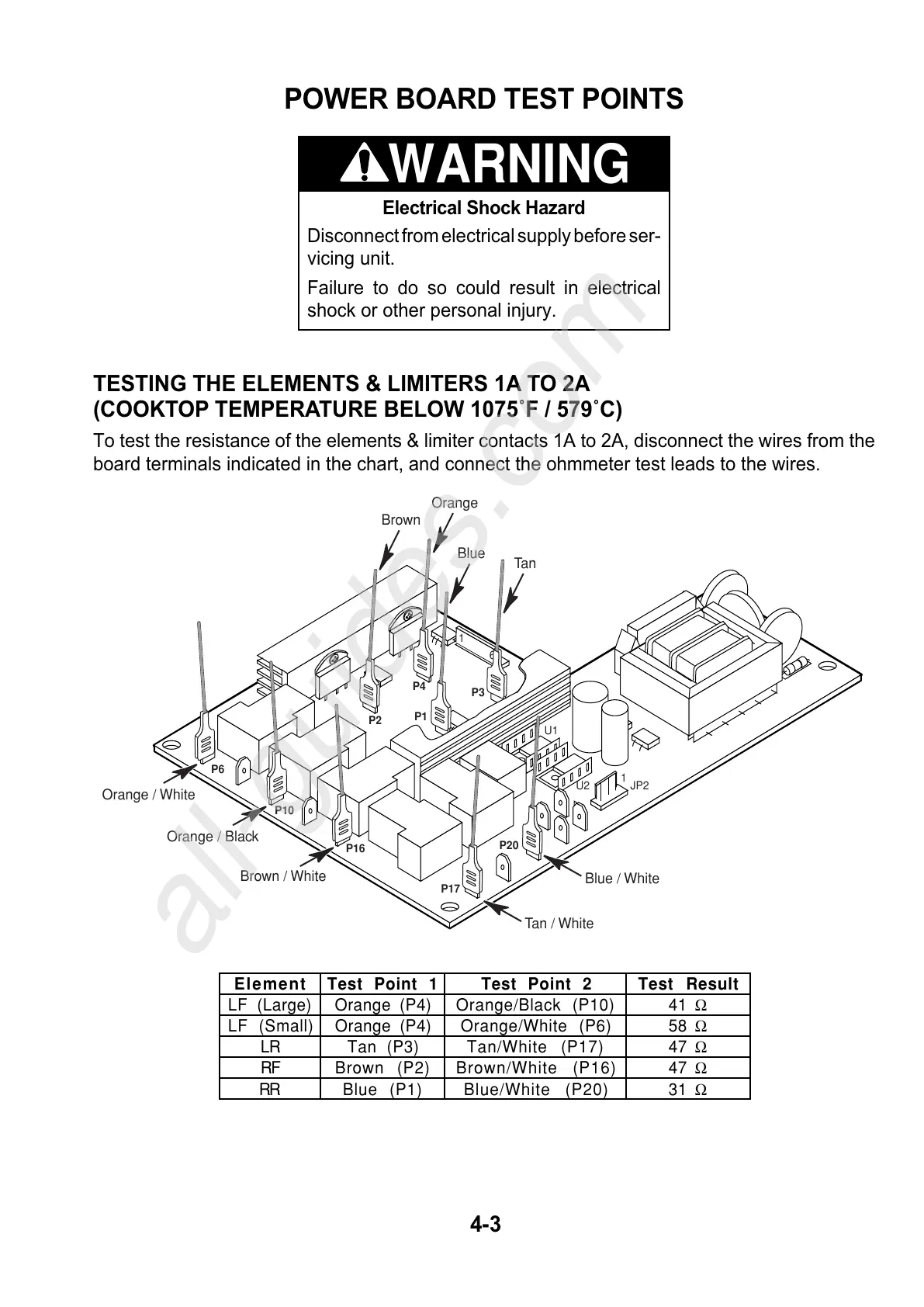

POWER BOARD TEST POINTS
U1
U2
P20
P17
P16
P2
P3
P1
P10
P6
6
1
1
JP2
Blue / White
Tan
Blue
Orange
Brown
Tan / White
Brown / White
Orange / Black
Orange / White
P4
TESTING THE ELEMENTS & LIMITERS 1A TO 2A
(COOKTOP TEMPERATURE BELOW 1075˚F / 579˚C)
To test the resistance of the elements & limiter contacts 1A to 2A, disconnect the wires from the
board terminals indicated in the chart, and connect the ohmmeter test leads to the wires.
Electrical Shock Hazard
Disconnect from electrical supply before ser-
vicing unit.
Failure to do so could result in electrical
shock or other personal injury.
WARNING
Element Test Point 1 Test Point 2 Test Result
LF (Large) Orange (P4) Orange/Black (P10) 41
Ω
LF (Small) Orange (P4) Orange/White (P6) 58 Ω
LR Tan (P3) Tan/White (P17) 47 Ω
RF Brown (P2) Brown/White (P16) 47 Ω
RR Blue (P1) Blue/White (P20) 31 Ω
