4-4
JP3
JP3
U1
U2
P2
P4
P3
P1
6
1
1
JP2
Relay
2
Relay
7
Relay
4
Relay
3
Relay
1
2
1
3
4
6
5
Black (Vss)
Orange (LF)
Tan (LR)
Brown (RF)
Blue (RR)

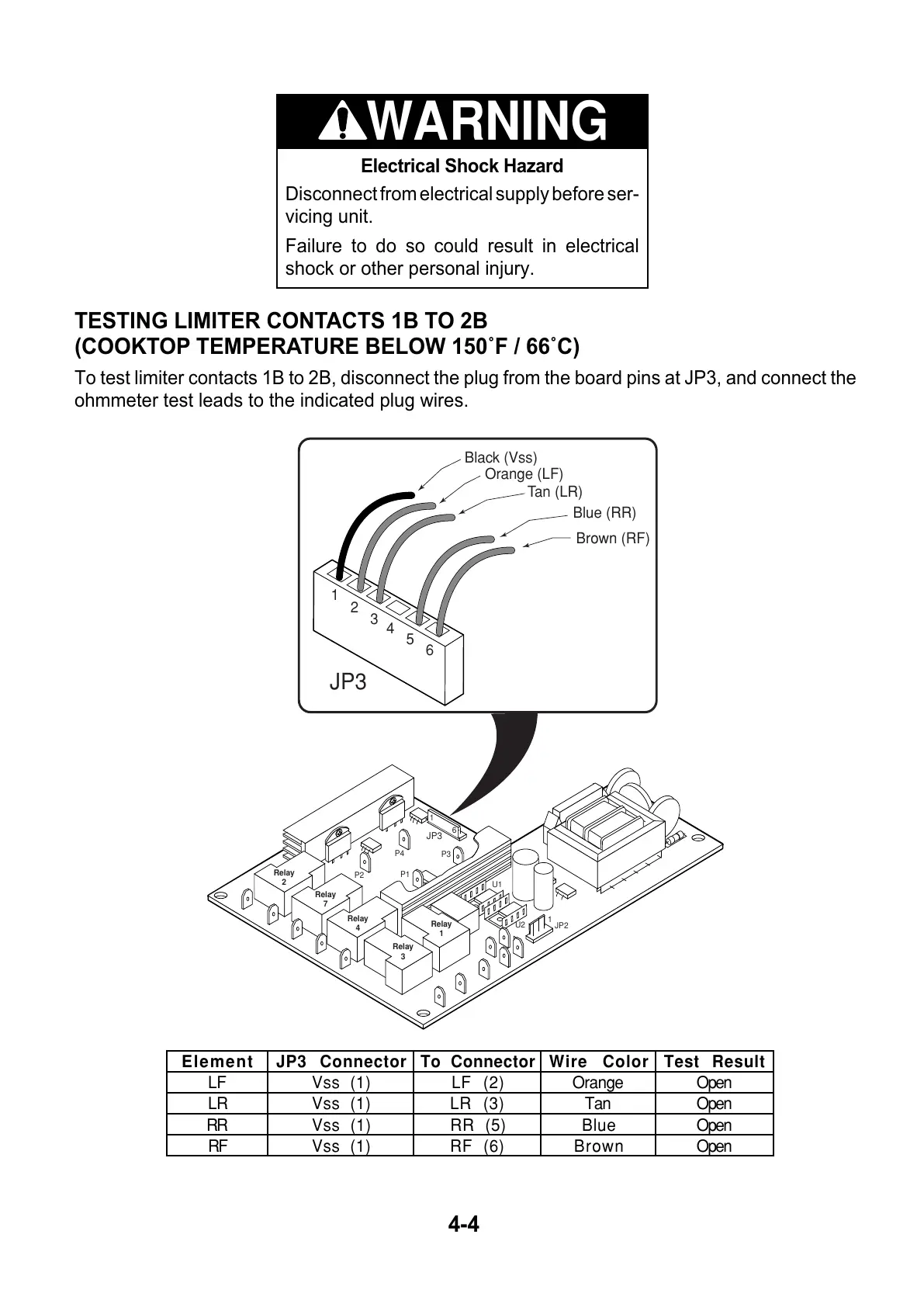

TESTING LIMITER CONTACTS 1B TO 2B
(COOKTOP TEMPERATURE BELOW 150˚F / 66˚C)
To test limiter contacts 1B to 2B, disconnect the plug from the board pins at JP3, and connect the
ohmmeter test leads to the indicated plug wires.
Electrical Shock Hazard
Disconnect from electrical supply before ser-
vicing unit.
Failure to do so could result in electrical
shock or other personal injury.
WARNING
Element JP3 Connector To Connector Wire Color Test Result
LF Vss (1) LF (2) Orange Open
LR Vss (1) LR (3) Tan Open
RR Vss (1) RR (5) Blue Open
RF Vss (1) RF (6) Brown Open
To Next Page
