4-6

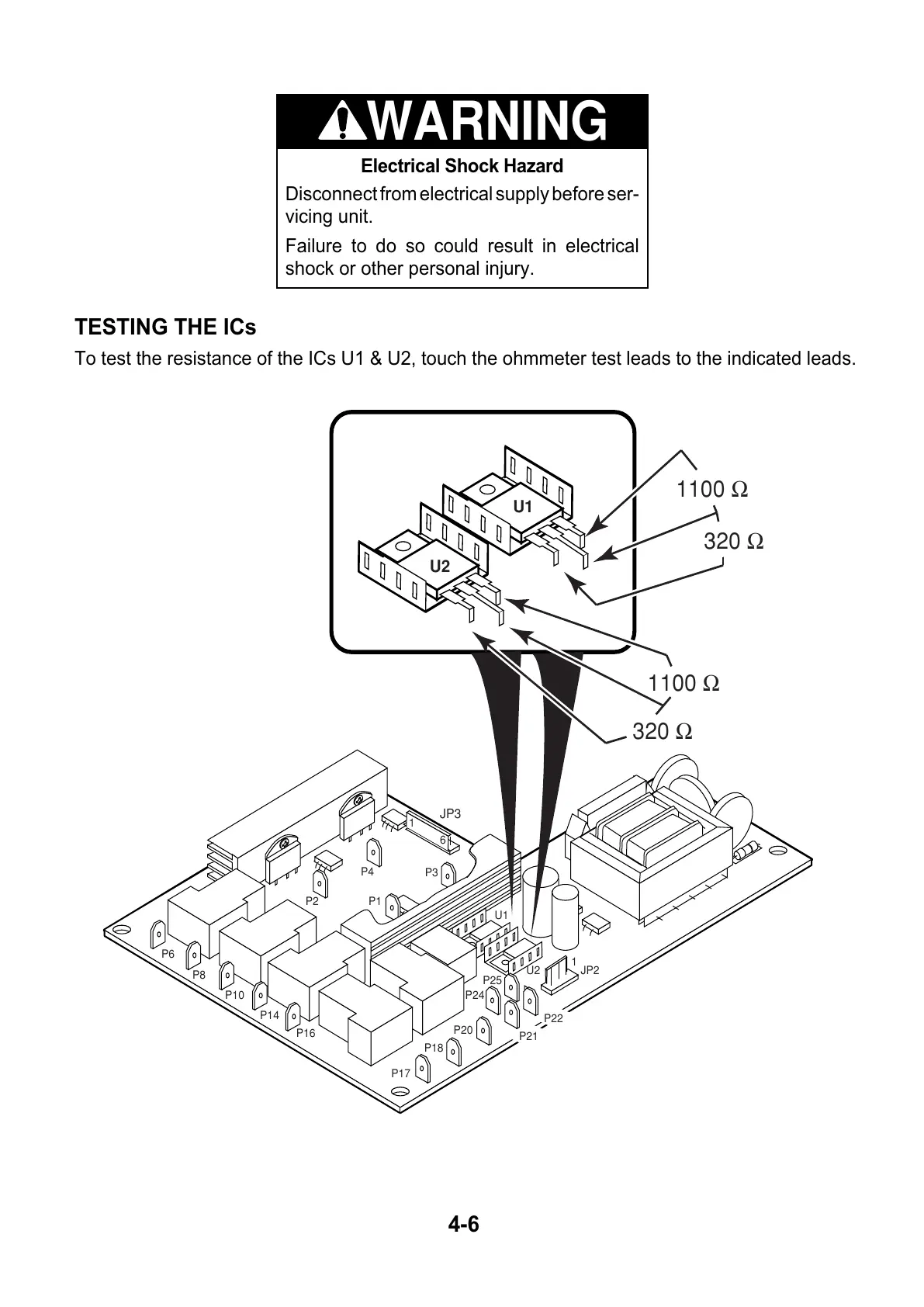

TESTING THE ICs
To test the resistance of the ICs U1 & U2, touch the ohmmeter test leads to the indicated leads.
Electrical Shock Hazard
Disconnect from electrical supply before ser-
vicing unit.
Failure to do so could result in electrical
shock or other personal injury.
WARNING
JP3
U1
U2
P20
P24
P25
P18
P17
P16
P2
P4
P3
P1
P14
P10
P8
P6
6
1
1
JP2
U1
U2
P21
P22
1100 Ω
1100 Ω
320 Ω
320 Ω
