6

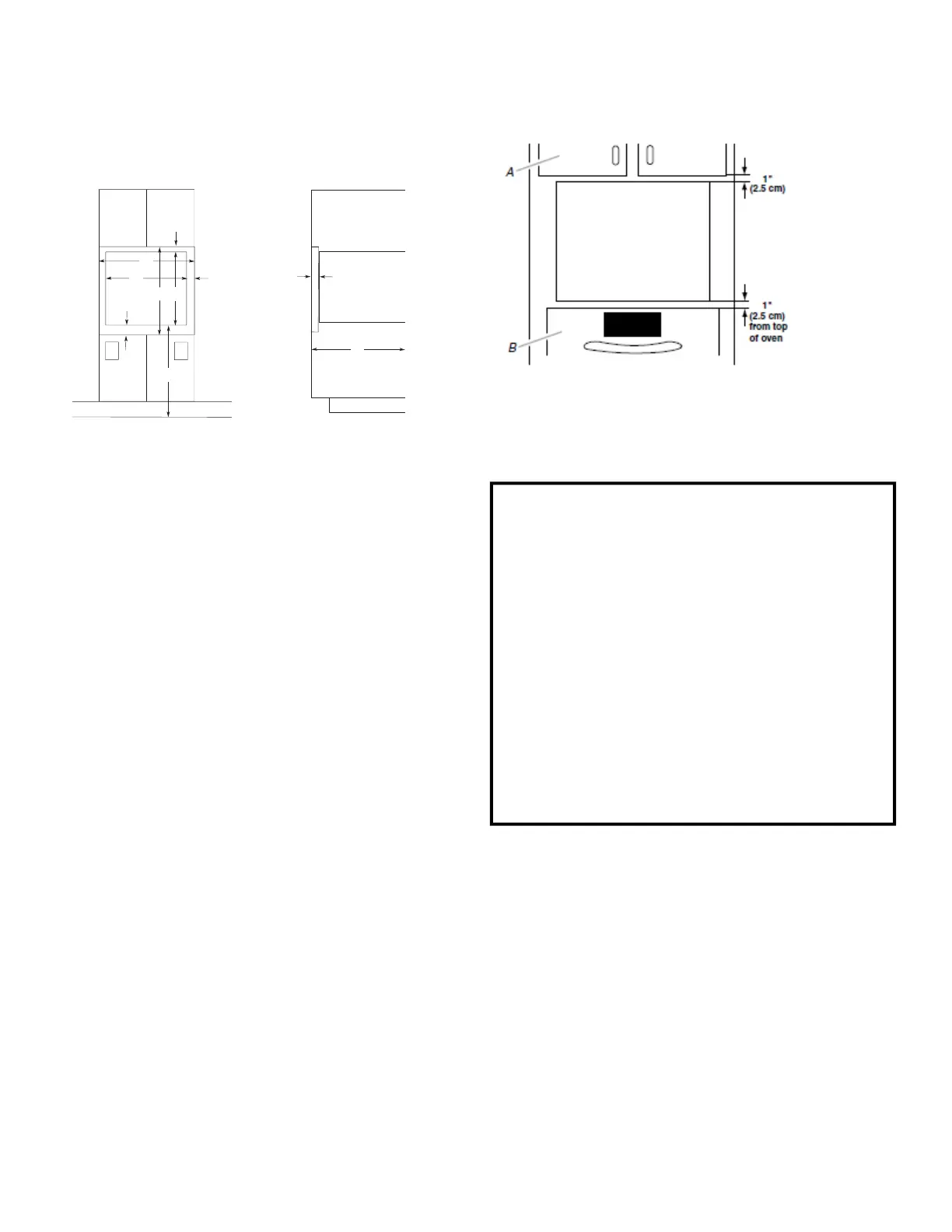

Cabinet Dimensions - Flush Installation
A 23
1
/
4
" (59.0 cm) minimum cutout depth is required. These
dimensions will result in a 1/4" (6 mm) reveal on the top, a 1/4" (6
mm) reveal on the sides, and a 1/8" (3 mm) reveal on the bottom
of the microwave oven. The front face of the cleats and platform
will be visible and should be treated as a finished surface.
Front View
Side View
27" (68.6 cm) Models
A. 5/8" (16 mm) top cleat*
B. 27
1
/
4
" (69.2 cm) minimum
width of flush inset cutout
C. 25
7
/
8
" (65.7 cm) minimum
width of opening
D. 19" (48.3 cm) minimum
height of flush inset cutout
E. 17
5
/
8
" (44.7 cm)
recommended cutout
height
F. 11/16" (1.7 cm) side cleat*
G. 3/4" (1.9 cm) bottom cleat*
H. Recommended junction
box location
I. 40" (101.6 cm) bottom of
cutout to floor
(recommended)
J. 23
1
/
4
" (59.0 cm) minimum
depth of cutout
K. 1
3
/
8
" (3.5 cm) recess from
front of cabinet
30" (76.2 cm) Models
A. 5/8" (16 mm) top cleat*
B. 30
1
/
4
" (76.8 cm) minimum
width of flush inset cutout
C. 28
7
/
8
" (73.3 cm) minimum
width of opening
D. 19" (48.3 cm) minimum
height of flush inset cutout
E. 17
5
/
8
" (44.7 cm)
recommended cutout
height
F. 11/16" (1.7 cm) side cleat*
G. 3/4" (1.9 cm) bottom cleat*
H. Recommended junction
box location
I. 40" (101.6 cm) bottom of
cutout to floor
(recommended)
J. 23
1
/
4
" (59.0 cm) minimum
depth of cutout
K. 1
3
/
8
" (3.5 cm) recess from
front of cabinet
*Cleats must be recessed 1
3
/
8
" (3.5 cm) from the front of the
cabinet.
Minimum Installation Clearances
For proper installation, the following minimum clearances must
exist above and below the cabinet opening.
Installation Above Single Built-In Oven
A. Upper cabinet
B. Lower single oven
Approved models: KMBP100E and KMBP107E
Electrical Requirements
GROUNDING INSTRUCTIONS
For a grounded, cord-connected appliance:
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the risk of
electric shock by providing a path of least resistance for
electric current. This appliance is equipped with a cord having
an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly grounded. Do
not modify the plug provided with the appliance: if it will not fit
the outlet, have a proper outlet installed by a qualified
electrician.
SAVE THESE INSTRUCTIONS
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path and the wire gauge are in accordance with local
codes.
Check with a qualified electrical installer if you are not sure the
oven is properly grounded.
This oven must be connected to a grounded metal, permanent
wiring system.
Be sure that the electrical connection and wire size are adequate
and in conformance with the National Electrical Code, ANSI/NFPA
70-latest edition or CSA Standards C22.1-94, Canadian Electrical
Code, Part 1 and C22.2 No. O-M91-latest edition, and all local
codes and ordinances.
