KitchenAid KODE300ESS - Convection Fan Motor Removal

COMPONENT ACCESS
Built-In Single and Double Wall Ovens
n
4-5

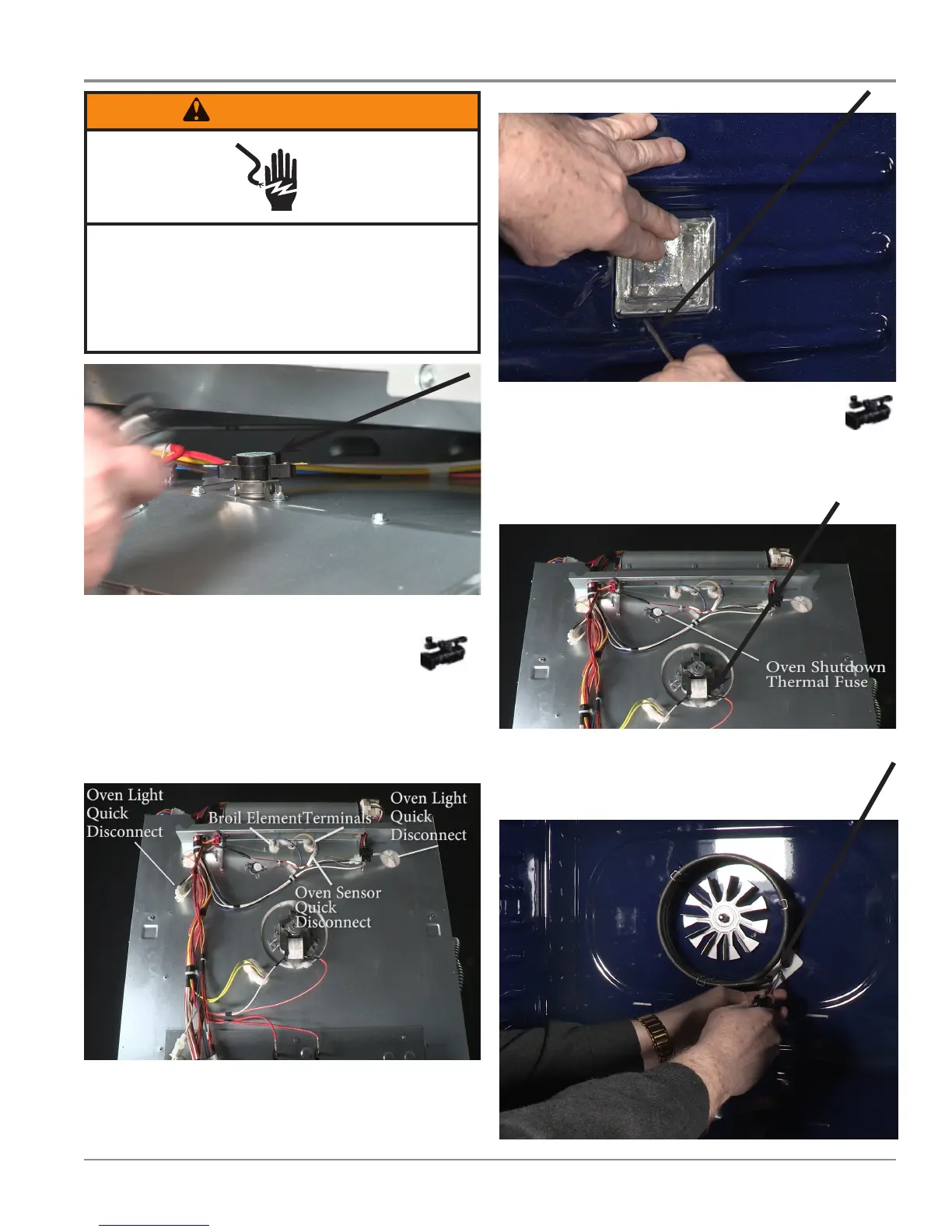

REMOVING THE OVEN LIGHT ASSEMBLY
(ONE ON EACH SIDE OF OVEN)
Remove the electrical quick disconnect plug from
the back.
REMOVING THE CONVECTION FAN
MOTOR
From the back of the oven disconnect the two
electrical connecons to the fan motor.
From the inside of the oven, remove the
convecon cover at the back of the oven cavity.
Remove the fan blade from the convecon
motor sha.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
From the inside of the oven cavity unsnap the light
lens and light bulb and snap the light assemble
out and pull (sh) the wire harness from the
back.


