KitchenAid KVUC600KSS - Back View; Cabinet Dimensions

DIMENSIONS
RANGE HOOD - 30" (76.2 CM) AND 36" (91.4 CM)
2 of 12

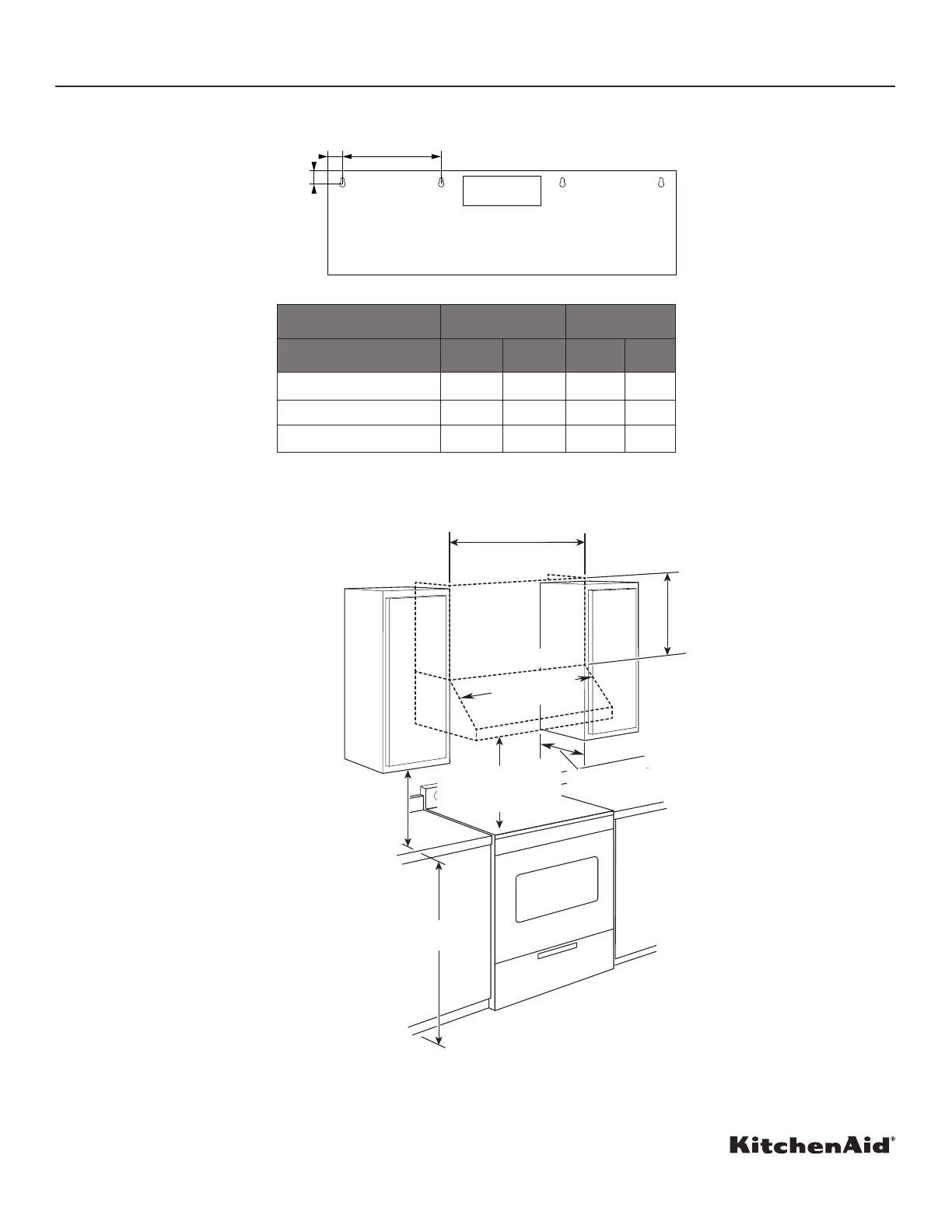

CABINET DIMENSIONS
13" (33.0 cm )
18" (45.7 cm) minimum
clearance upper
cabinet to countertop
36" (91.4 cm)
countertop height
30" (76.2 cm) or 36" (91.4 cm)
cabinet opening width
(If installed between cabinets)
X
Bottom of range hood
to cooking surface
Full Width
Chimney Cover (if used)
Range hood
Minimum cabinet
opening width
12" (30.5 cm)
IMPORTANT:
Minimum distance “X” : 24" (61.0 cm) to electric cooking surface and 30" (76.2 cm) to gas cooking surface.
Suggested maximum distance “X” : 36" (91.4 cm).
BACK VIEW
PRODUCT DIMENSIONS
BA
C
Back view 30" (76.2 cm) 36" (91.4 cm)
Unit of Measurement in cm in cm
A 1
1
⁄
8
2.9 1
1
⁄
8
2.9
B 7 17.8 9
7
⁄
8
25
C 5/8 1.6 5/8 1.6
