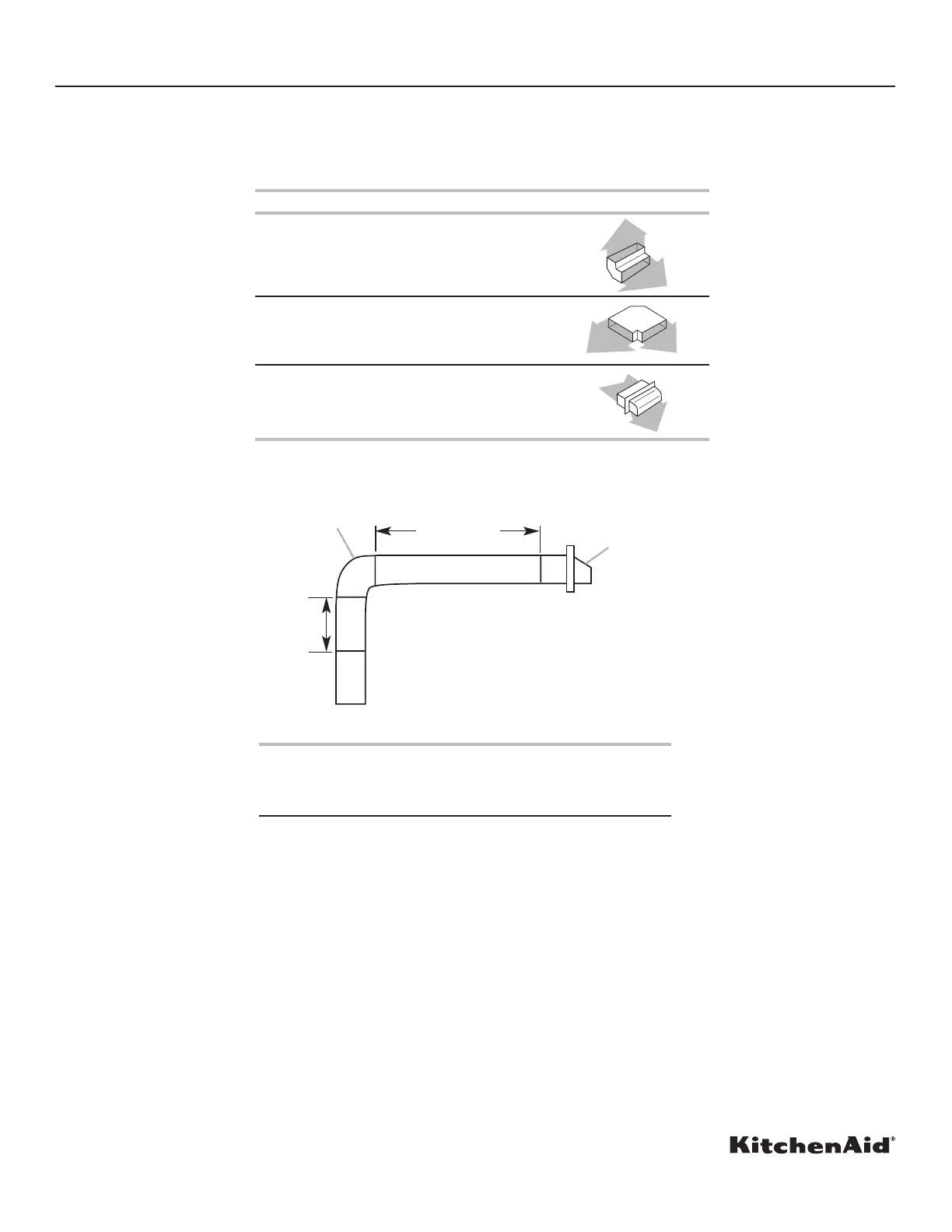

Calculating Vent System Length
To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.
3¹⁄
4
" x 10" (8.3 cm x 25.4 cm) Vent System
Vent Piece
3¹⁄
4
" x 10" (8.3 cm x 25.4 cm)
90° elbow
5.0 ft (1.5 m)
3
¹⁄
4
" x 10" (8.3 cm x 25.4 cm)
at elbow
12.0 ft (3.7 m)
3
¹⁄
4
" x 10" (8.3 cm x 25.4 cm)
wall cap
0.0 ft (0.0 m)
Example vent system
Maximum Recommended Length = 35 ft (10.7 m)
1 - 90° elbow
= 5.0 ft (1.5 m)
8 ft (2.4 m) straight = 8.0 ft (2.4 m)
1 - wall cap = 0.0 ft (0.0 m)
Length of 3
¹⁄
4
" x 10" (8.3 cm x 25.4 cm)
system
= 13.0 ft (3.9 m)
Wall cap
3
¹⁄₄
" x 10"
(8.3 x 25.4 cm)
elbow
2 ft
(0.6 m)
6 ft (1.8 m)
Equivalent Length
