4. Using a T20
®
Torx
®
driver, remove the (5) or (6) screws
holding the rear heat lamp panel, (2) in the sides and (3) or
(4) in the back. Set the heat lamp panel and screws aside.
5. Mount the range hood. See the “Install Range Hood” section.
Install Range Hood Internal Blower Motor
1. Using 2 or more people, install the range hood blower
motor assembly inside the range hood canopy with the
wiring connection to the left for the single motor system
and to the front or top for the dual motor system.
Single Blower Motor Assembly:
Dual Blower Motor Assembly:
2. Run the power supply wires and connector from the
range hood through the hole in the right end of the
motor mounting plate.
3. With the blower motor assembly mounting plate parallel
to the bottom of the range hood, slide it up into the cavity
above the range hood canopy.
4. Align mounting holes in motor mounting plate with
motor mounting clip nuts, and install 6 x 16 mm screws
and 6.4 mm lock washers (quantity 2 for single motor;
quantity 5 for dual motor). After all the screws have been
installed, tighten the screws
A
BA

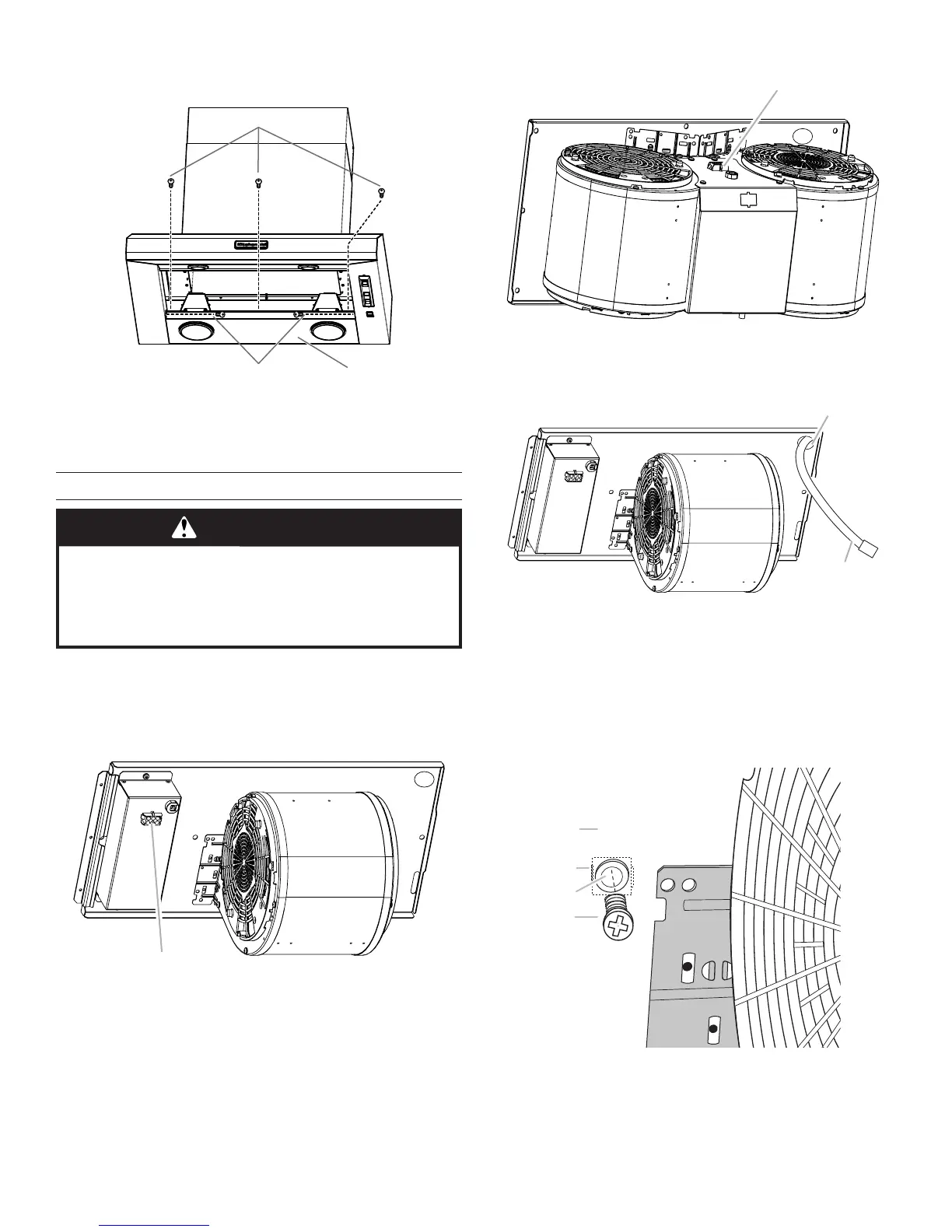

A. Screws - panel mounting (5) for 36" (91.4 cm) models,
(6) for 48" (121.9 cm) models
B. Panel - Heat lamp
WARNING
Excessive Weight Hazard
Use two or more people to move and install
range hood.
Failure to do so can result in back or other injury.
A. Wiring connection
A. Wiring connection
B
A. Motor mounting plate hole
B. Power supply wires and connector
A
B
C
D
A. Screw with lock washer
B. Mounting hole in motor mounting plate
C. Clip nut (6 mm)
D. Motor mounting plate
