Kitz FBS - Mounting of Actuators on Valves; Dimensions and Mass

Document No.:KE-4011-03 Page: 2/27
4. Mounting of Actuators on Valves
KITZ FBS pneumatic valve actuator is mounted on KITZ smaller size ball valves directly with male
shape driving shaft.

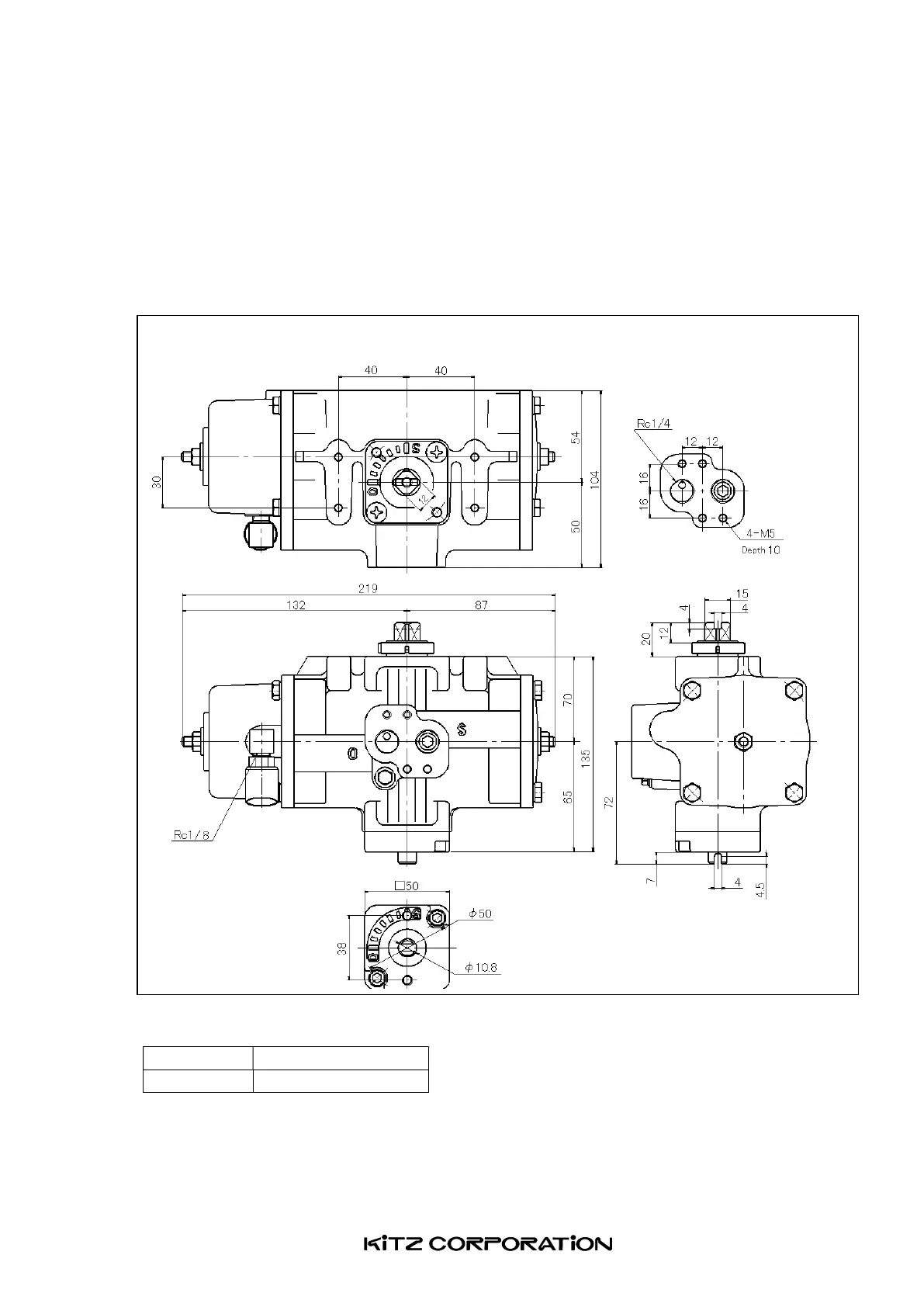

5. Dimensions and Mass
Mass
FBS-1 2.1kg
Unit: mm
Air supply port
Screw size of
breathing port elbow
