Document No.:KE-4011-03 Page: 9/27
15. Mounting KITZ Optional Accessories on Actuators
KITZ FBS pneumatic valve actuator employs NAMUR dimensions for an accessory mounting pad on the
top. Any NAMUR dimensioned solenoid valve can be directly mounted on the actuator without tubing.
For detailed information on mounting KITZ optional accessories on FBS actuator, refer to the operating
instructions provided for each optional accessory.

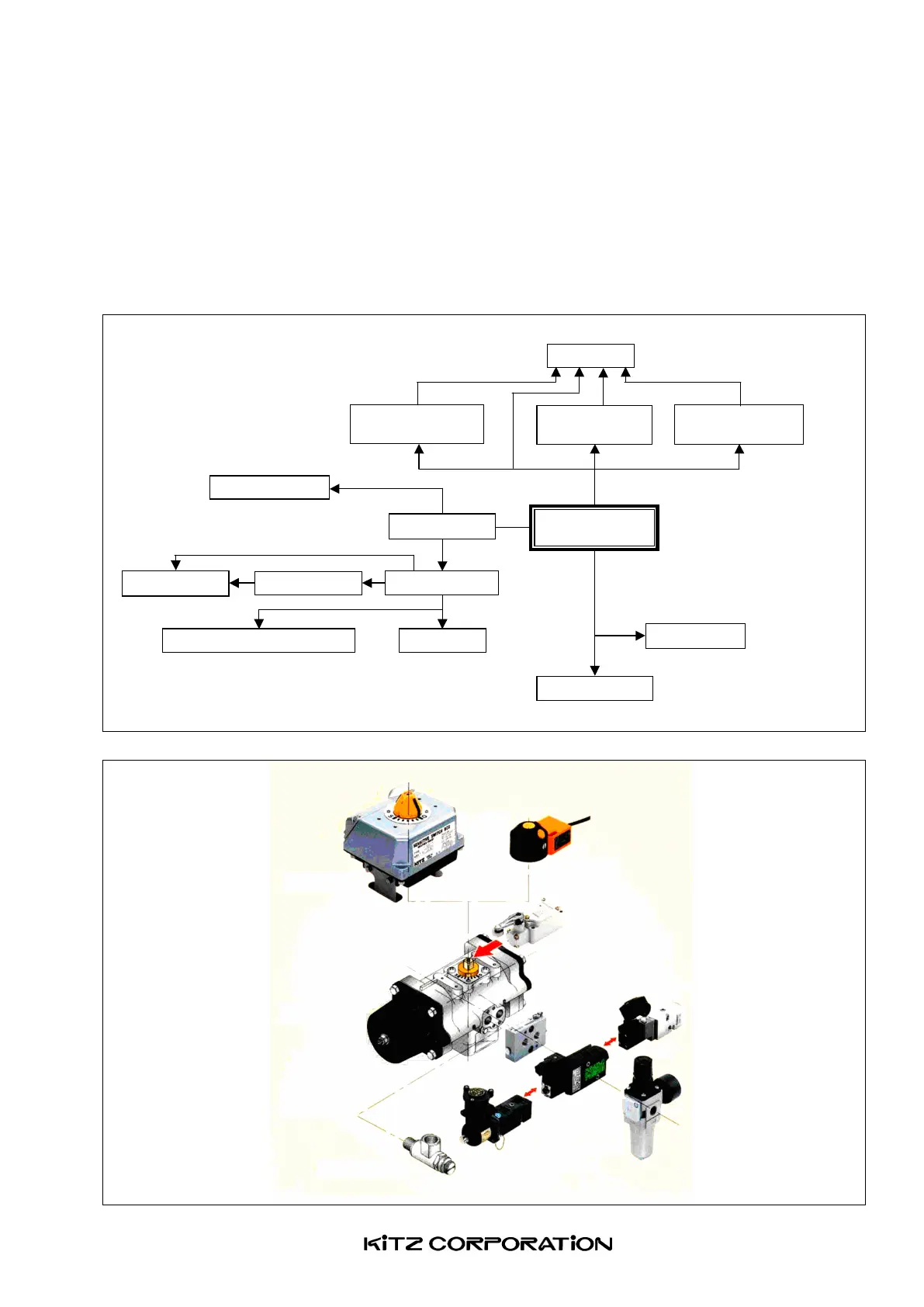

◆ Mounting diagram of KITZ optional accessories
Positioner
Switch box
Explosion-proof
limit switch
Potentio-meter box
Angle adjuster
Ball valve
Speed controller
FBS actuator
By-pass valve
By-pass valve
Solenoid valve
Filter regulator
Air exhaust reducing silencer Silencer
◆ Mounting view of KITZ optional accessories
Proximity Switch
Mechanical Limit Switch
By-pass Valve
Air-filter Regulator
Solenoid Valves
Speed Controller
Switch Box
