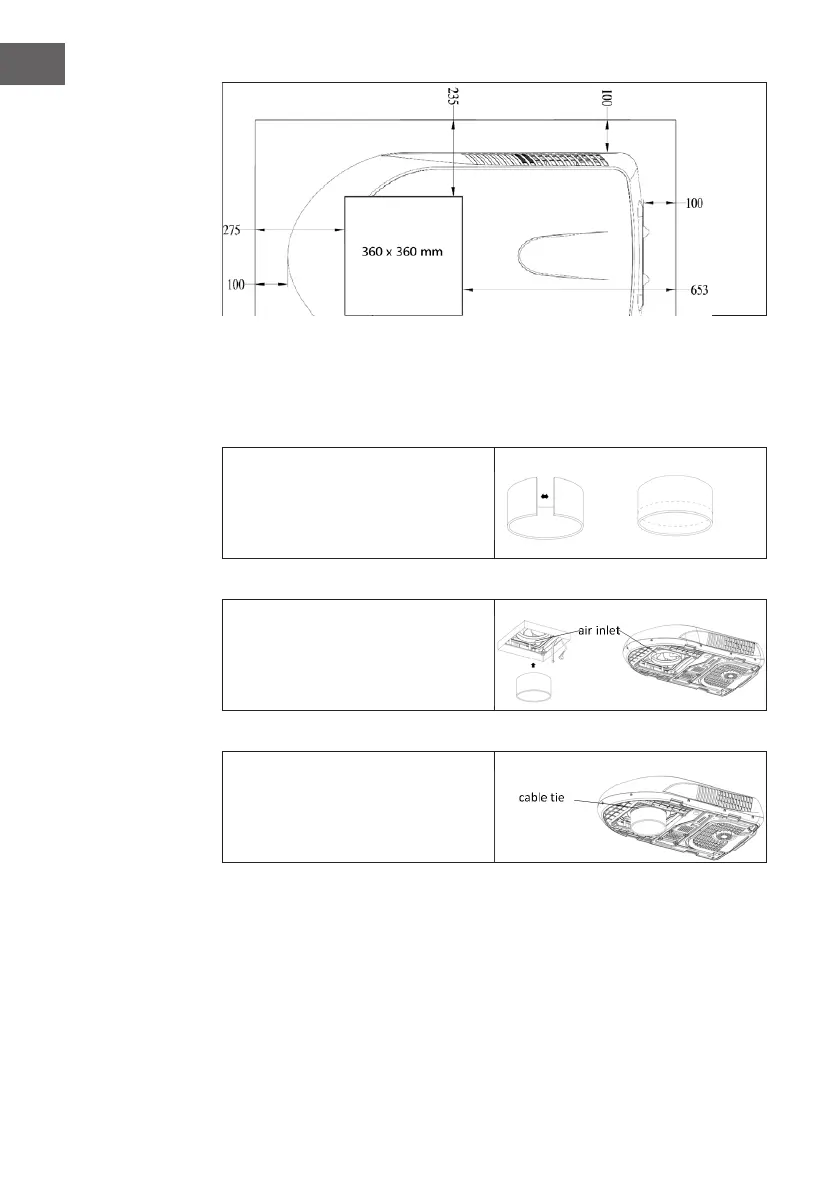

Figure 7
Indoor Unit Installation
1. Fix the air pipe connection foam (Fig. 8).
Tear off the air pipe connection foam
adhesive rstly, which is used for
maximum 65mm roof thickness.
Clip it to an appropriate size if your
roof thickness is less than 65mm.
Figure 8
Stick the foam at the air inlet, which is
xed into a circle.
Figure 9
Firm the foam with a cable tie at the
air inlet.
Figure 10
air inlet
cable tie
