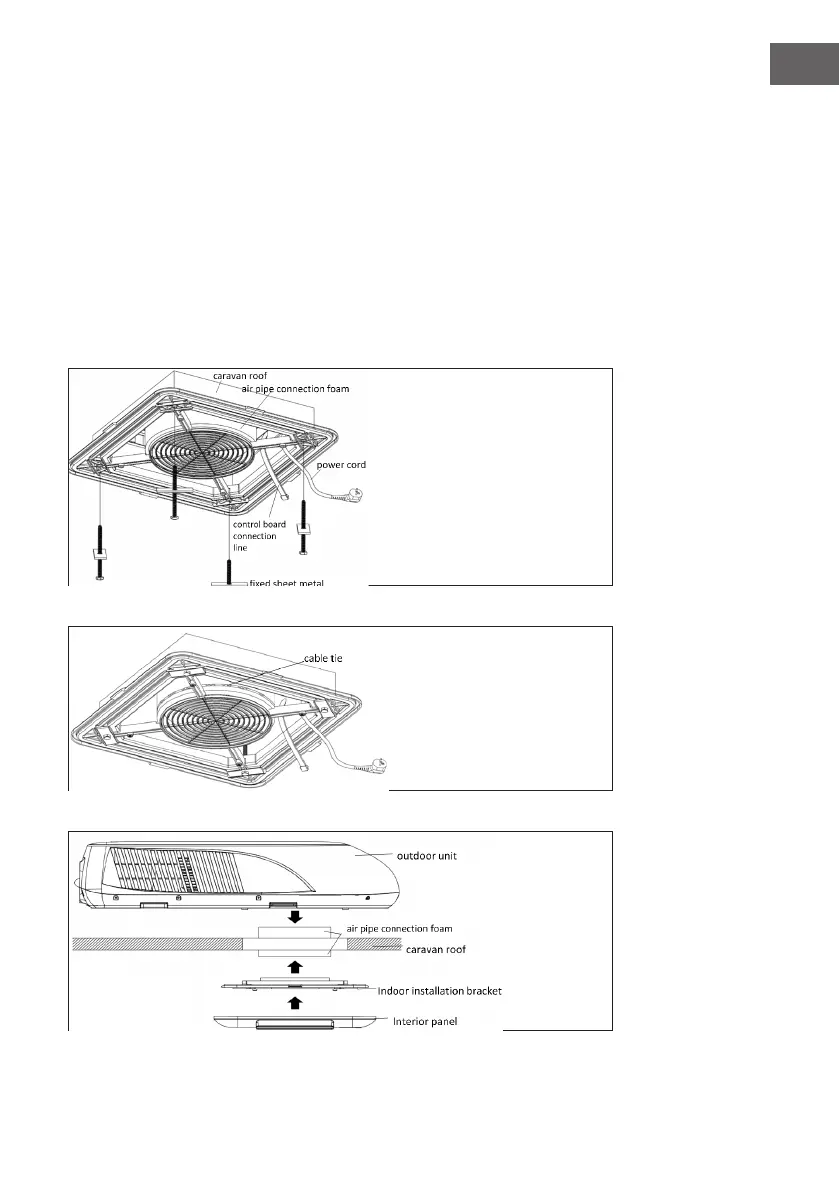

2. Indoor installation bracket (Fig. 11, Fig. 12, Fig. 13)
• Assemble the M8 bolts and xed sheet metals in order.
• Lift up the indoor installation bracket and face it to the machine.
• Ensure the four screw holes at the bottom of the outdoor unit being
consistent with the holes of the indoor installation bracket.
• Insert M8 bolts and xed sheet metals into the 4 corner holes.
• Align the M8 screw with the threaded recess on the bottom base of the
outdoor unit and screw in.
• Before tightening the screw, screw in 1-2 threads by hand rst, then tighten
the 4 screws evenly by tool. The torque is 12–14 Nm. (No more than 14 Nm)
• The indoor installation bracket must be sleeved into the air duct foam.
• Fix the foam with another cable tie at the installation bracket.
Figure 11
Figure 12
Figure 13
