Klarstein PURELINE - Technical Drawings

26
EN
Electric principle diagram
TECHNICAL DRAWINGS

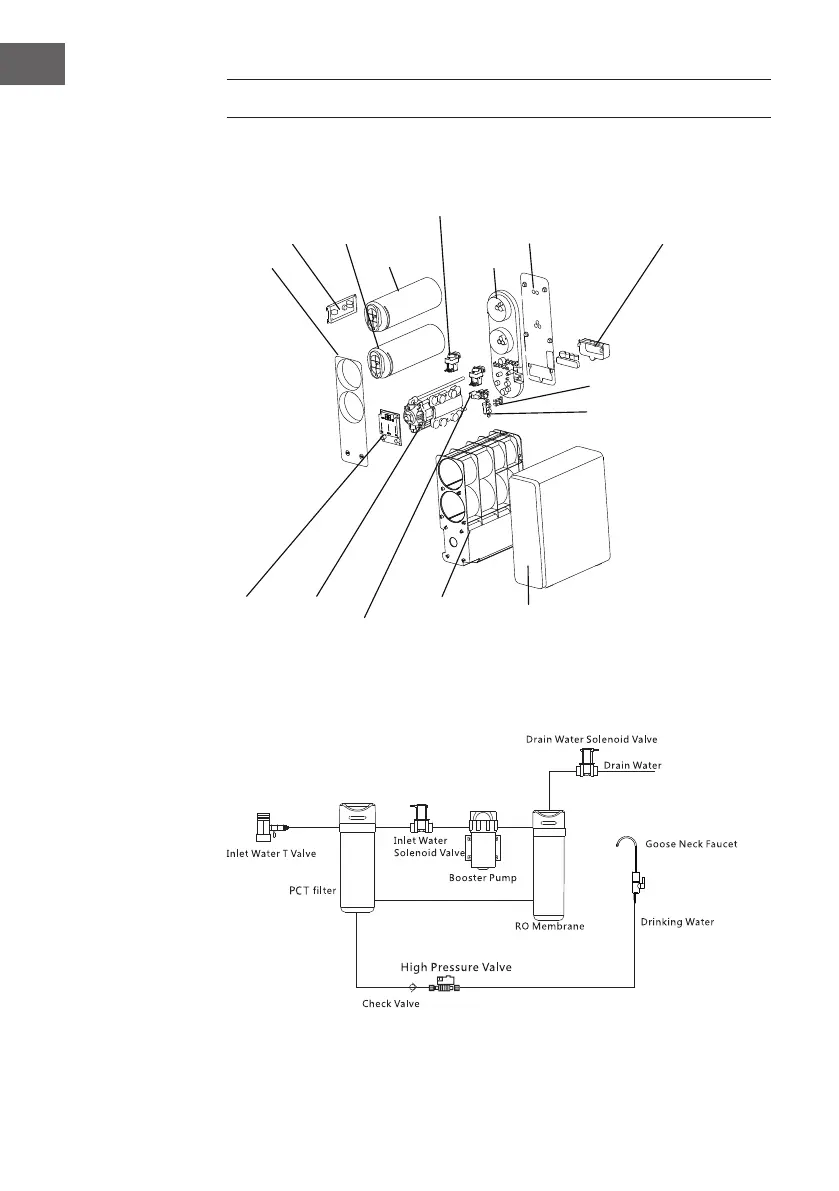

Explosion drawing of parts
1 Panel
2 Control board
3 PCT lter
4 RO membrane
5 Inlet water solenoid
valve
6 Integrated water
board
7 Bottom base
8 Fittings board cover
9 Power supply base
10 Check valve
11 Outer frame
12 Frame body
13 High pressure valve
14 Booster pump
15 Display
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
