Klein Tools CL220 User Manual

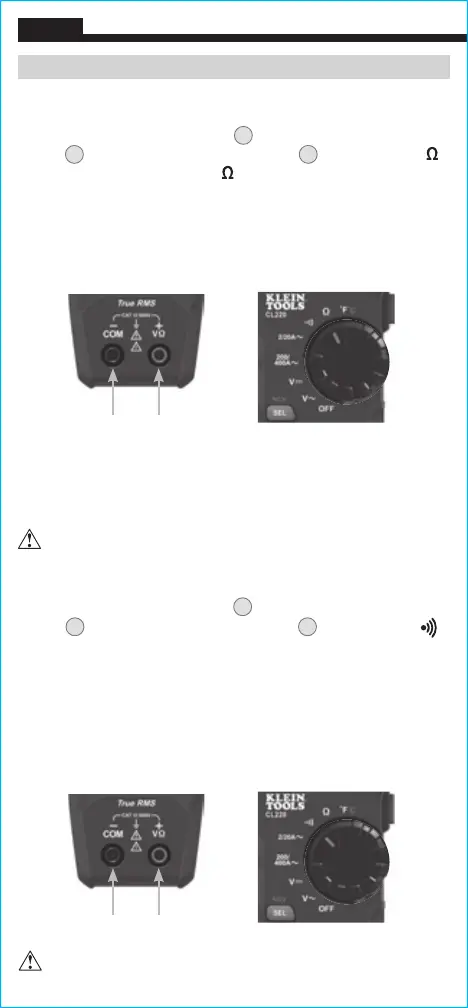

10
ENGLISH
OPERATING INSTRUCTIONS
RESISTANCE MEASUREMENTS
1. Insert RED test lead into VΩ jack
5
, and BLACK test lead into COM
jack
4
, and rotate function selector switch
2
to the Resistance
setting. The resistance symbol will appear on the display.
2. Remove power from circuit.
3. Measure resistance by connecting test leads to circuit. The
meter will auto-range to display the measurement in the most
appropriate range.
NOTE: When in a Resistance setting and the test leads are open
(not connected across a resistor), or when a failed resistor is under
test, the display will indicate O.L. This is normal.
DO NOT attempt to measure resistance on a live circuit.
CONTINUITY
1. Insert RED test lead into VΩ jack
5
and BLACK test lead into COM
jack
4
, and rotate function selector switch
2
to the Continuity
setting.
2. Remove power from circuit.
3. Test for continuity by connecting conductor or circuit with test
leads. If resistance is measured less than 10Ω, an audible signal
will sound and display will show a resistance value indicating
continuity. If circuit is open, display will show "OL".
DO NOT attempt to measure continuity on a live circuit.
Red leadBlack lead
Red leadBlack lead

Klein Tools CL220 Specifications

General

Data hold	Yes
Product type	Digital multimeter
Product color	Black, Orange
AC current range	0 - 400 A
AC voltage range	0 - 600 V
DC voltage range	600 V
Housing material	Acrylonitrile butadiene styrene (ABS)
Measuring category	CAT III 600V
Placement supported	Handheld multimeter
Resistance resolution	20 Ω
Temperature measurement range	-40 - 1000 °C
Battery type	AAA
Power source	Battery
Battery technology	Alkaline
Number of batteries supported	3

Weight and Dimensions

Depth	215 mm
Width	89 mm
Height	38 mm
Weight	314 g
