4
English
PRESENT
A
TION

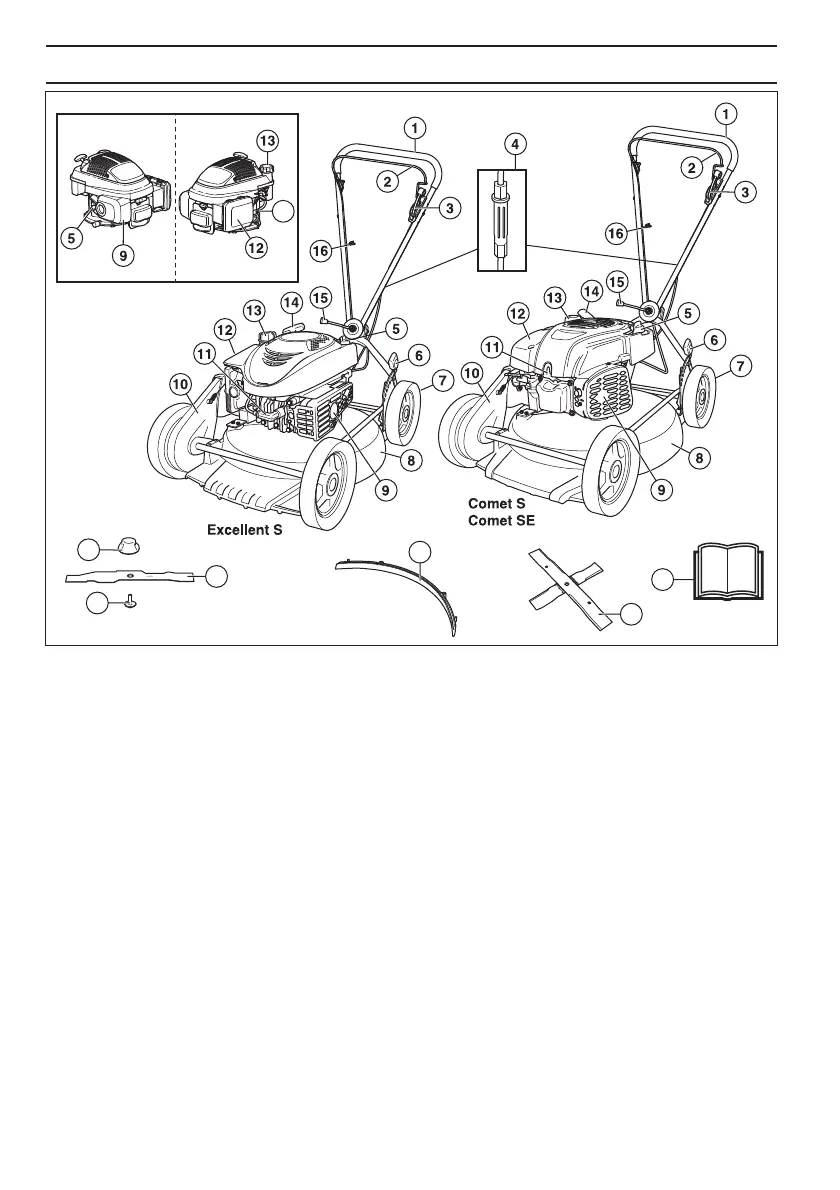

What is what on the la
wn mower - Excellent S, Excellent S H, Comet S, Comet, SE, Comet S H?
Excellent S H
Comet S H
17
18
19
20
21
22
23
1
Handle
2 Engine brake handle
3 Clutch control
4 Adjusting the clutch wire
5 Dipstick/oil filler
6 Cutting height control
7 Wheel cleaner
8 Cutting cover
9 Muffler
10 Gear housing
11 Spark plug
12 Air filter
13 Fuel tank
14 Starter handle
15 Angle adjustment handle
16 Bracket, starter handle
17 Fuel tap
18 Cutter bracket
19 Cutter bolt
20 Cutter, Mulcher
21 Mulcher insert
22 Cutter, Cross cut
23 Operator
s manual
