Klipsch POWERGATE - Back Panel Connections; Audio Input;Output Ports; Speaker and Subwoofer Outputs; Network and USB Ports

7
BACK PANEL
PANNEAU ARRIÈRE • PANEL TRASERO • RÜCKSEITE • PANNELLO POSTERIORE • PAINEL TRASEIRO • 后面板
100-200V/200-240V~
50/60Hz, 200W
ANALOG OUT
OPTICAL IN
WiFi
SETUP
USB AUDIO SERVICE INOUT
ANALOG IN
LL RR
PHONO
LINE
LSUB
AUX
GNDR

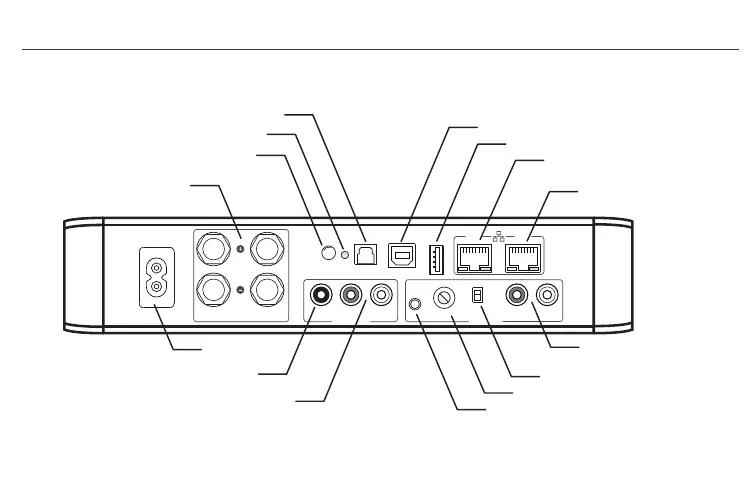

Power Input
WiFi Setup Button
WiFi Setup LED
Optical Input
USB Audio Input
USB Service Port
Ethernet Output - Optional
(Connect to PC)
Ethernet Input - Optional
(Connect to Router)
Speaker Outputs (Right & Left)
Subwoofer Output
Analog Output (Right & Left)
Auxiliary Input
Phono/Line Switch
Phono/Line Input
(Right & Left)
Ground Screw Terminal
