5
ENGLISH
The thermo stove is delivered with the following equipment:
 USE, INSTALLATION AND MAINTENANCE GUIDE
 1 POWER SUPPLY CABLE;
 1 LARGE STRAIGHT BRUSH FOR CLEANING THE FLUE PIPE;
 1 INFRA-RED REMOTE CONTROL.
This manual is an integral part of the machine which, on the event of transfer of the thermo stove, must be given to the new purchaser.

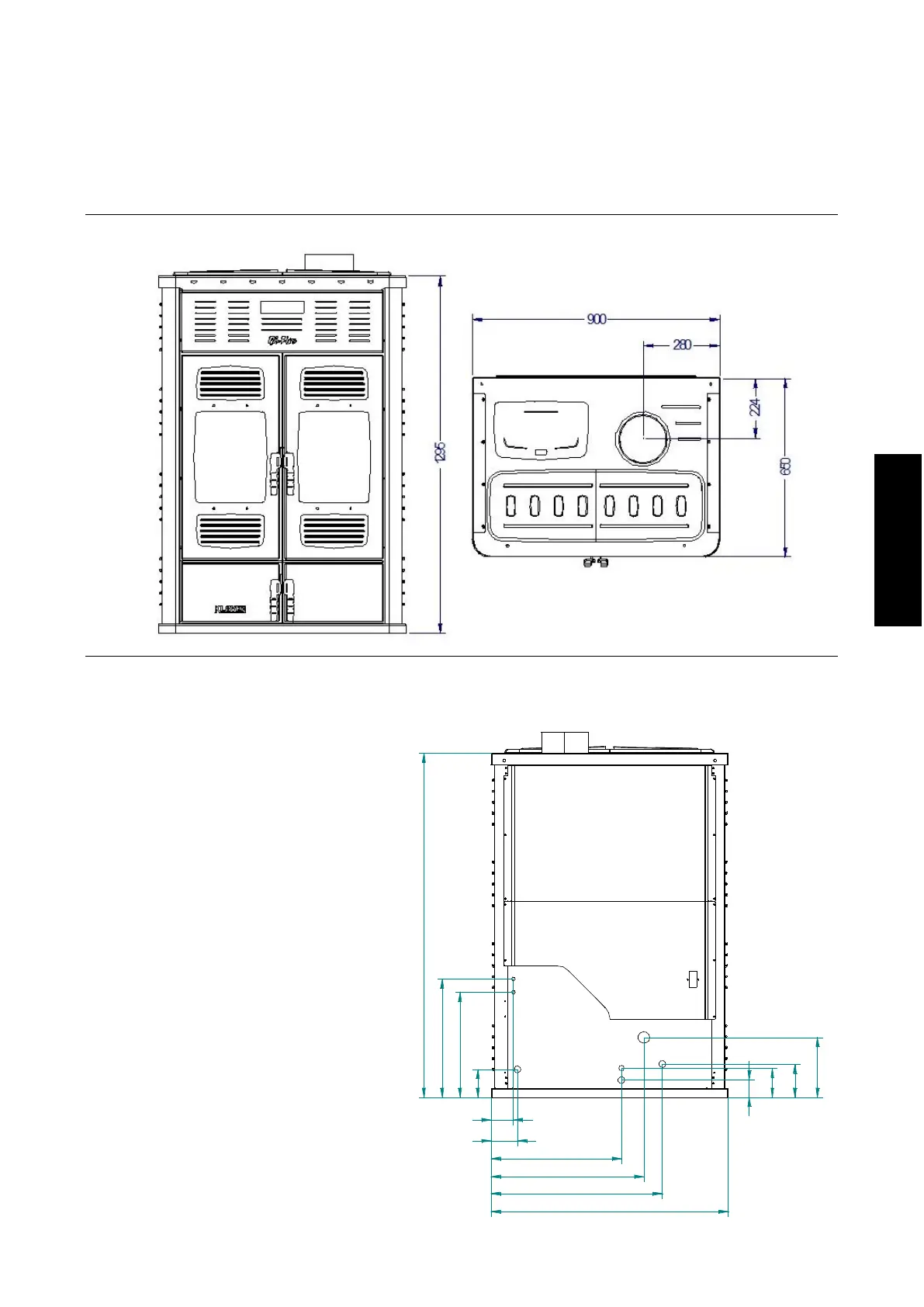

Clearance
Connections data sheet
R
M
F
C
X
A
S
VISTA
POSTERIORE
85
100
495
580
650
900
65
110
125
225
105
395
445
1295
REAR
VIEW
M = Ø 3/4" F SYSTEM DELIVERY
R = Ø 3/4" M SYSTEM RETURN
C = Ø 14mm DOMESTIC HOT WATER OUTLET (on
prepared models only)
F = Ø 14 mm DOMESTIC COLD WATER INLET
S = Ø 3/4" M BOILING DISCHARGE
A = Ø 43 mm AIR SUCTION DEVICE (pellet side)
X = Ø 1/2” F DRAIN SAFETY VALVE
