DANGER
DO NOT STAND BETWEEN TRACTOR AND IMPLEMENT DURING HITCHING.

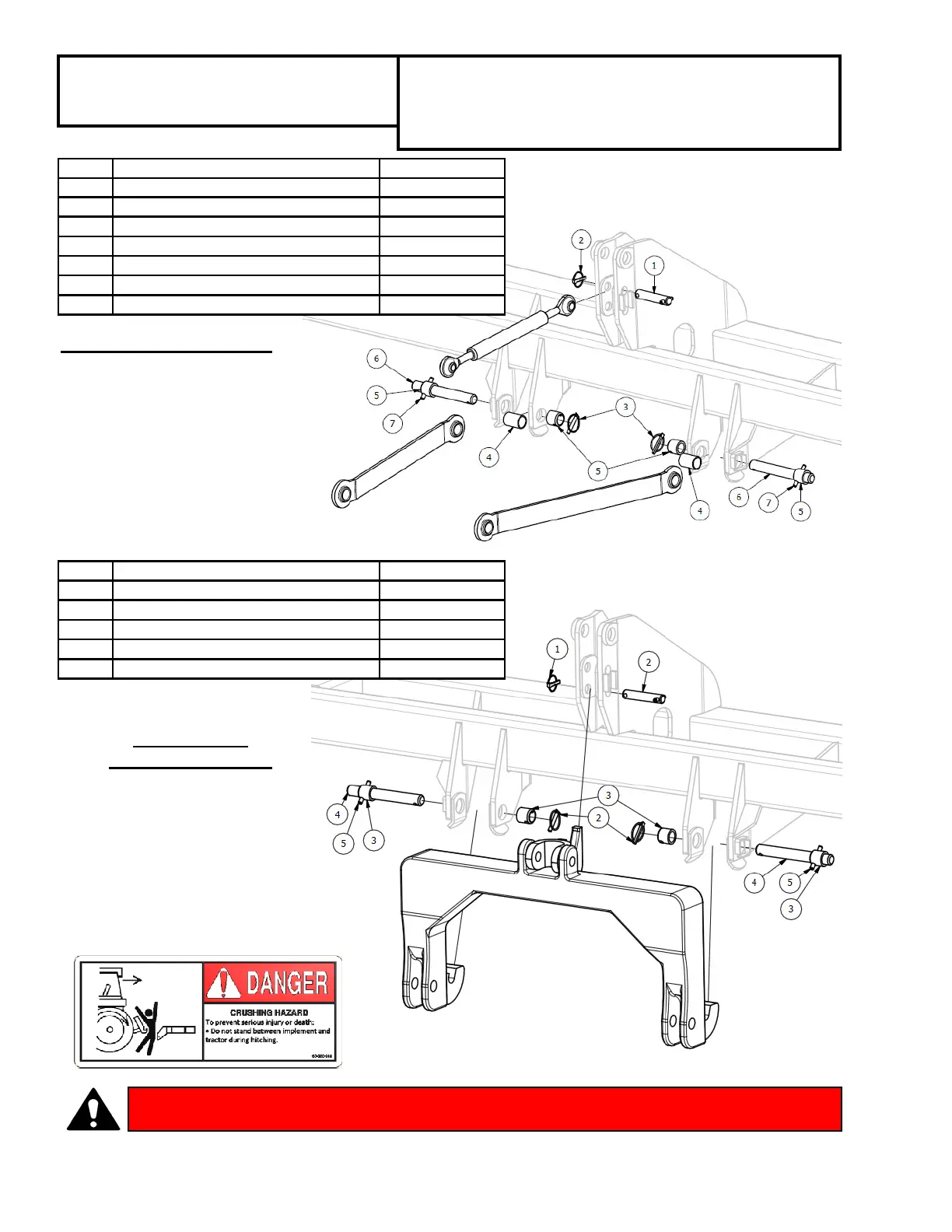

CAT III 3-POINT HITCH
• Top link pin in center
mast hole
• Lower links against out-
side of lower hitch
• Bushings against inside
of lower hitches
CAT III / IIIN
QUICK COUPLER
• QC hooks pin in bottom
mast hole
• QC against outside of
lower hitches
• NQC against inside of
lower hitches
ITEM DESCRIPTION PART NUMBER
1 PIN, MAST 06-081-018
3 KLIK PIN, 7/16 X 2 3/4 16-050-094
4 SPACER, CAT III 05-024-010
5 BUSHING, CAT III LOWER HITCH 16-024-259
6 PIN, LOWER HITCH CAT III 16-026-102
7 ROLL PIN, 1/2 X 3 1/2 PLN 12-050-001
2 KLIK PIN, 7/16 X 2 03-050-094
ITEM DESCRIPTION PART NUMBER
1 KLIK PIN, 7/16 X 2 03-050-094
2 KLIK PIN, 7/16 X 2 3/4 16-050-094
3 BUSHING, CAT III LOWER HITCH 16-024-259
4 PIN, LOWER HITCH CAT III 16-026-102
5 ROLL PIN, 1/2 X 3 1/2 PLN 12-050-001
6 ROW(36”&38”) RIGID
6 ROW(40”)/8 ROW(30”) RIGID
8 ROW (46” & 48”) STACKFOLD
12 ROW(30”,36”&38”) STACKFOLD
12 ROW(40”)/16 ROW(30”) STACKFOLD
