RIPPER TOOL OPTIONS:
A TRIPPED SHANK IS UNDER EXTREME
FORCE. STAY CLEAR OF A TRIPPED
SHANK! FAILURE TO COMPLY WILL
RESULT IN SERIOUS INJURY OR DEATH.
DANGER
The 6800 Series Ripper Bedder comes equipped with a choice of the Reset on the Go Ripper Shank or
the Toggle Trip Shank. Either of these will be pre-mounted to the bar when the unit arrives. Verify the
pre-mount location of all the shanks by using the “Overhead Layout” portion of this section. It may be
necessary to mount some of the wear items associated with these ripper shanks using the following:
For the KMC Ripper Points use (1) 3/8 x 1 1/4” long roll pins to secure in place on each shank as
shown. For KMC Shank Wear Shins use (3) 5/16 x 1 3/8” long roll pins to secure to each shank as
shown. Once all items on each shank are in place verify that all hardware is in place and properly
tightened and secured.

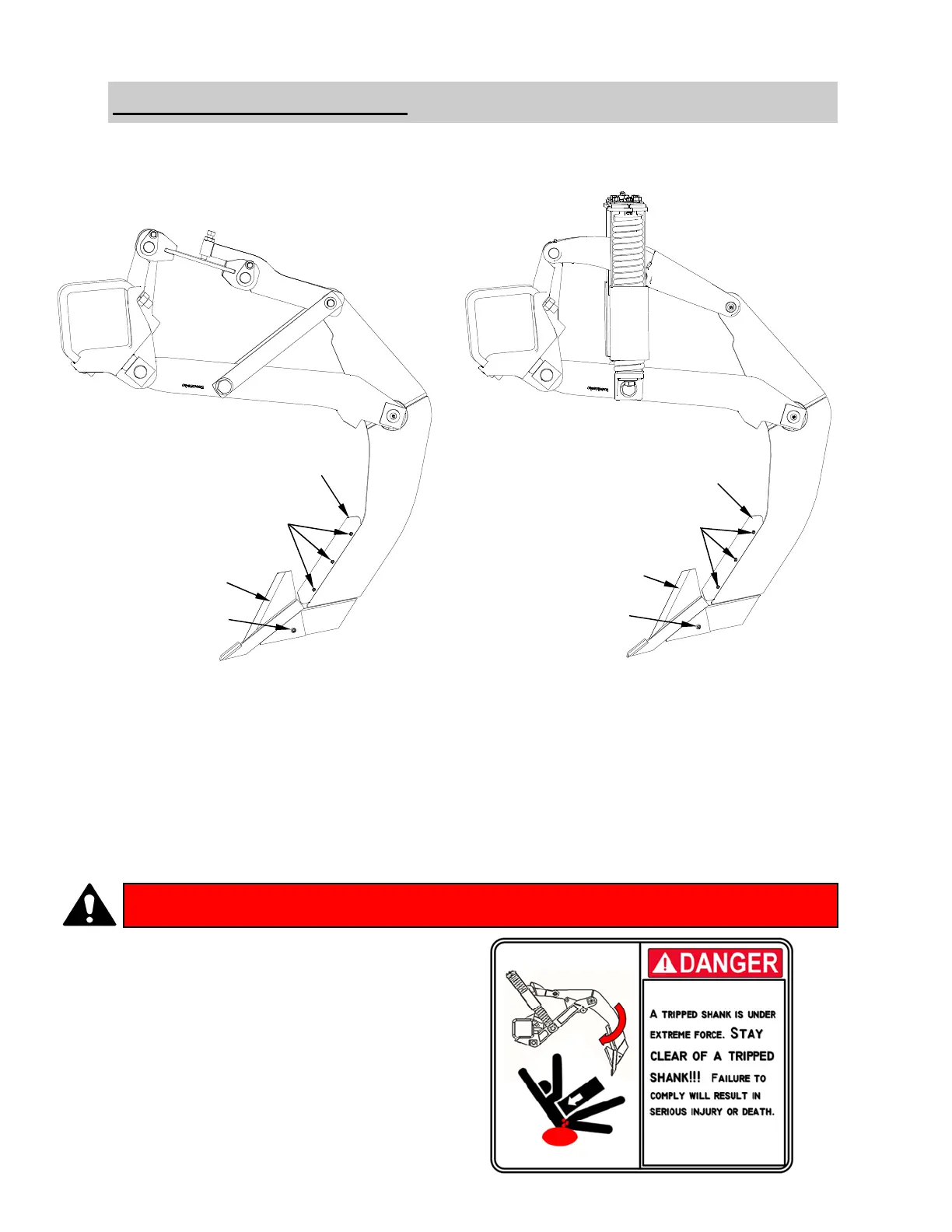

Toggle Trip Shanks
SHANK WEAR SHIN
5/16 X 1 3/8 ROLL PINS
3/8 X 1 1/4 ROLL PIN
RIPPER POINTS
Reset-On-The-Go Shanks
SHANK WEAR SHIN
5/16 X 1 3/8 ROLL PINS
3/8 X 1 1/4 ROLL PIN
RIPPER POINTS
