67

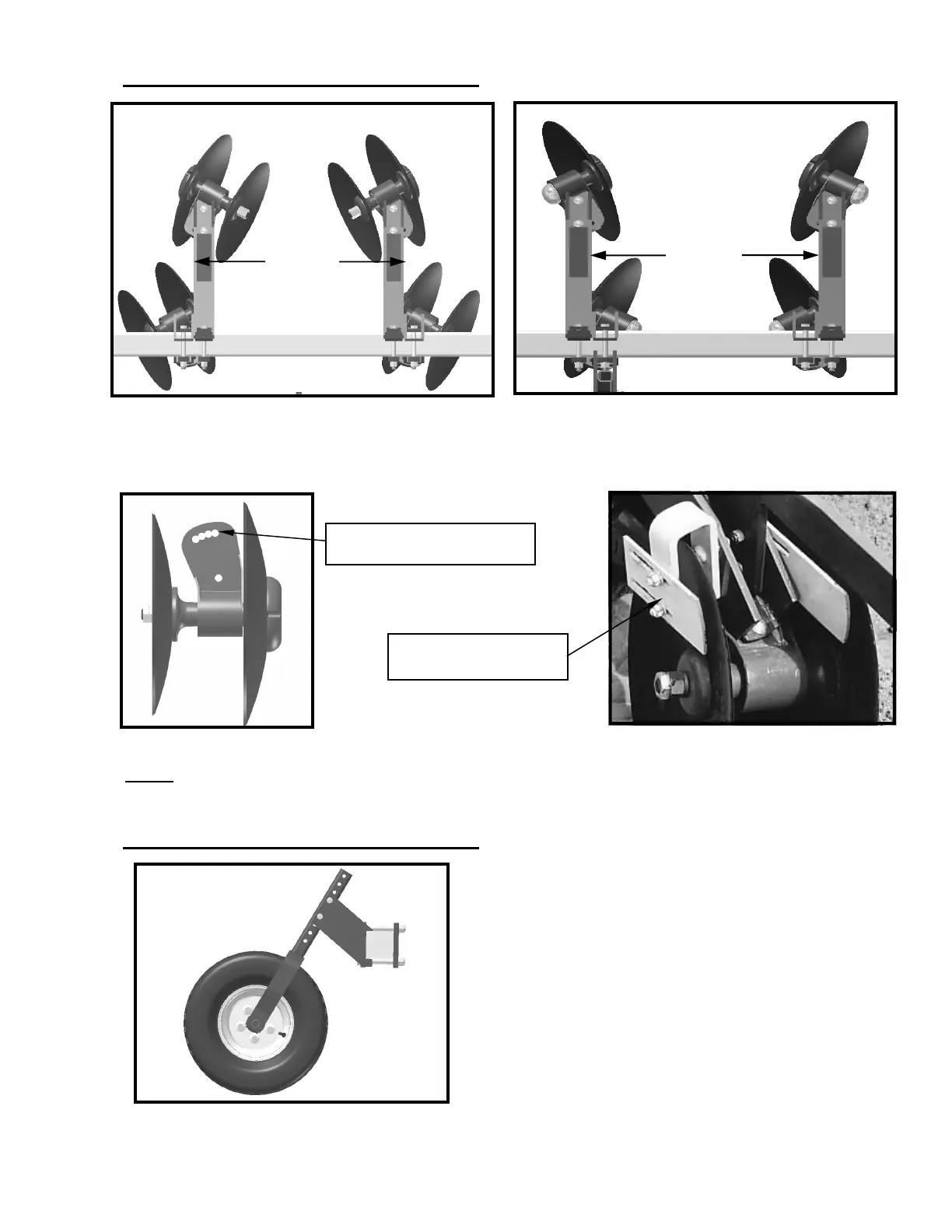

Bedder Gauge Wheel Adjustments
Rear 8 x 10 Press Wheels (06-082-025) are use to
help regulate the Disc Gangs depth of penetra-
tion. Adjustments can be made by removing the
(2) 1/2 x 4 capscrews, lockwashers, and hexnuts,
then sliding the tube up or down to the next set of
hole for the desired setting.
If a small bed is desired, operate disc gangs with the minimum cutting angle; if a flat bed is desired, operate
disc gangs in the middle holes; if a high bed is desired, operate disc gangs with the maximum cutting angle.
NOTE: After operating your Ripper-
Bedder for a short period, check all adjustments and retighten all
bolts.
DESIRED
ROW
WIDTH
Row Spacing Setup of Disc Gangs
DESIRED
ROW
WIDTH
Disc gangs are provided with
4 cutting angle adjustments.
Adjust scrapers for
maximum effectiveness.
