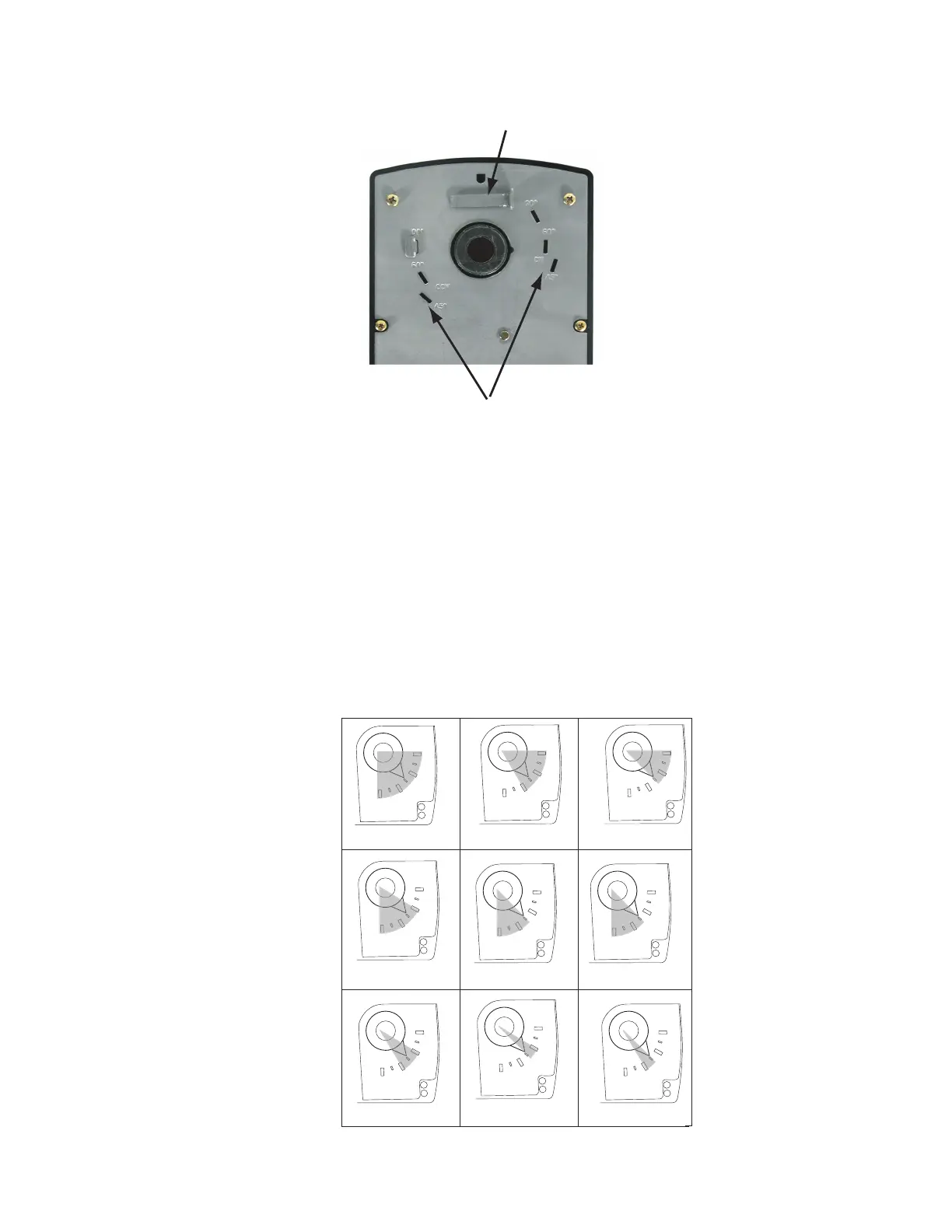

Illustration 5. Controller Stop Selections
Stop Pin
(1 of 2)
Stop Selections
To set the rotational limits:
1. Turn the controller over so you have access to the back.
2. Locate the two stop pins installed in the back of the unit. (You will find one
pin in a CCW setting and one in a CW setting.)
3. Identify the limits you wish to use.
The maximum amount of shaft rotation is 90°. Placing a stop pin in both 90°
slots allows the actuator the full 90° of travel. Placing a stop pin in any other slot
restricts actuator motion in the indicated direction (CW or CCW). Refer to
Illustration 6 for pin placement and travel. The first number represents the CCW
pin and the second the CW pin (CCW/CW).
90/90
60/90
4
5/90
9
0
/
60
90/
4
5
90/
4
5
60/60
45/60
60/45
Illustration 6. Controller Travel and Stop Selections
