KNF N96 - 7 Installation and connection - Location and Protection; Installation Location and Cooling; Protection Against Foreign Objects

Installation and connection Diaphragm pump N96
14 Translation of Original Operating and Installation Instruction, English, KNF 316836-316838 01/20

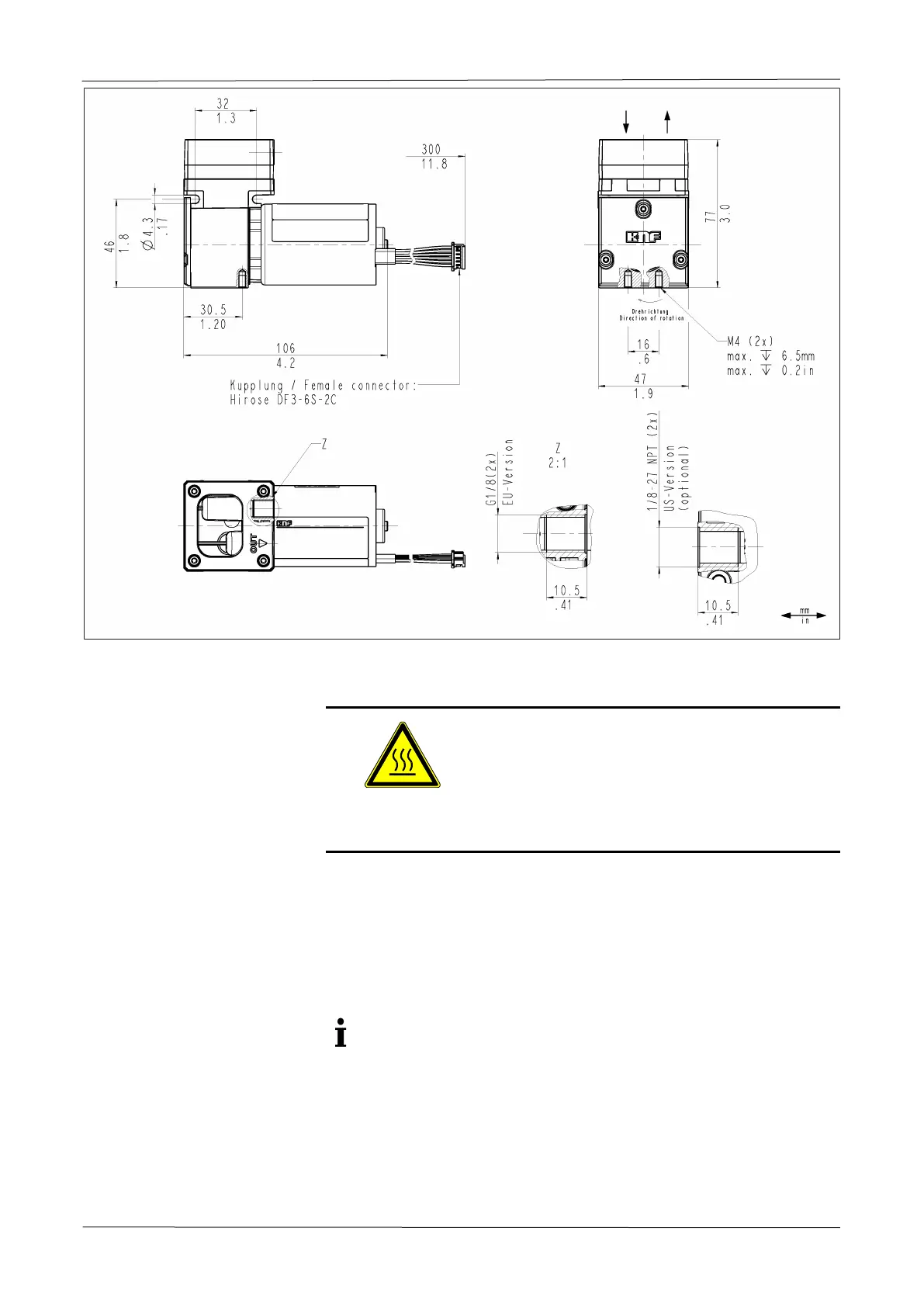

Fig.5 Mounting dimensions pump series N96
Cooling air supply
WARNING
Danger of burning on hot surfaces
Hot surfaces could occur if the pump overheats.
à When installing the pump, make sure that
sufficient cooling air infeed and discharge is
ensured.
Immediate environment of the
hot pump parts
à
During installation, make sure that no combustible or thermally de-
formable objects are positioned in the immediate environment of the
hot pump parts (head, motor).
Installation location
à
Make sure that the installation location is dry and that the pump is pro-
tected against rain, splash water, gushing water, dripping water and
other contaminants.
à
Make sure that the installation location is accessible for service.
The IP protection class of the pump motor is specified on the type
plate.
à
Mount the pump at the highest point in the system to prevent conden-
sate from collecting in the pump head.
à
Protect the pump from dust.
à
Protect the pump from vibration and impact.
Protection against foreign
objects
à
Protect the pump against contact and the ingress of foreign bodies.
