4 Operation
Separate positions of the blade block are provided for each of the two ap-
plications of the tool.
• Cutting plastic pipes: blade in the middle of the tool
• Cutting sealing sleeves: blade on the outside of the tool

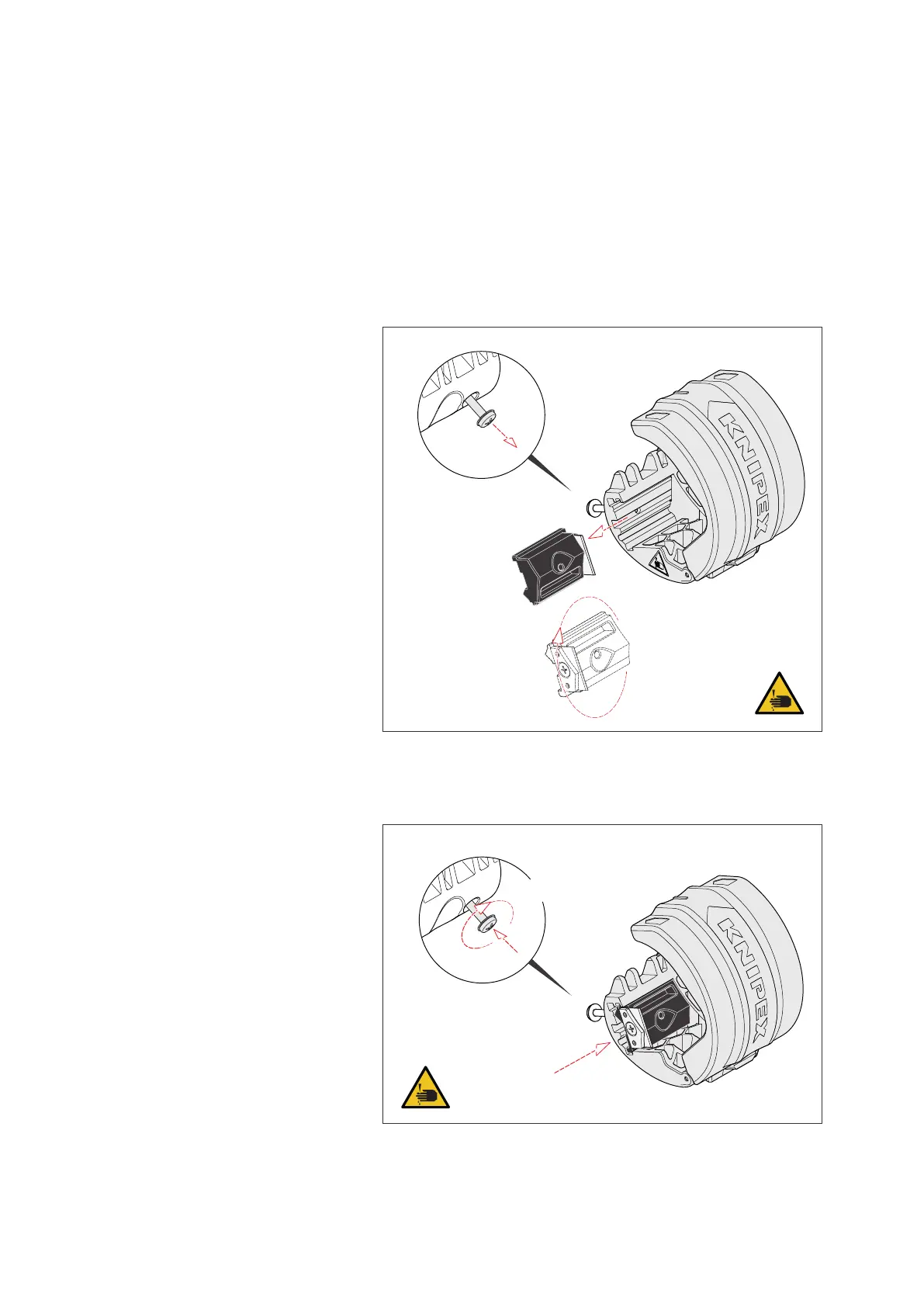

4.1 Changing the position of the blade block
» Loosen the screw to x the blade block with the tool closed.
Note: Do not unscrew the captive screw too far!
» Pull the catch to open the tool and remove the blade block.
Take the blade block out of the guide
» Push the blade block into its guide in the desired position and tighten
the screw with a maximum torque of 1 Nm.
< 1 Nm
1.
2.
Insert the blade block into the guide
