OpEraTiON
9 Status: 13.10.21
4.3 Cutting plastic pipes
When cutting plastic pipes, the blade must be in the centre of the tool.
> 25 mm

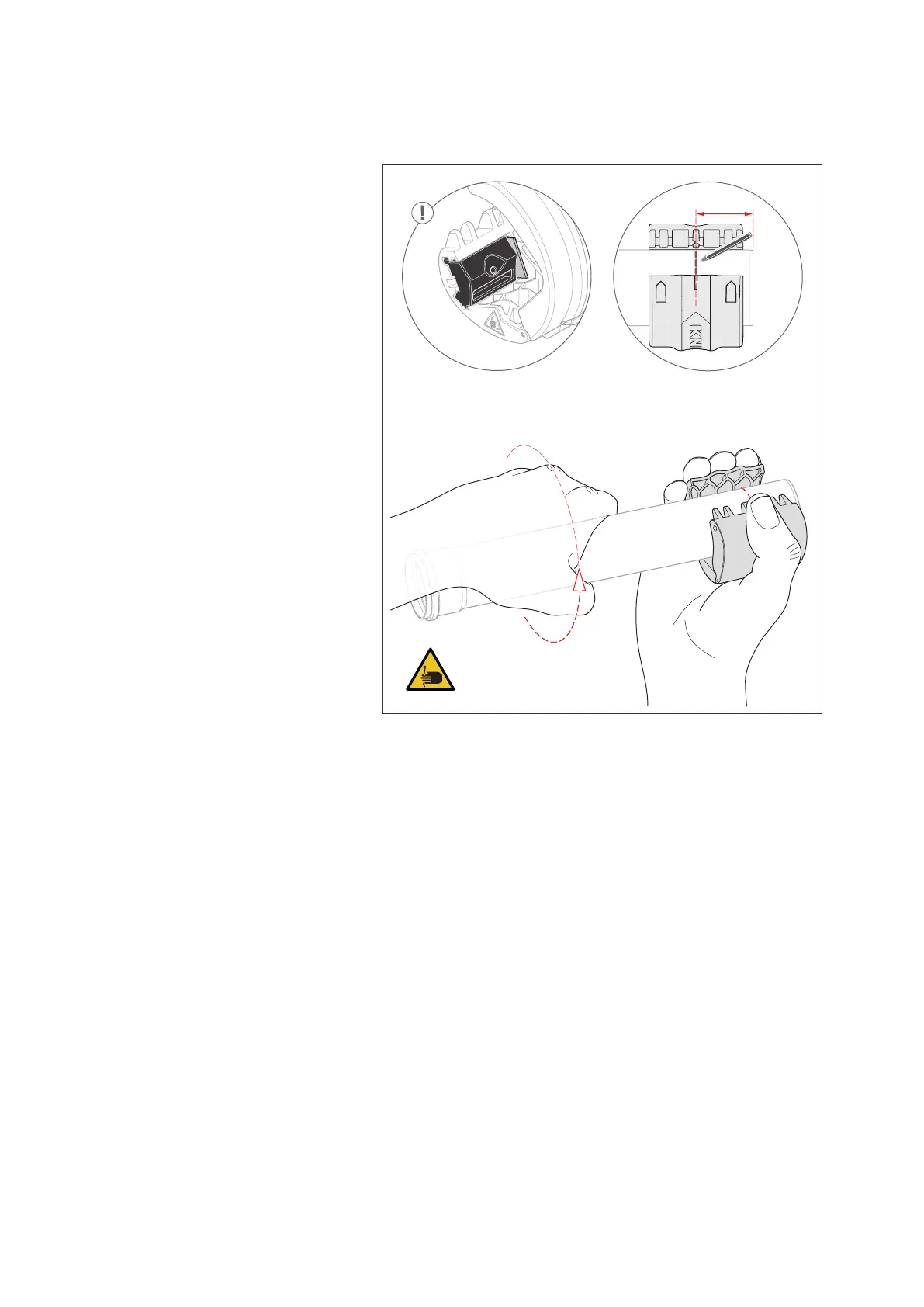

Cutting plastic pipes
» Actuate the catch to open the tool.
» Place the tool around the pipe.
» Dene the cutting line using the markings on the tool. The piece to be
cut must be at least 25 mm long!
» Use the nger recesses and the thumb recess to optimally secure the
tool.
» Turn the pipe at least twice in the direction of rotation (arrow) in the
tool.
» Note: The rst rotation is used for pre-cutting (only light pressure on the
tool). Each subsequent rotation is for cutting through.
The cut-off remains in the tool and does not fall down.
