OpEraTiON
8 Status: 13.10.21

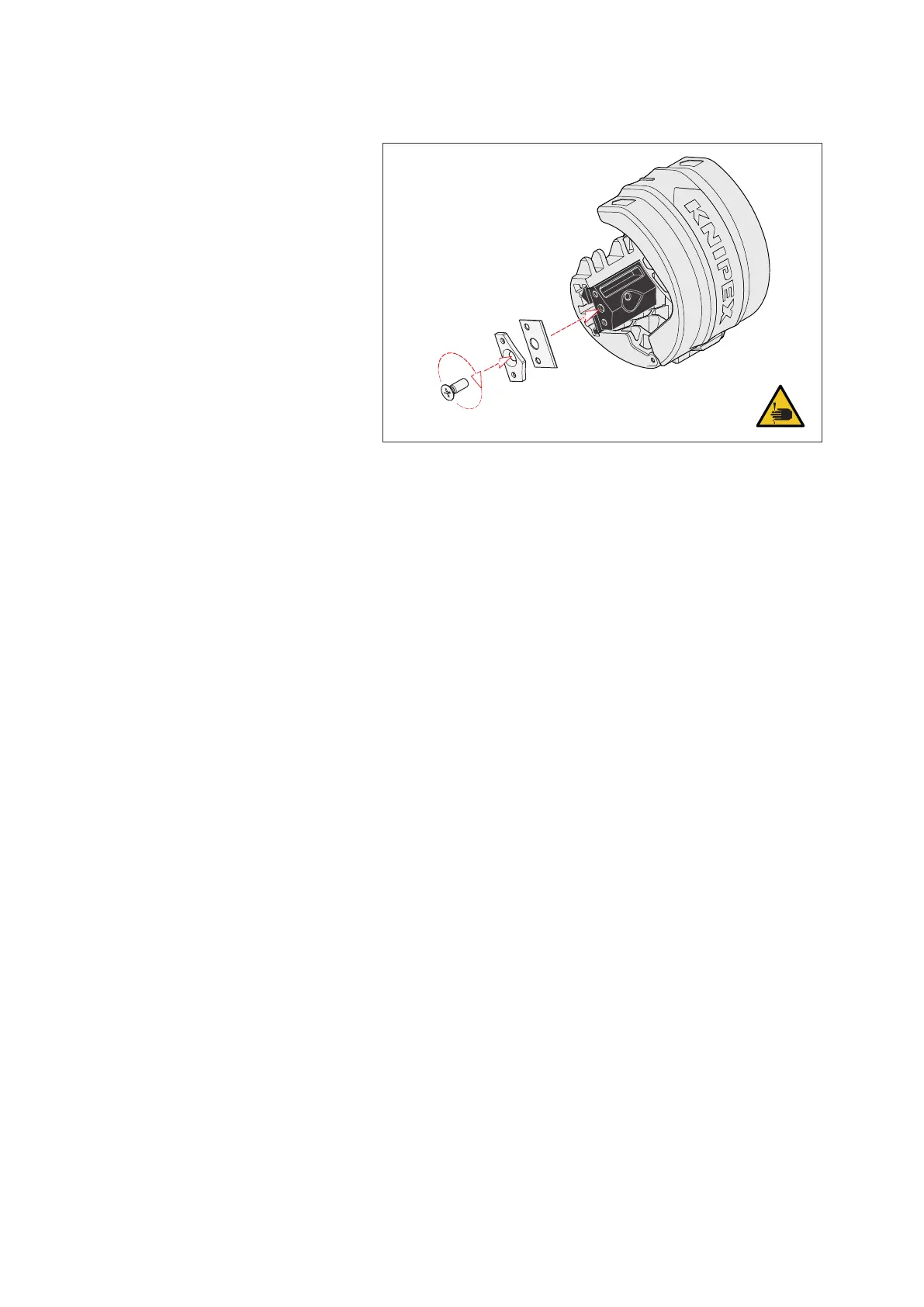

4.2.2 Install a new blade
< 1 Nm
Insert the blade
» Put a new blade in the blade block.
» Place the holding plate in front of the blade and position it with the
centrings provided.
» Afx both parts with the screw.
» Then, if you want to use the tool to cut plastic pipes, change the position
of the blade block as previously described.
