Ko Propo EX-NEXT - Getting Started with EX-NEXT; Transmitter Assembly Guide; Transmitter Dismantling Procedures

①①
②
②
③
③
①①
②
②
③③
①①
②
②
5

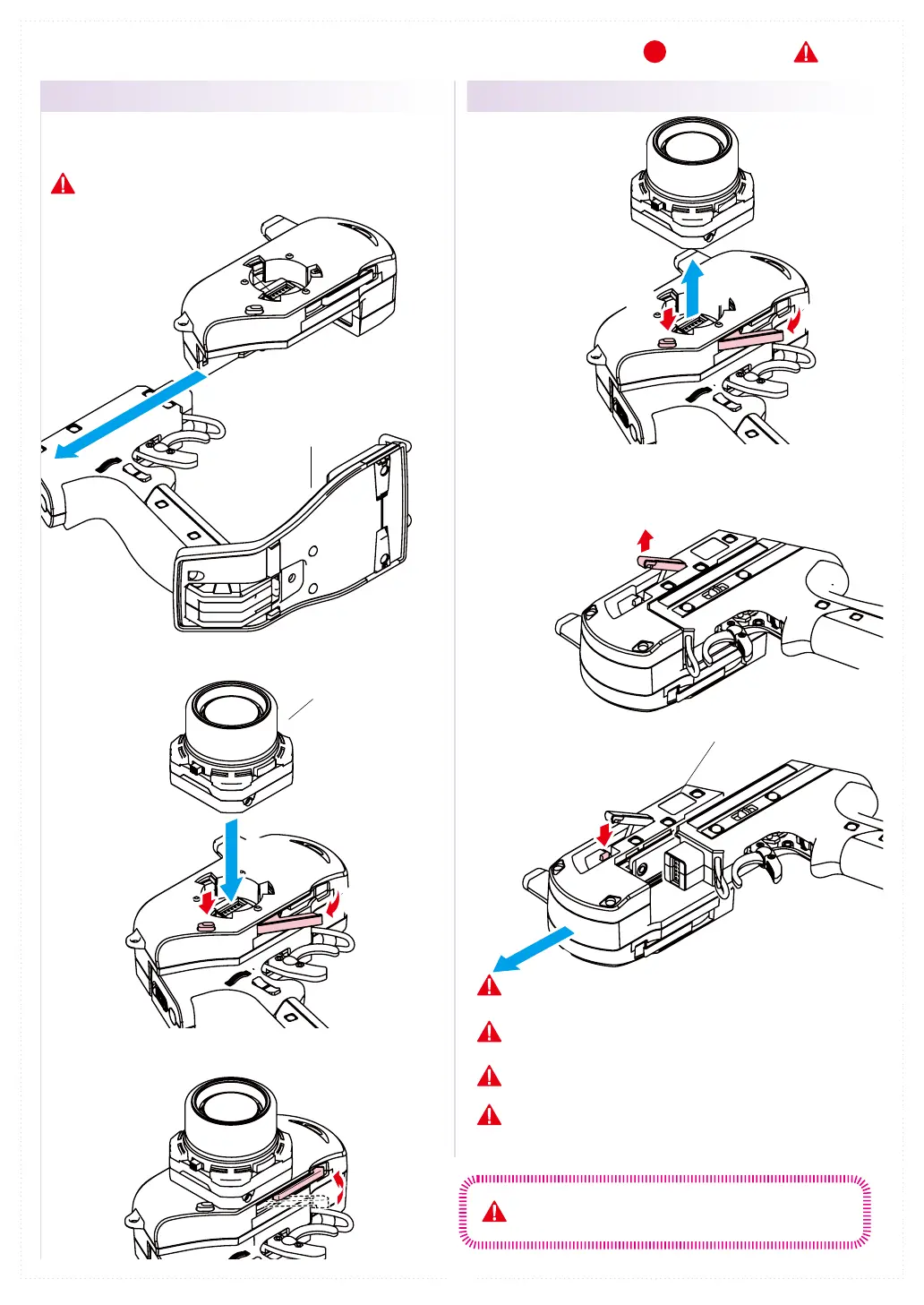

■ Getting Started■ Getting Started
Insert the Grip Unit into the Master Unit, then attach
the Steering Unit.
Detach the Steering Unit,
then detach the Master
Unit.
Grip Unit
Master Unit
Master Unit
*Please be sure to do configuration.
Steering Unit
Steering Unit
●Transmitter Assembly ●Transmitter Dismantling
1.
1.
2.
2.
3.
3.
Remove the connector cover before use.
If storing the transmitter in dismantled form,
please remember to attach the connector covers.
Assembly may differ with the included set contents.
Please refer included manual for LDT unit. about LDT.
In the explanation drawing, the standard steering
wheel unit is used.
The drop extension unit is attached to EX-NEXT.
When a unit is exchanged, or when you use it for the first
time, please perform the VR information configuration
function (p.17).
Steering Unit
release button
Steering Unit
Release button
Grip Unit
Release button
Steering Unit Steering Unit
Lock leverLock lever
Steering Steering
Unit Unit
Lock leverLock lever
Grip unit Lock leverGrip unit Lock lever
<Legend>
P
: Pont : Notice
