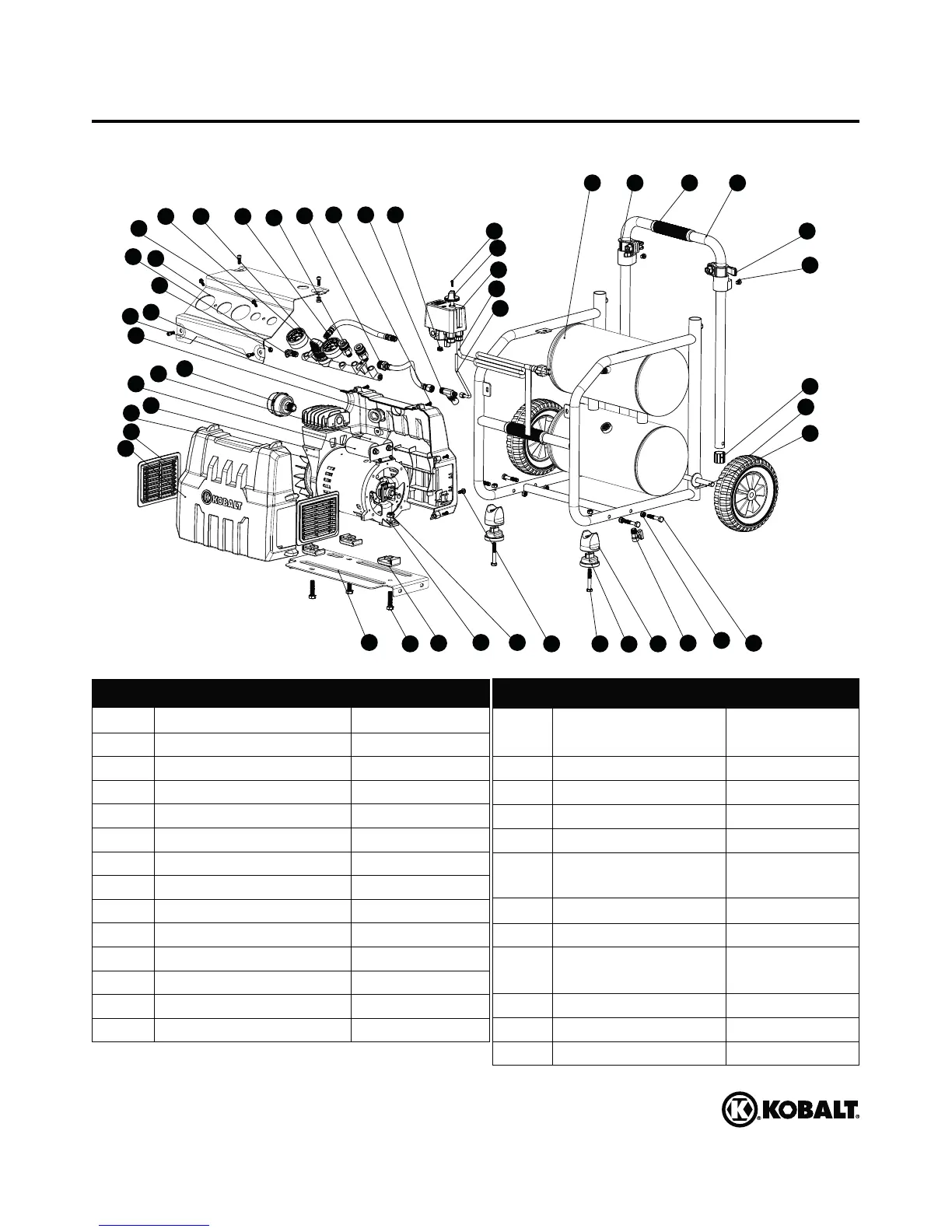

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-888-3KOBALT, 8 a.m. - 8 p.m., EST,
Monday - Friday
PART PART NAME
PART #
1 Front shroud
CE0202S.60.04
2 Side vent panel
CE0202S.60.05
3 Fan
MI0501.00.09
4 Electric motor and pump
A2410260311
5 
5612-0090-01
6 
5612-0100-01
7 
CE0202S.60.20
8 Rubber sleeve
CE0202S.60.06
9 Back shroud
CE0202S.60.03
10 Screw M6x16
J0800500033
11 Nut M6
J2020550033
12 Pressure relief valve
WCFAAQ.02.00
13 Control panel
CE0202S.70.01
14 Screw M5x15
J0800510033
PART PART NAME
PART #
15 Pressure gauge
(Regulated/Tank)

16 Air pressure regulator

17 Rubber hose
CE0202S.70.10
18 Quick coupler
5106-0010-01
19 Flexible tube
CE0202S.60.10
20 Self-tapping screw
ST3.9x16
J0780270167
21 Check valve

22 Plug
5017-0010-01
23 Self-tapping screw
ST3.9×12
J0780730033
24 Switch knob
CE0202S.00.03
25 Pressure switch

26 Power cord
CE0202S.30.10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16 17
18
19
20 21 22
23
24
25
26
27
28 29 30 31
32
33
34
36
35
37
38
39
40
41
4243
4445
46
48
47
