ASSEMBLY INSTRUCTIONS

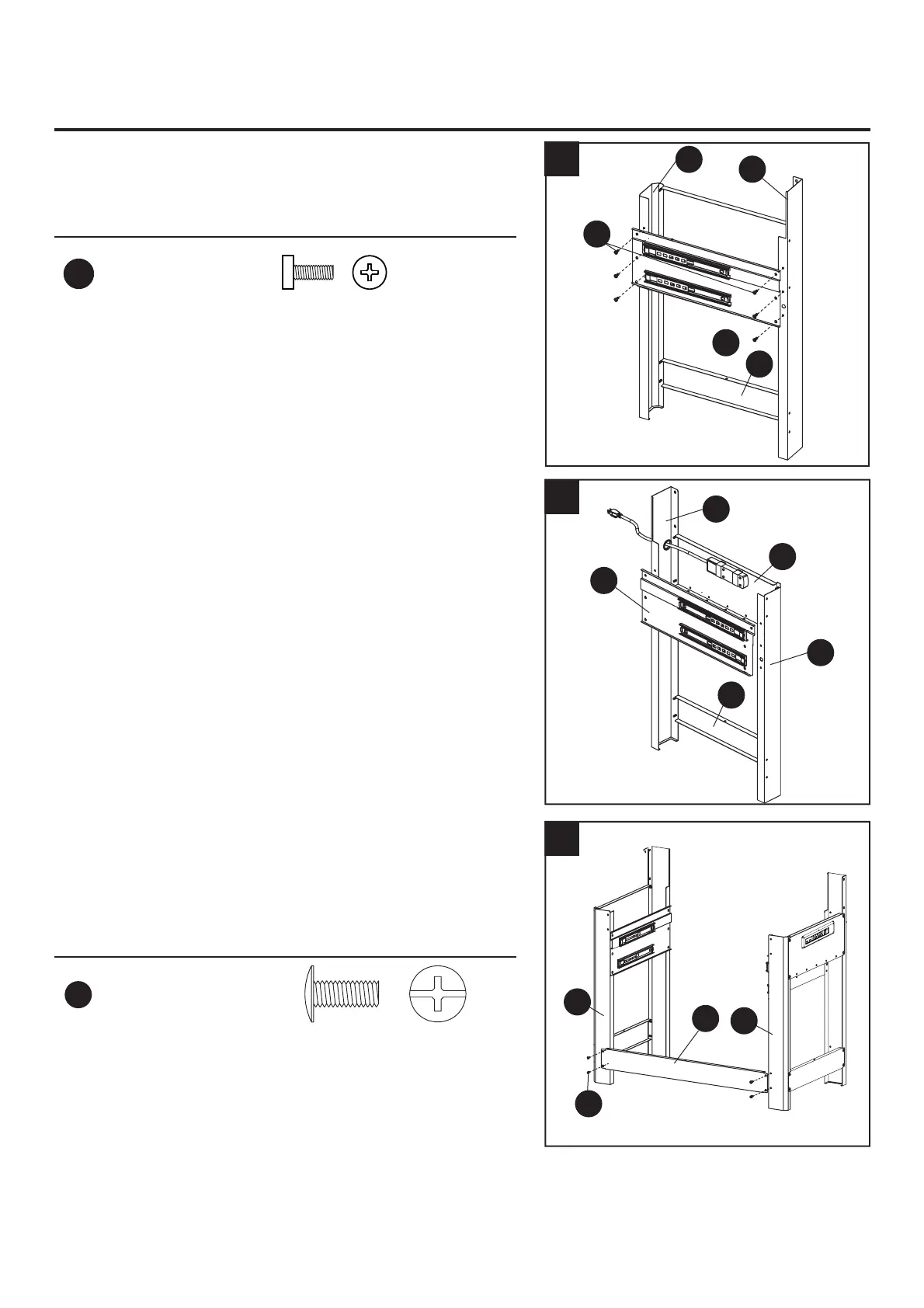

3. Align the left drawer slide panel (8L) with the pre-
drilled holes, ensuring the slides are toward the front
of the unit. Attach using screws (EE).
Hardware Used
M6x10 mm
Screw
x 6
Repeat steps 1 through 3 for the right legs (5R and
6R), right side panel (7) and drawer slide panel
right (9R).
4. Feed the power cord from the power strip portion of
the right side panel (7) through the grommet in the
right rear leg (5R).
5. Attach a bottom frame (11) to the front of the left
and right front legs (2L and 6R) using screws (AA).
Ensure the holes on the bottom frame (11) are facing
up.
Hardware Used
AA
M6x10 mm
Screw
x 4
EE
1L
2L
8L
4
4
EE
3
5R
6R
9R
7
4
11
6R
2L
AA
5
