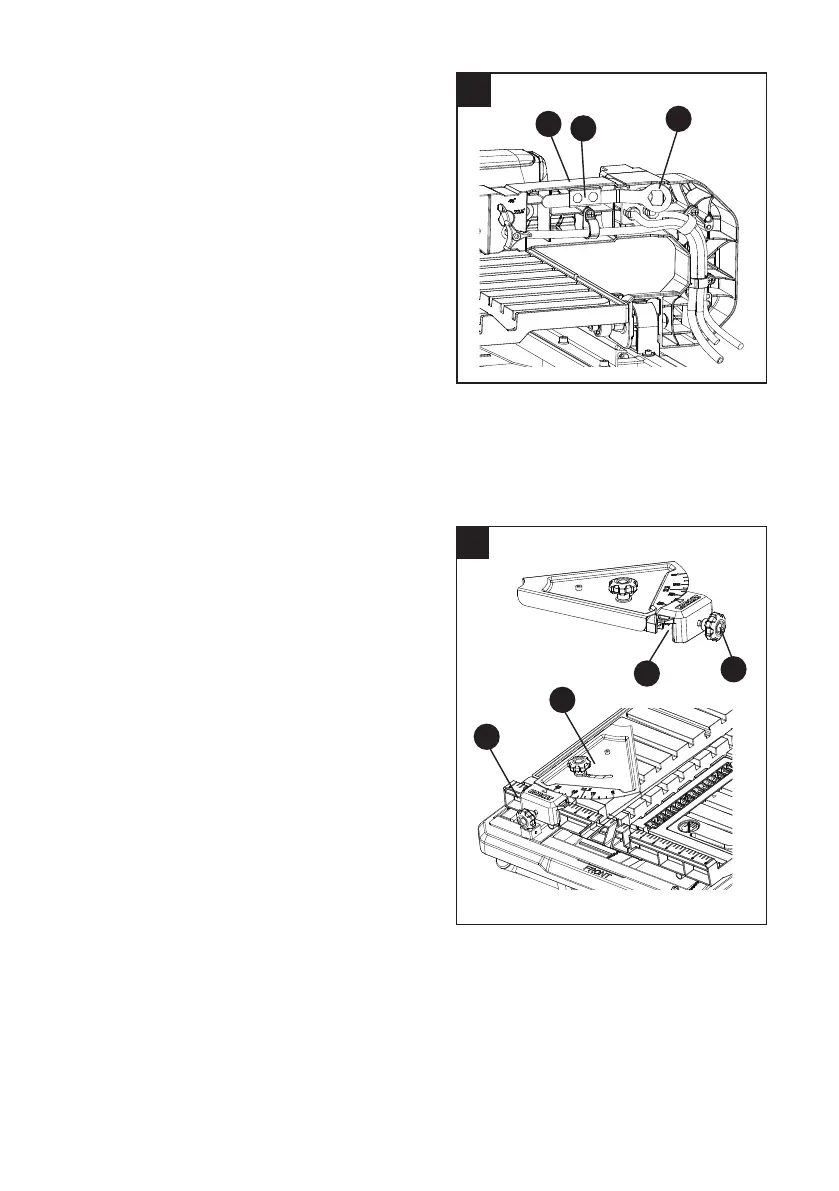

INSTALLING THE RIP/ANGLE GUIDE (FIG. 17)
The Rip/Angle guide can be used from either the left
or right side of the 7 in. cutting wheel.
● Place the slot (1) of the Rip/Angle guide (C)
on the sliding T-fence extension (V).
●
Move the Rip/Angle guide along
the fence to
the desire position and
turn the lock knob (2)
clockwise to lock in place.
1
V
C
2
16
HH
WHEEL WRENCH STORAGE (FIG. 16)
For convenient storage and prevention of loss,
there is a clip (HH) behind the arm (1) for storing the
wheel wrench (NN) when not in use.
1
NN
