17
• Open the left side plate by removing the five
screws. Remove the belt by following the directions
above.
After belt is installed, replace the side plate and secure it with the ve screws.
NOTE:
Heavy wet snow puts a load on belts, thus requiring more frequent belt replacement.
• Secure the auger. Using an 18 mm hex socket, turn
the pulley clockwise to remove.
• Follow directions in reverse to install the new pulley.

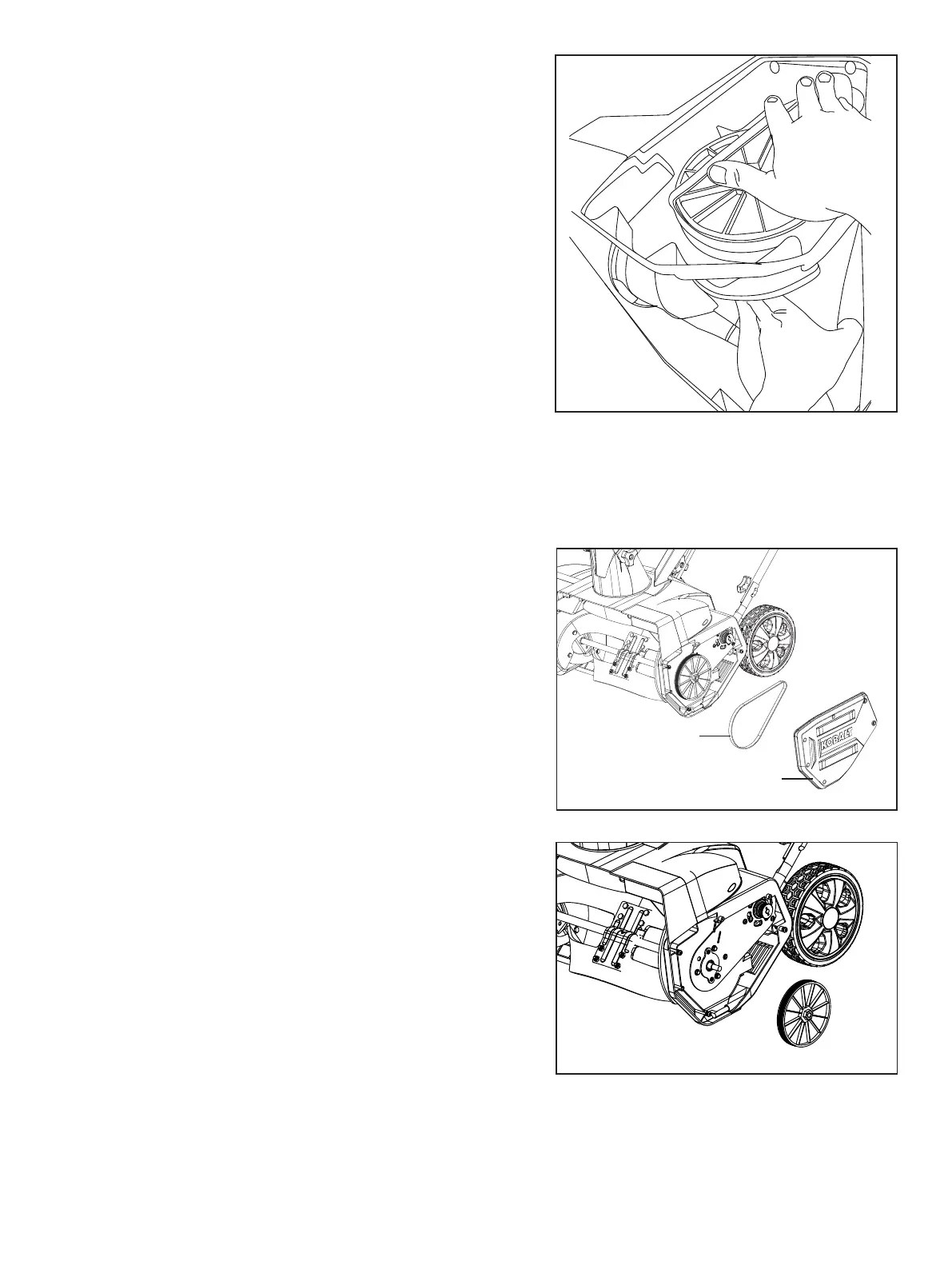

• Use your right hand to press the belt with the
ribbed side down. While holding the belt down
with your right hand, use your left hand to turn the
auger forward so that the auger pulley rotates in
a clockwise direction. The belt will be gradually
pushed down onto the pulley. When the belt is
seated on the pulley, adjust it so that the ribs of the
belt match the grooves on the pulley.
4. REPLACING THE PULLEY
Side cover
Belt
To Next Page
