Parts & Features

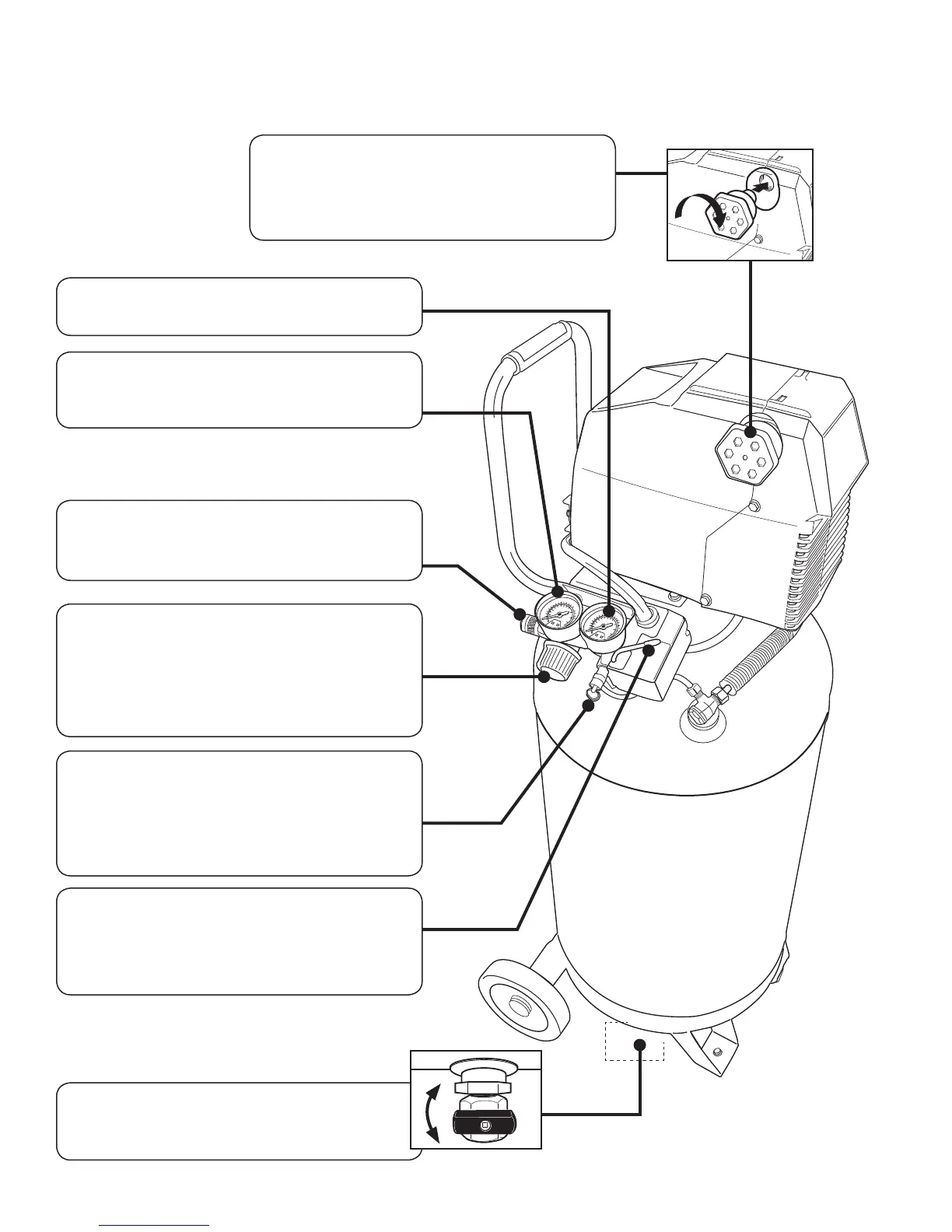

See figures below for reference.
Tank Pressure Gauge
Indicates the reserve air pressure in the tank.
Power Switch
This controls the power to the cut-in/cut-out
pressure switch. The pressure switch serves as
the Auto-On/Off positions for the motor.
Tank Safety Valve
Used to allow excess tank pressure to escape
into the atmosphere. This valve should only
open when the tank pressure is above the
maximum rated pressure.
Quick Connect
Offers a quick release feature for attaching and
removing the air hose.
Regulator
The air pressure coming from the air tank is
controlled by the regulator. To increase the
pressure turn the knob clockwise and to
decrease the pressure turn the knob
counterclockwise.
Regulator Gauge
Indicates the outgoing air pressure to the
tool and is controlled by the regulator.
Tank Drain Valve
Used to drain condensation from the air tank.
Located at bottom of tank.
Air Intake Filter
Provides clean air to the pump and must
always be kept free of debris. Check on a daily
basis or before each use.
