ASSEMBLY INSTRUCTIONS
1. To Install/Remove Battery Pack
To Attach Battery Pack
a. Make sure that the ON/OFF switch (D) is in
OFF “O” position.
b. Open the battery bay cover (C).

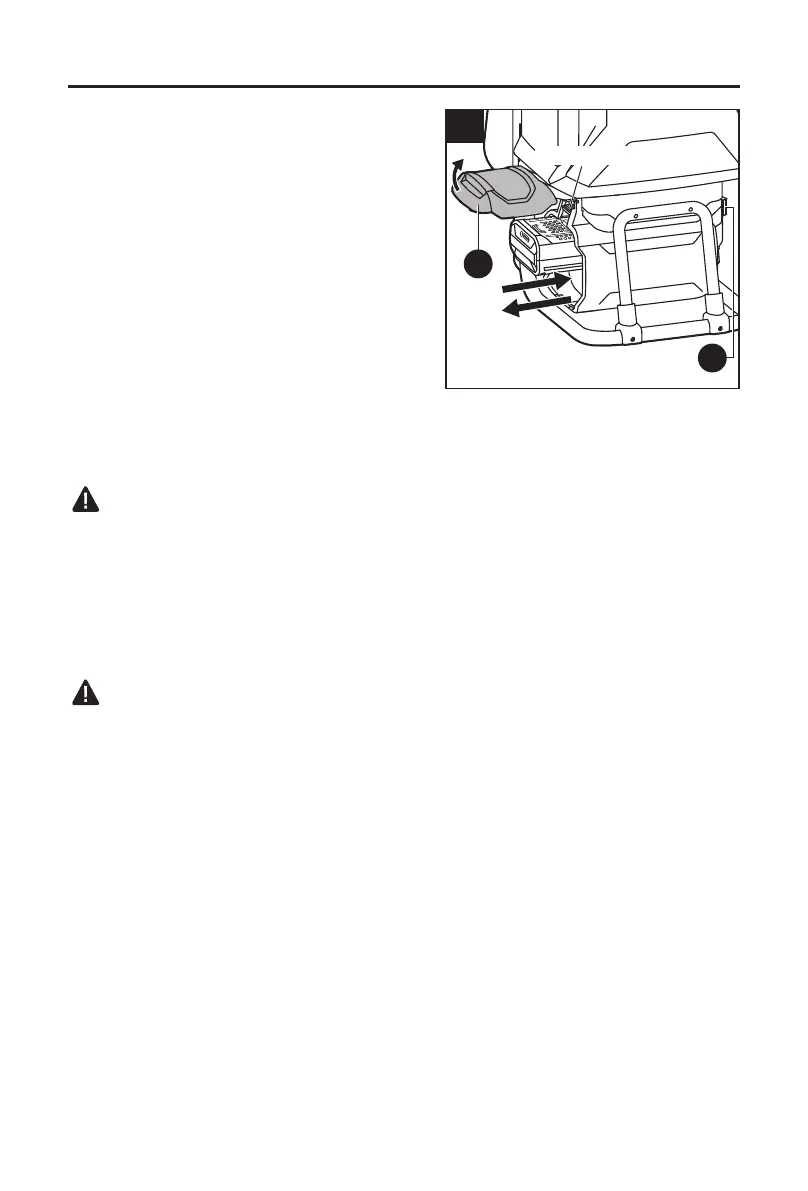

c. Align the mounting grooves on the battery
pack with the raised ribs in the sprayer’s
battery compartment, as shown.
d. Slide the battery pack into the sprayer until it
snaps into position.
NOTICE: Make sure that the latch on the sprayer
snaps into place and the battery pack is secured to
the sprayer before beginning operation. Improper
assembly of the battery pack can cause damage to internal components.
To Detach Battery Pack
WARNING
• Always be aware of the location of your feet, children, or pets when pressing the
battery-release button. NEVER remove the battery pack at a high position. Serious
injury could result if the battery pack falls.
a. Make sure that the ON/OFF switch (D) is in OFF “O” position.
b. Press the battery-release button with your thumb; the battery pack will disengage from the
latch.
c. Grasp the battery pack and remove it from the sprayer.
WARNING
• Battery-powered sprayers are always in operating condition. Therefore, the ON/OFF switch
should always be in OFF position when the sprayer is not in use or when carrying the
sprayer at your side.
Battery Pack Protection
To protect the life of the battery pack, the sprayer will shut off when the battery’s charge
becomes too low. If this happens, remove the battery pack and charge it according to the
charger’s instructions.
1
Battery-release button
C
D
