8
ASSEMBLY INSTRUCTIONS
WARNING: This product requires assembly. To reduce the risk of injury to persons, never
operate without the guard in place. The guard must always be on the tool to protect the user.
1. Mounting the Guard
WARNING
• Install the guard before the attachment is
connected to the power head.
• To reduce the risk of injury to persons, do not
operate without guard in place.

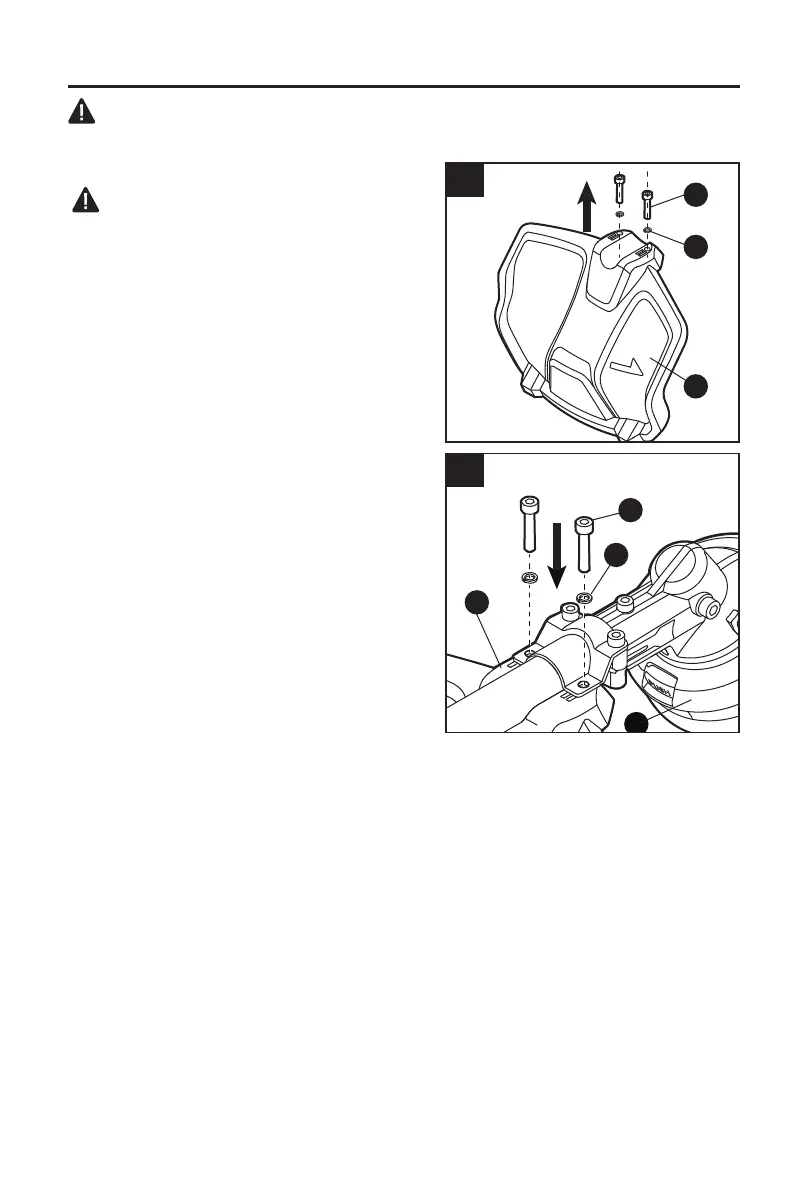

a. Loosen the two bolts (G) in the guard with the
supplied hex key (F). Remove the bolts and
spring washers (H) from the guard (C)
(Fig. 1a).
b. Lift the trimmer head (E) and face it downward;
align the two mounting holes in the guard with
the two assembly holes in the base of the shaft.
Make sure that the inner surface of the guard
faces towards the trimmer head (Fig. 1b).
c. Use the supplied hex key to secure the guard in
place with the washers and bolts.
1a
H
C
G
G
H
C
1b
