ASSEMBLY INSTRUCTIONS
7

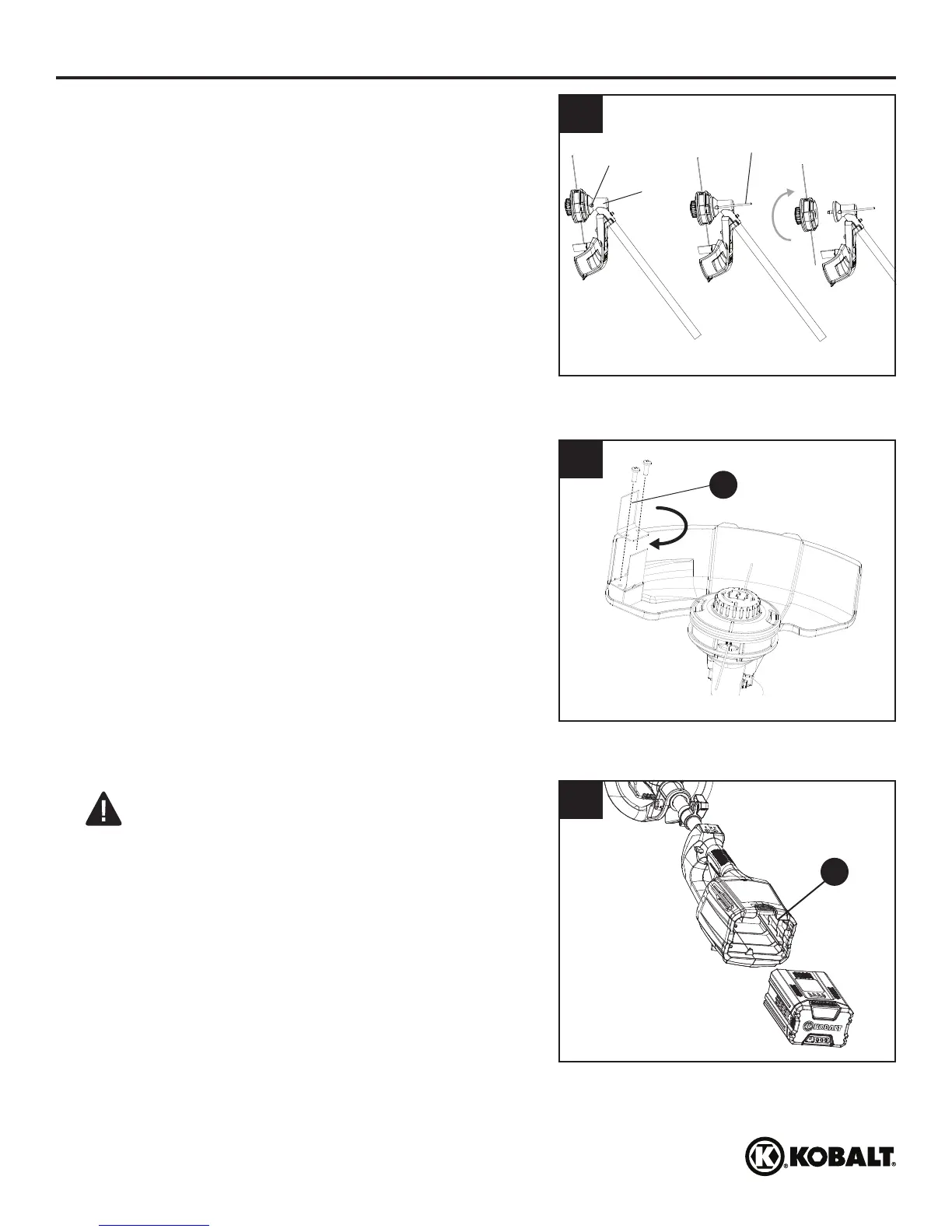

7. Removing the spool from the trimmer
a. Turn the spool head, while looking through the
hole next to the gear box. Line up the hole and
the slot inside the gear box.
b. Insert a small screwdriver or metal rod (not
included) into the hole next to the gear box.
c. Rotate the spool clockwise until the spool is
removed.
Hole
Gear box
Metal rod or
screwdriver
9. Battery
9a. To install:
a. Align the battery with the cavity in the string
trimmer housing.
b. Insert the battery until the battery release button
(Q) locks into place.
c. Push down on the battery until it locks into place.
You should hear a “click” once it is installed.
Note: The battery can only be installed one way.
IMPORTANT: The battery is not charged when
it is purchased. Before using the trimmer for the rst
time, place the battery in the battery charger and
charge. Make sure to read all safety precautions and
follow the instructions on Page 7.
9
Q
8
8. Adjusting the cutting swath
The trimmer is currently set at a 14 in. cutting swath.
To adjust to a cutting swath of 16 in.:
a. Remove the battery from the string trimmer.
b. Remove both screws on the cut-off blade (G)
with a Phillips screwdriver (not included).
c. Rotate the cut-off blade (G) 180°.
d. Replace both screws in the cut-off blade (G).
Note: Set the cut-off blade (G) to 14 in. for
greater runtime. Set the cut-off blade (G) to
16 in. for greater cutting area.
G
