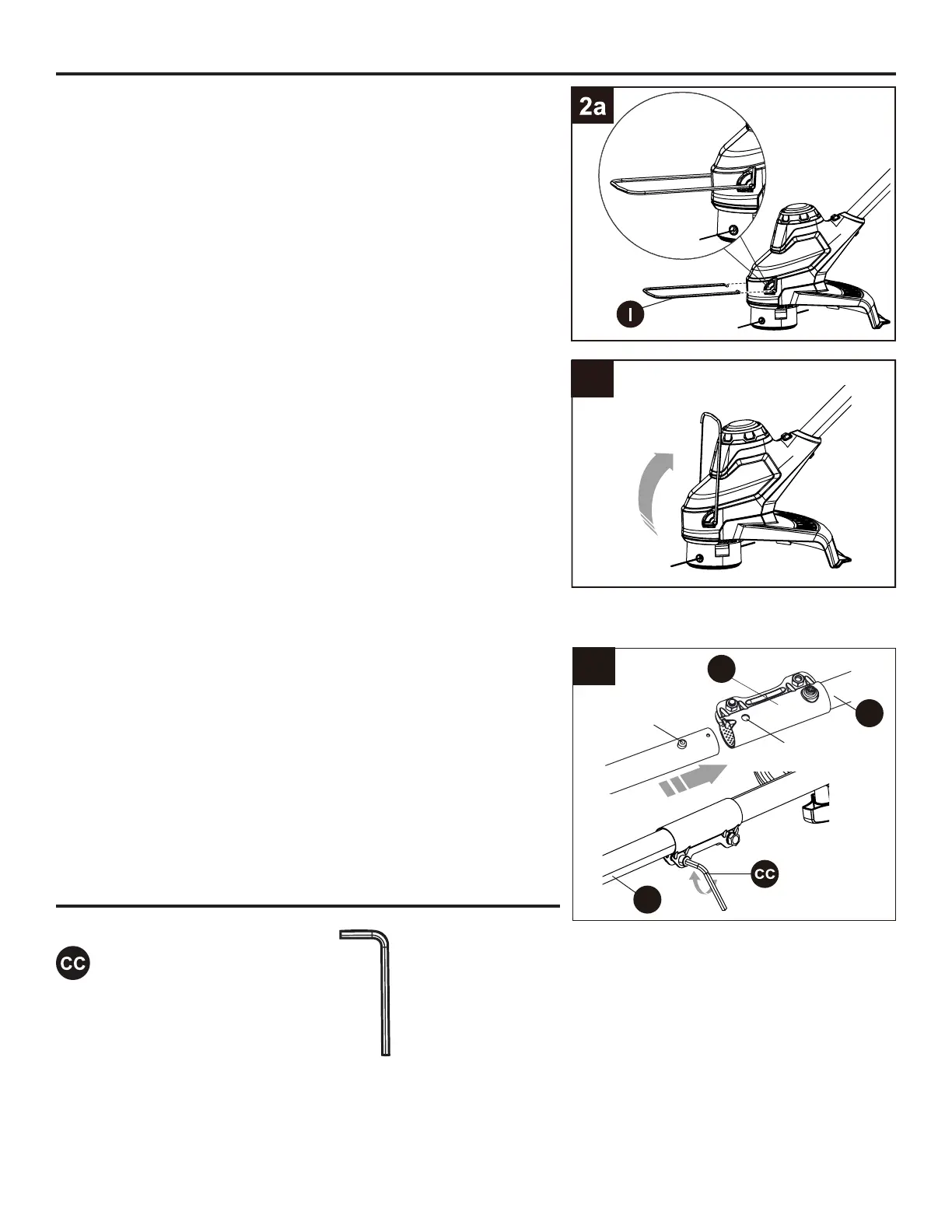

2. Attaching The Edge Guide
The edge guide can limit the cutting range of the trimmer
and reduce the risk of the rotating cutting line causing
damage.
a. To use the edge guide, press the edge guide onto the
trimmer head.
b. The edge guide can be ipped up for storage.
ASSEMBLY INSTRUCTIONS
3. Connect upper/lower trimmer tubes
a. Push in the release button located on the lower
tube (G). Align the release button with the
positioning hole on the upper tube (D) and slide the
two tubes together. Rotate the lower tube until the
release button locks into the positioning hole.
b. Tighten the screw with the hex wrench (CC).
Hardware Used
Hex wrench
x 1
Release button
Positioning hole
3
G
D
F
2b
