ASSEMBLY INSTRUCTIONS
kobalttools.com
RIVING KNIFE INSTALLATION AND POSITIONING
Note: This saw is shipped with riving knife in lowered position for non-through cuts. Riving knife
must be placed in raised position to attach anti-kickback pawls and blade guard for all through cut
operations.
Note: The riving knife provided with the table saw shall be thicker than the body of the matching saw
blades provided with the table saw but thinner than the kerf width of that saw blades. 0.087 in. (2.2
mm) thick riving knife. Only use for 10 in. (254 mm) blade width. 0.01 in. (2.6 mm) min. kerf width and
0.073 in. (1.85 mm) max body thickness.
To place riving knife in raised position (for through
cuts):

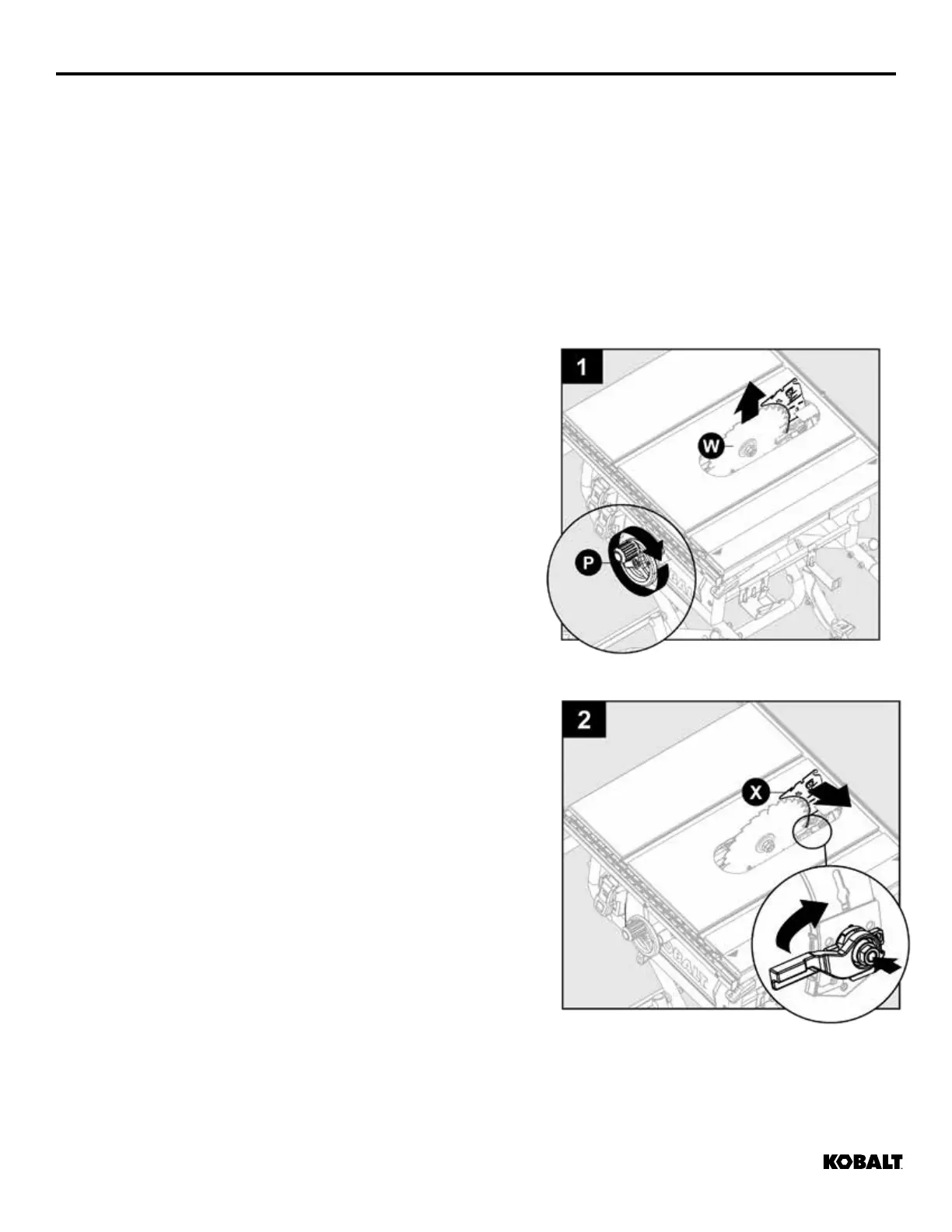

1. Raise blade (W) all the way to highest position by
turning height adjusting wheel (P) clockwise.
2. Lift lever up and toward the rear of the saw. Push in on
the nut to release riving knife for adjustment.
