11

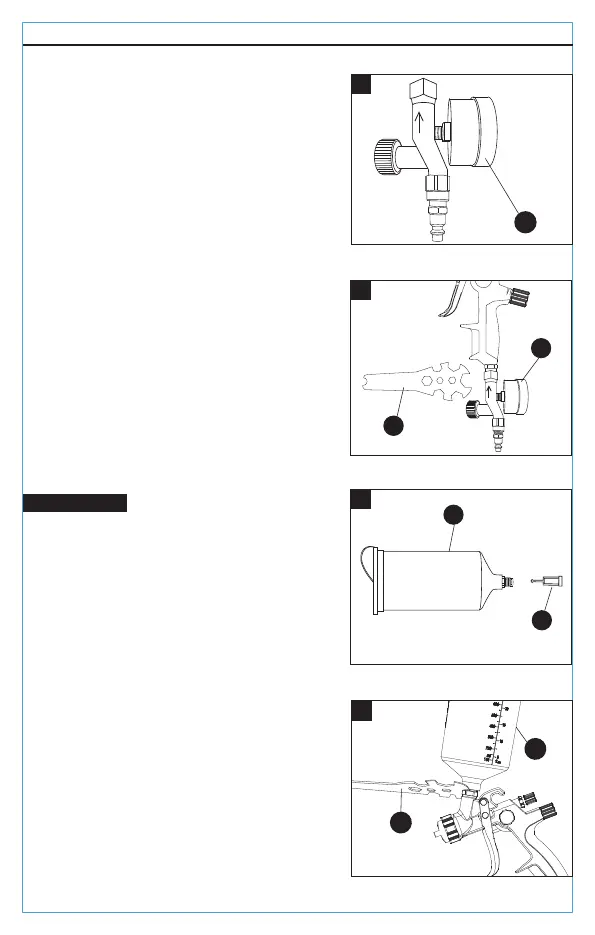

ASSEMBLY INSTRUCTIONS
1. Tighten female plug (not included),
turning clockwise with wrench for
air tight connection (See Figure 1).
DO NOT OVERTIGHTEN.
1
H
NOTE: Use threaded sealant tape
(not included) on the male threading of the
air pressure regulator (H).
2. Attach the Air Pressure Regulator (H) to
the Air Intake on the handle bottom.
Tighten by turning clockwise, using
wrench (J) (17 mm) for air tight connection
(See Figure 2).
DO NOT OVERTIGHTEN.
IMPORTANT: Make sure the Paint Filter (K)
is installed in the bottom of the Paint Cup (F)
prior to attaching the Paint Cup to the sprayer.
3. Attach the Paint Cup (F) to Air Paint
Sprayer. Tighten by turning clockwise,
using wrench (J) (19 mm) for air tight
connection (See Figure 4).
DO NOT OVERTIGHTEN.
2
3
4
Air Flow
H
J
F
K
J
F
Air Flow
