7.3 System Calibration
Before System Calibration, lift the lift-arm and bucket for 5~10 times to preheating the hydraulic oil.
Let the wheel loader stay on the relatively flat ground in the process of System Calibration.
7.3.1 Zero Calibration【Zero】
Press key【Pause】to enter Pause state with red sign ‘■’ displaying.
Make sure the bucket of wheel loader is empty.
BUCKET-UP: Flip the bucket upward to the limit position.
ARM-DOWN: Put the lift-arm down so that the bucket goes down to the lowest position.
Press key【Load】to display the blue sign ‘▲’.

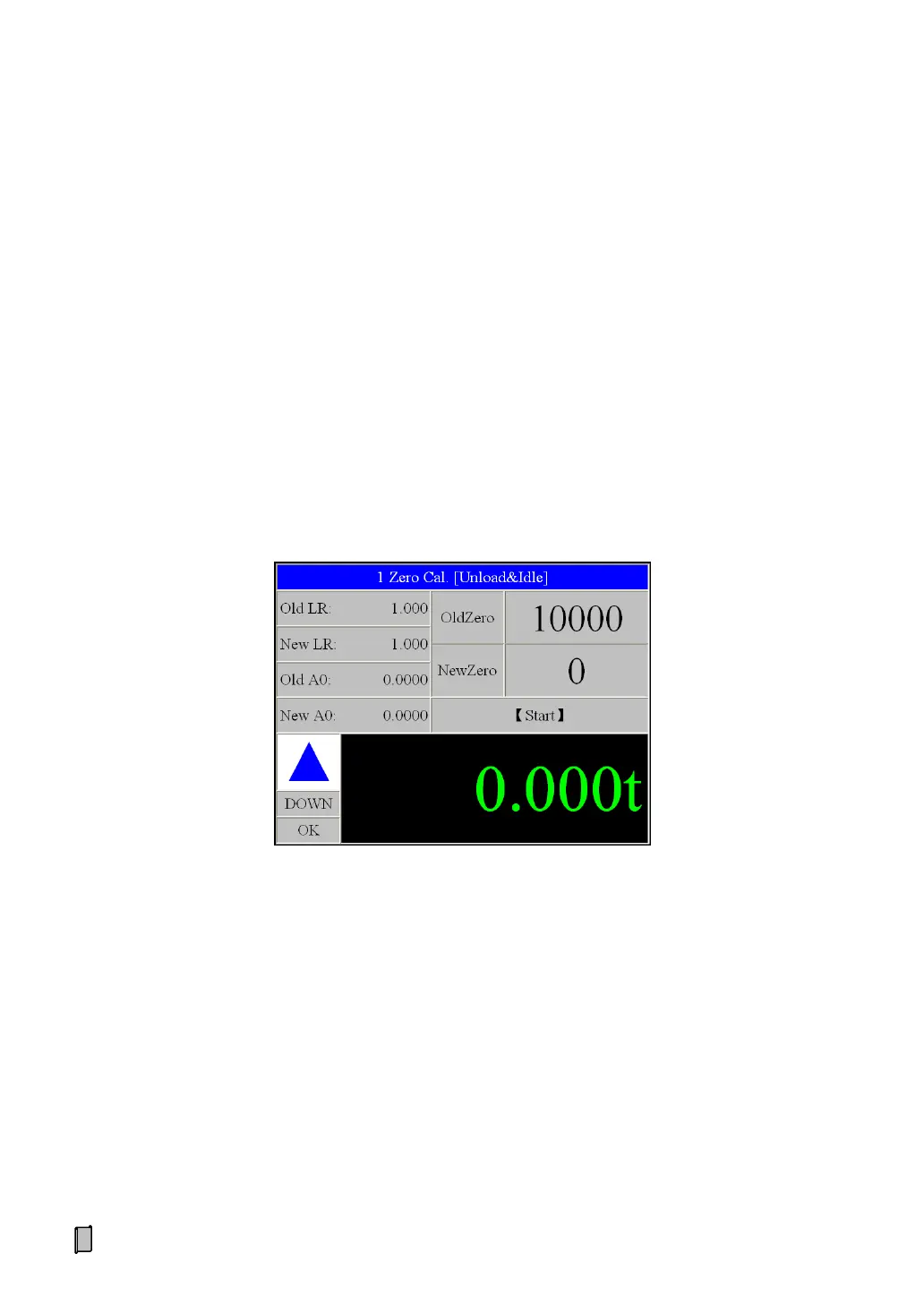

Press key【Zero】to display interface ‘Zero Calibration’:
Lift the lift-arm and bucket with idle speed.
After the Magnet Block passed by the Weighing Segment, display:
Blue sign ‘▼’.
New Zero Value.
New Run Length Ratio.
New IdleAcc.Value A0 [Acceleration Value at Idle Speed, dm/s
2
].
Message ‘Save’: It’s allowed to save the detection results.
Alarm Message: It’s not allowed to save the detection results.
To Next Page
