7.3.2 Zero Compensation【Z.cmp】
Press key【Pause】to enter Pause state with red sign ‘■’ displaying.
Make sure the bucket of wheel loader is empty.
BUCKET-UP: Flip the bucket upward to the limit position.
ARM-DOWN: Put the lift-arm down so that the bucket goes down to the lowest position.
Press key【Load】to display the blue sign ‘▲’.

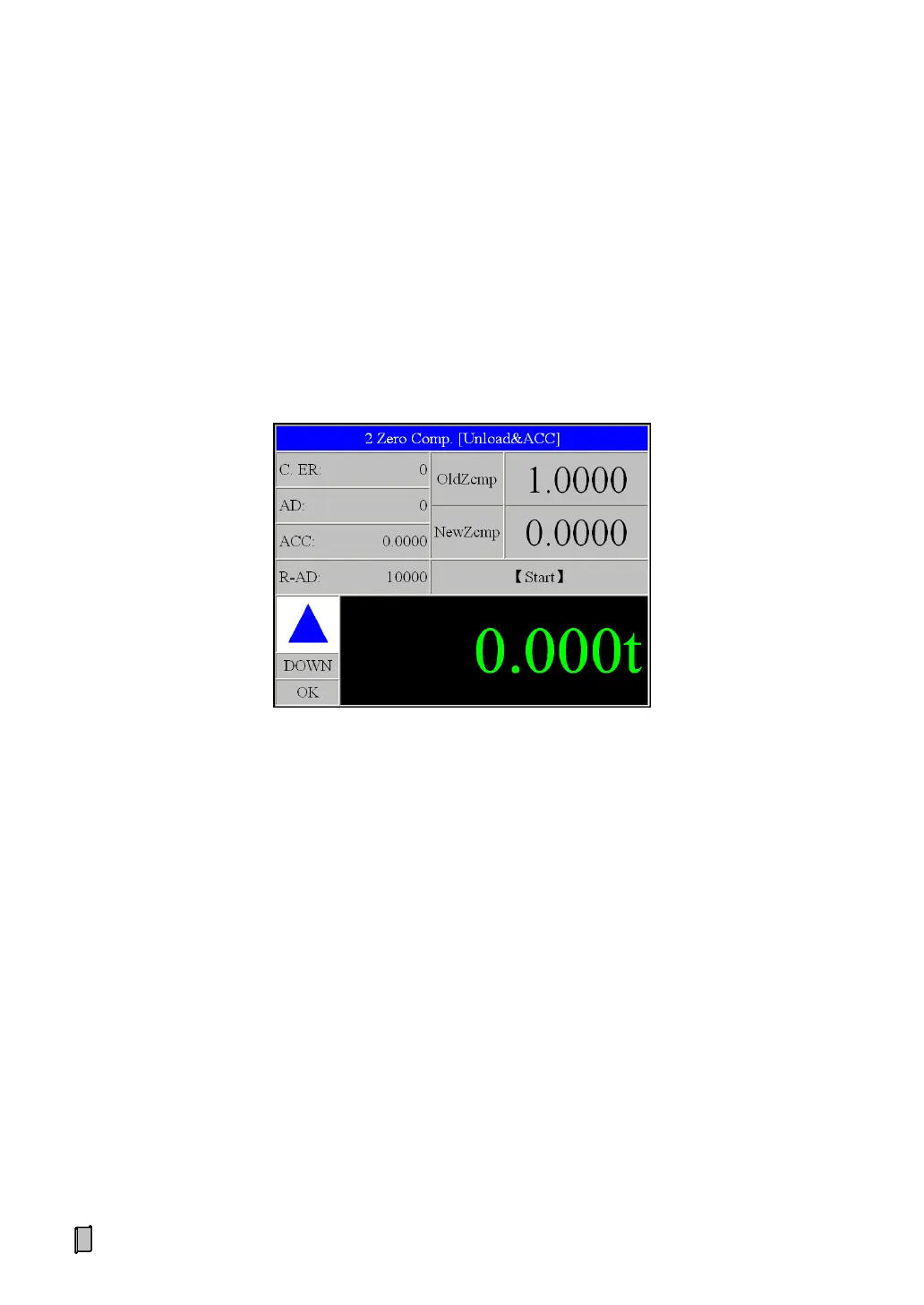

Press key【Z.cmp】to display interface ‘Zero Compensation’:
Lift the lift-arm and bucket with the accelerator at the actual loading operation state and do the
best to keep the accelerator stable.
After the Magnet Block passed by the Weighing Segment, display:
Blue sign ‘▼’.
New Zero Compensation Coefficient.
Compensation Difference [C.ER = New Zero Compensation Coefficient – Old Zero
Compensation Coefficient].
AD: AD Value at Weighing Segment.
ACC: Acceleration Value at Weighing Segment [dm/s
2
].
R-AD: Real-time AD Value.
Message ‘Save’: It’s allowed to save the detection results.
Alarm Message: It’s not allowed to save the detection results.
To Next Page
