8
8-31
ï¼»8. OPTIONAL EQUIPMENTï¼½
8.9.5 INSTALLING FRONT ATTACHMENT
INSTALLING FRONT ATTACHMENT
• Work on a stable and level ground to prevent the front attachment from falling down.
• After installing the front attachment, make sure that the quick hitch holds the front attachment securely.
The quick hitch shown in the explanation figures is an example.
Before performing this work, carefully read the operation & maintenance manual of the installed quick hitch.

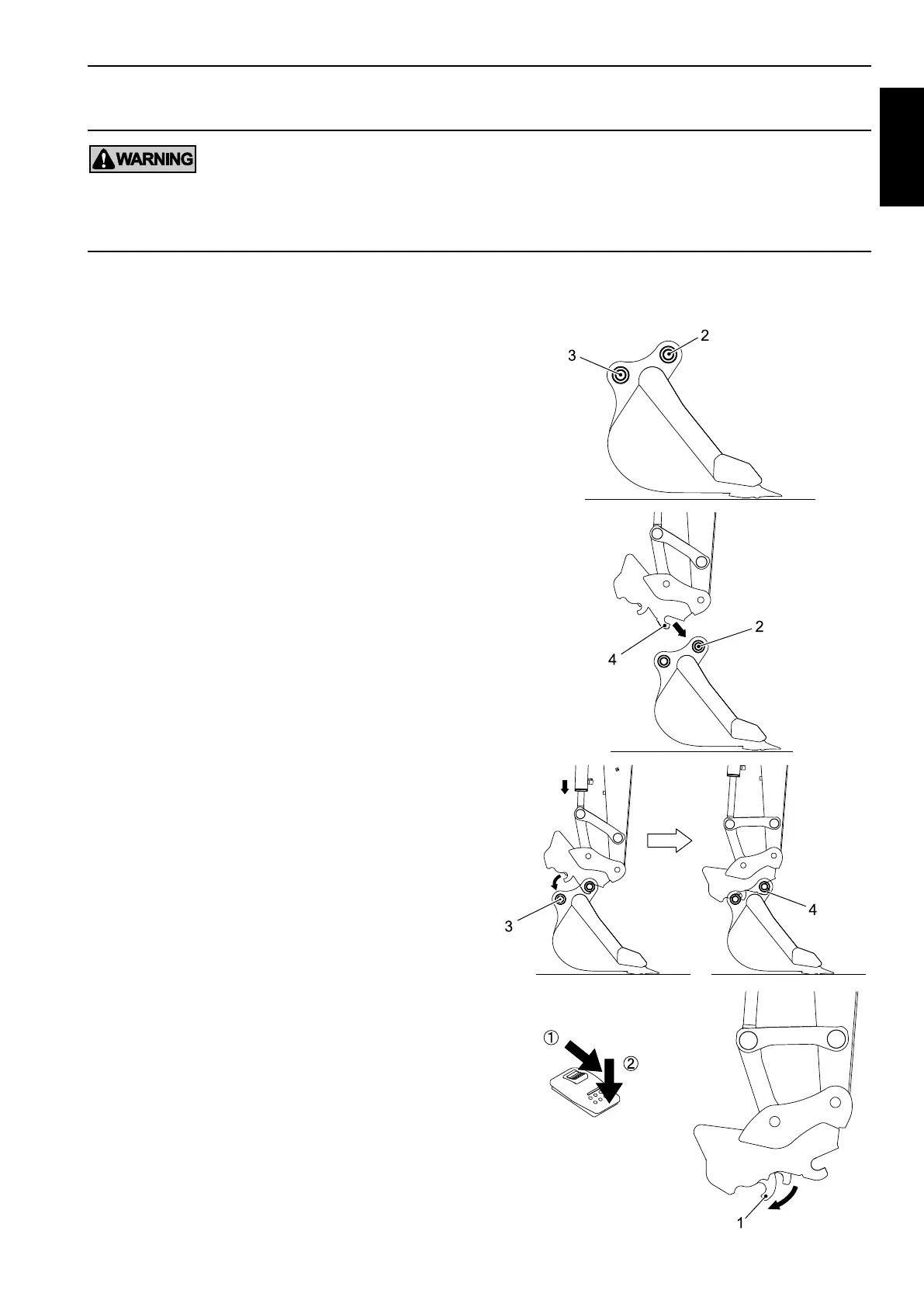

1. Place the front attachment on a level ground.
Attach pins (2) and (3) to the front attachment.
2. Operate the machine to lower the quick hitch and
engage fixed hook (4) with pin (2).
3. Extend the bucket cylinder so that the quick hitch
comes in contact with pin (3).
At that time, make sure that fixed hook (4) engages
with pin (2).
4. Push the "LOCK" side of the quick hitch operation
switch to engage movable hook (1) with pin (3).
(See "QUICK HITCH OPERATION SWITCH" in
Chapter 2).
5. Check that the front attachment is securely installed,
according to the operation & maintenance manual of
the installed front attachment.
Copyright©2020 Kobelco Construction Machinery Co.,Ltd. All rights reserved. [S2YY00041ZE03] [0701CsCshWbYs]
