［2. MACHINE FAMILIARIZATION］

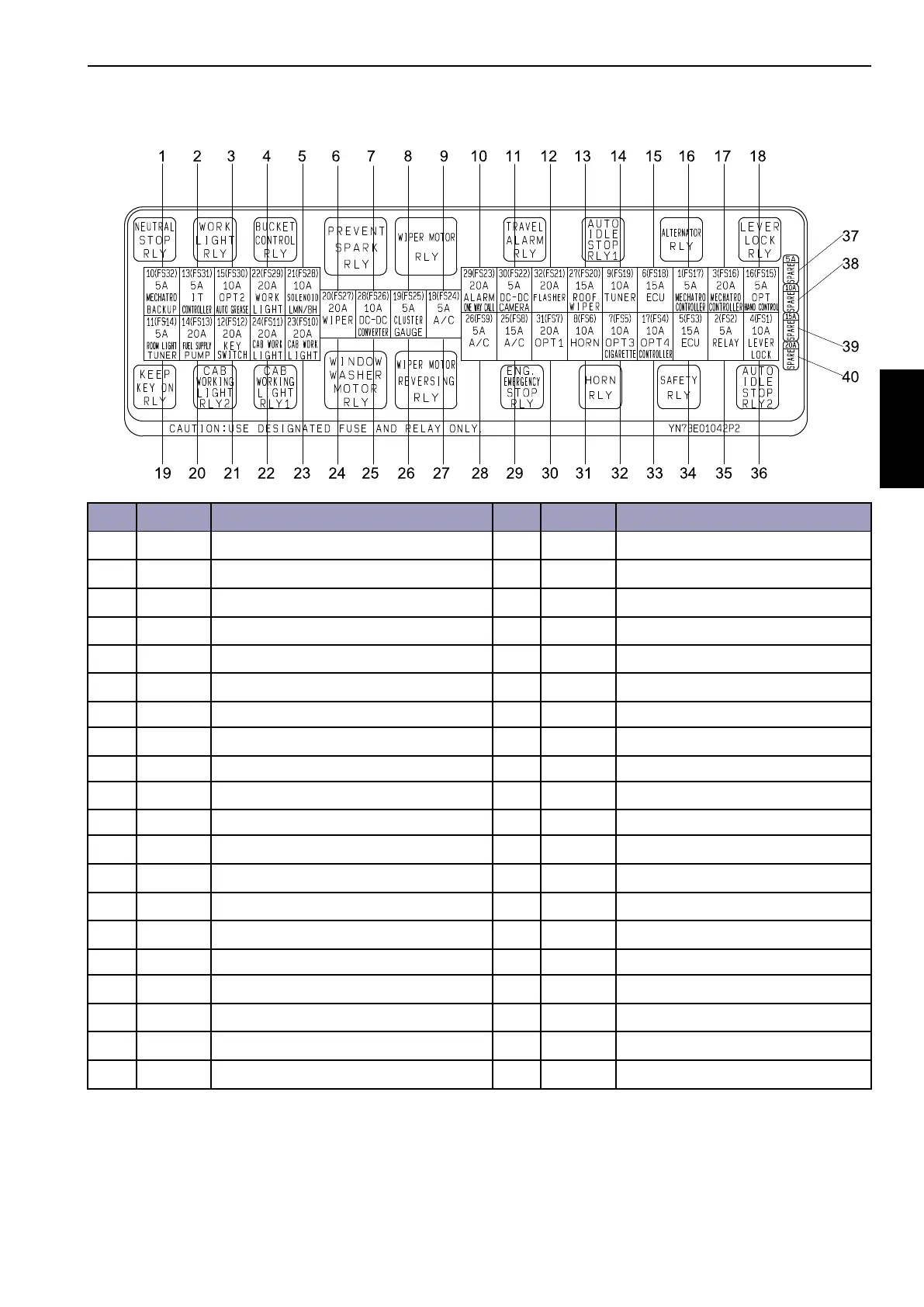

2.6.3 FUSE CAPACITY AND CIRCUIT NAME
The following shows each fuse capacity and circuit name.
1 2 3 4 5 11 12 13 14 15 16 17 18
37
38
39
40
6 7 8 9 10
20 21 22 23 24 25 26 2719 29 30 31 32 33 34 35 3628
Item
Capacity
Circuit Name Item
Capacity
Circuit Name
1 5A
Mechatro controller (backup)
21 20A
Key switch
2 5A IT controller 22 20A
Cab working light
3 10A
Automatic greasing
23 20A
Cab working light
4 20A
Working light
24 20A
Wiper
5 10A
Solenoid valve, LMN/BH
25 10A DC-DC converter
6 20A
Wiper
26 5A
Cluster gauge
7 10A DC-DC converter 27 5A Air conditioner
8 5A
Cluster gauge
28 5A Air conditioner
9 5A Air conditioner 29 15A Air conditioner
10 20A
Travel alarm, public address system
30 20A
Option 1
11 5A DC-DC for camera 31 10A Horn
12 20A Flasher 32 10A
Option 3
13 15A
Skylight wiper
33 10A
Option 4, controller
14 10A Tuner 34 15A
Engine controller (ECU)
15 15A
Engine controller (ECU)
35 5A
Relay
16 5A Mechatro controller 36 10A Lever lock
17 20A Mechatro controller 37 5A
Spare fuse
18 5A
(Option) hand control
38 10A
Spare fuse
19 5A
Room lamp, tuner
39 15A
Spare fuse
20 20A
Fuel supply pump
40 20A
Spare fuse
