Wiring Diagram
Wiring Diagram [Cable requirement]
1918
■
Upto 100M : CAT5 cable
■
Upto 50M : TIV 0.65㎟cable
■
Upto 100M : Over TIV 0.8㎟cable
■
Upto 150M : TIV 0.8㎟cable + RG-59 / U
RG-59 / U (Coaxial cable) for Video signal
(Connect core to Video & shield to GND)
Based on distance from a camera to the monitor
※
※
CAT5 wire configuration
In case of more than 50m of CAT5 cable length, the screen and voice quality can get lower.
But the sympthom is not a kind of fault. So less than 50m is recommended.
Orange
W / Orange
① VCC
double up
Green
W / Green
② GND
double up
Blue
W / Blue
③ Audio
double up
Brown
W / Brown
④ Video
double up

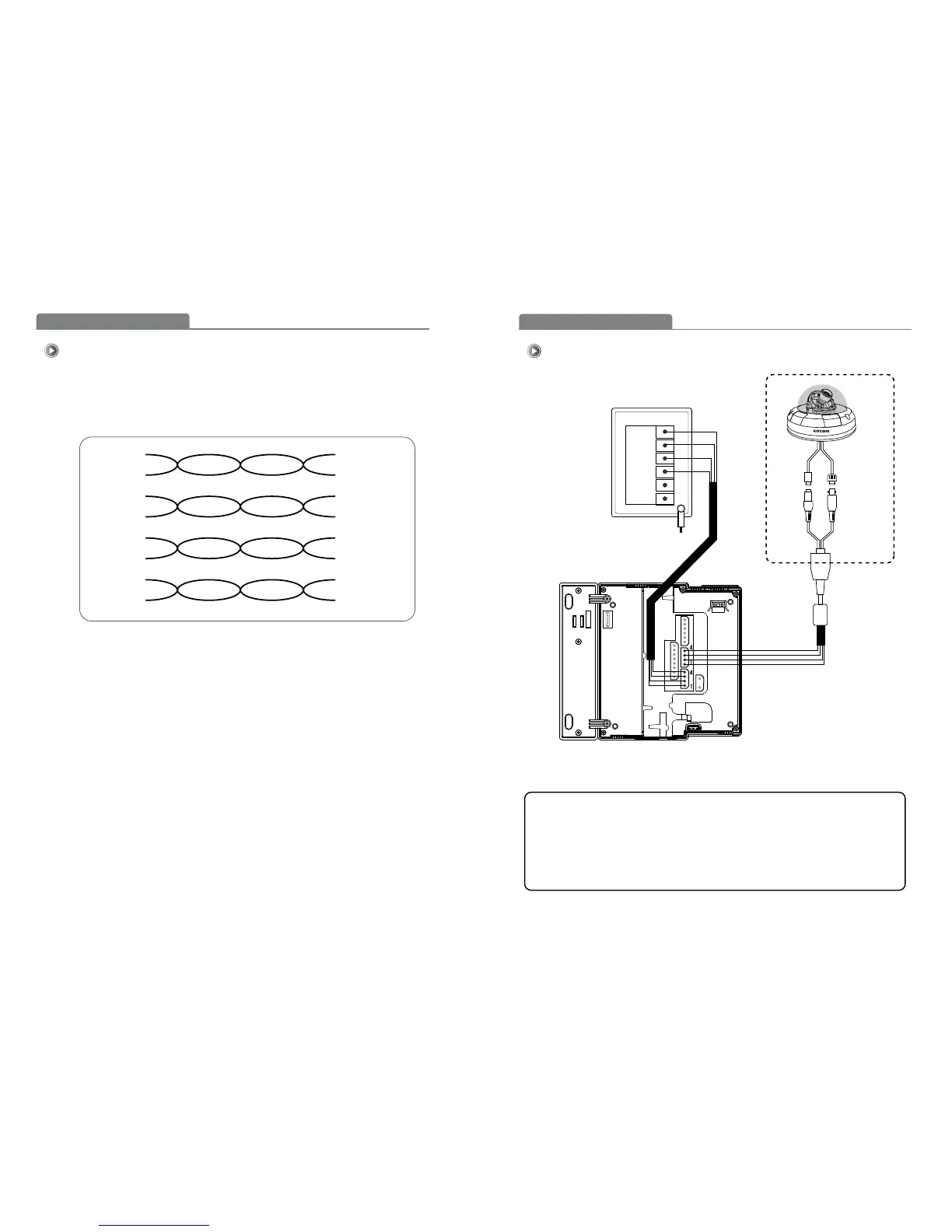

Wiring Diagram
Wiring Diagram [CCTV Camera A type]
A. In case the power consumtion of CCTV camera is below 200mA (DC12V) and in distance
below 50M, you can use monitor power to CCTV camera.
B. In case the power consumption of CCTV camera is over 200mA (DC 12V) and distance
between CCTV camera and monitor is over 50M, the addional power supply shoud be used
for CCTV camera.
KC-MB30
CAM1
①
②
③
④
⑤
⑥
Video
BNC
CCTV
A type
DC
Jack
FG
Main monitor
