6

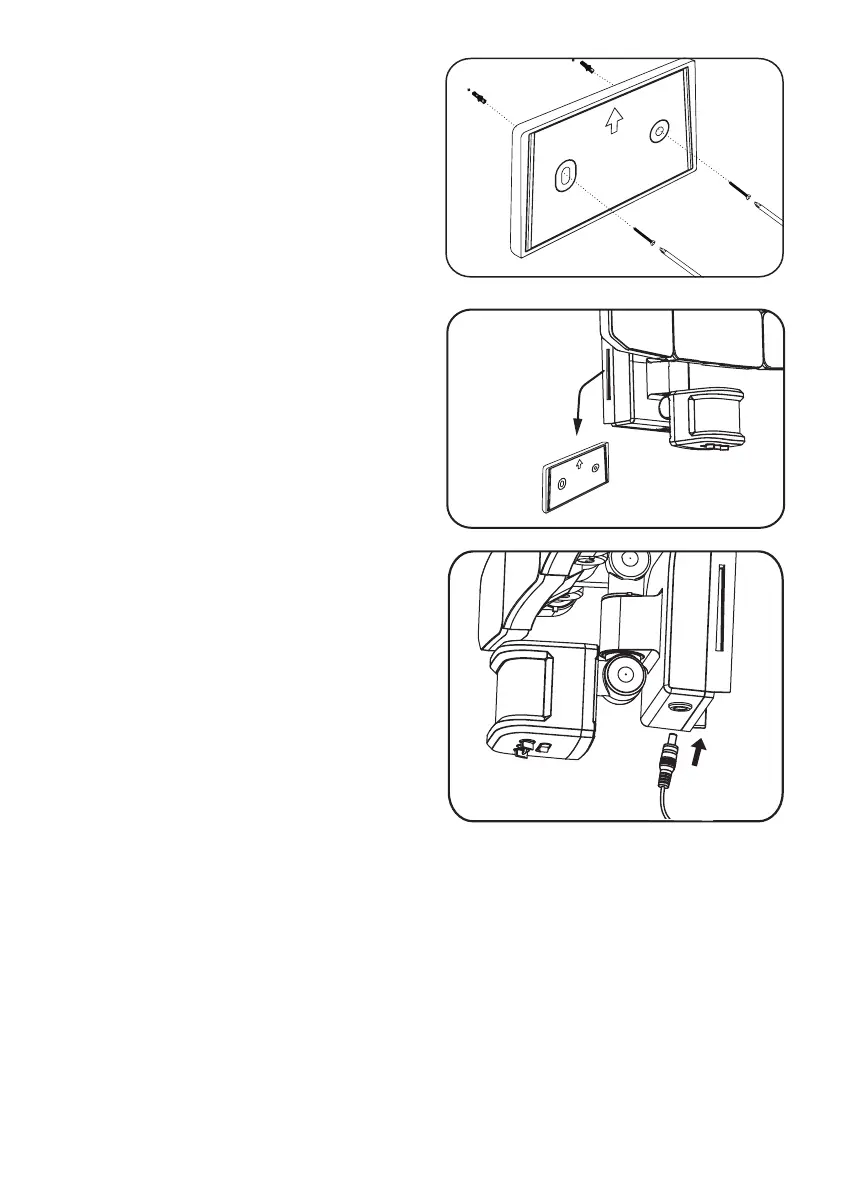

Use a power drill (not included) to drill the
holes on your chosen mounting surface. Place
the mounting plate (with smooth surface
facing out) over the holes and use 2 of the
included wall anchors and screws to fasten the
mounting plate to the surface.
Slide the oodlight down onto the mounting
plate until it “slides” securely into place.
Carefully route the solar panel cable to
the light xture. Push the cable’s male
connector into the socket located under the
light xture. (Leave enough loose cable to
form a drip loop.)
Your solar motion light will now begin to
charge!
NOTE: Wrap any excess solar panel cable
around the arm located behind the solar panel.
Leave enough loose cable to form a drip loop.
STEP 3: ATTACH MOUNTING BRACKET
STEP 4: MOUNT THE FIXTURE
STEP 5: CONNECT SOLAR PANEL TO
LIGHT FIXTURE
To Next Page
