Setting Up the Printer
4. Push the bar code end of the supply spool into the spool holder on the
right.
5. Place the left side of the supply spool into the spool holder on the left.
6. Rotate the thumb wheel until the lugs on the spool holder lock into the
notches on the supply spool.
7. Remove the label and wrapper from the ribbon.
8. Push the right side of the take-up spool into the spool holder on the
right.
9. Place the left side of the take-up spool into the spool holder on the left.
10. Adjust the take-up spool until the lugs on the spool holder lock into the
notches on the take-up spool.
11. If there is any slack in the ribbon, remove it by turning the supply spool.
IMPORTANT: Slack in the ribbon can cause a paper jam when making
prints.

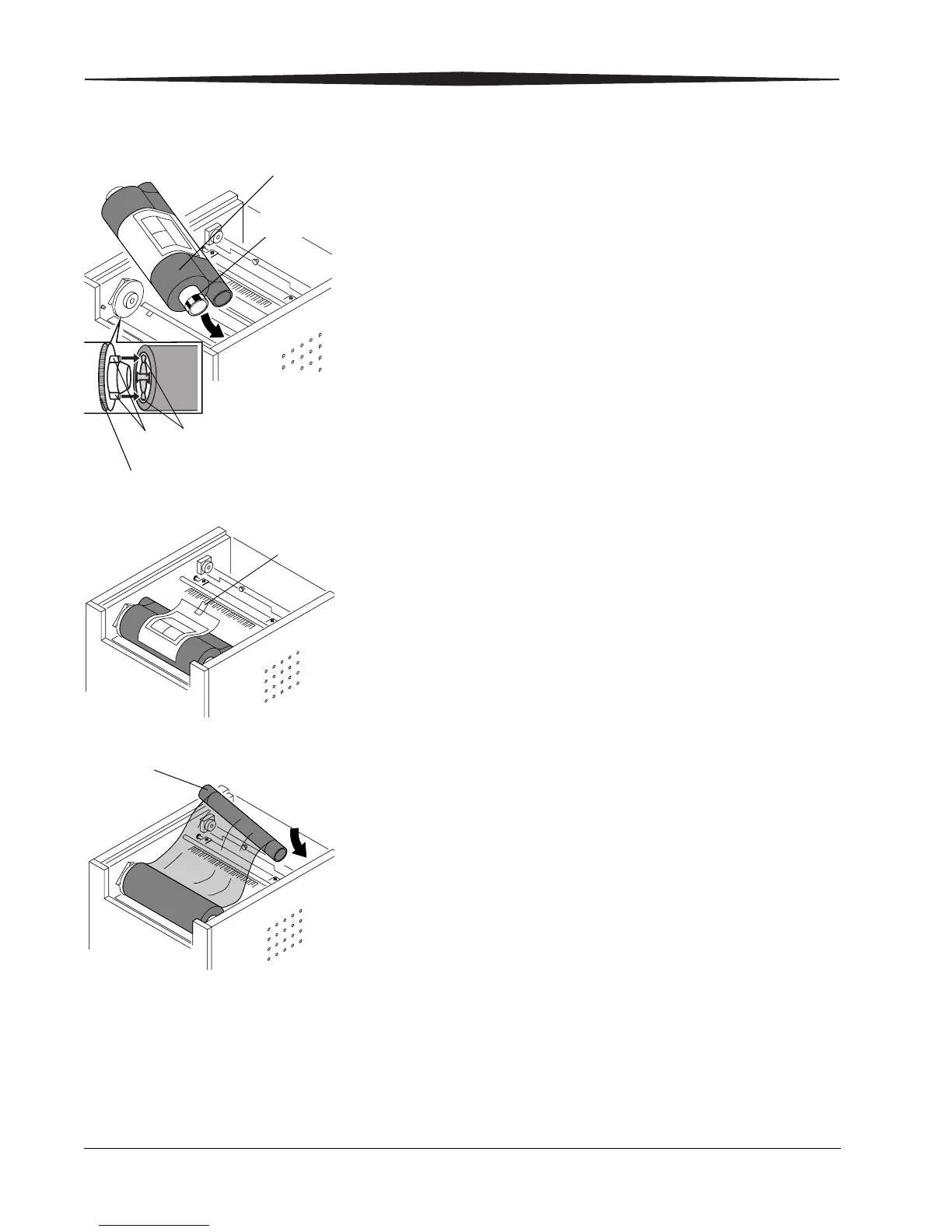

Supply spool
Thumb wheel
Lugs
Notches
Bar code
Label
Take-up spool
