K71000 Automatic PMCC Flash Point Analyzer
Operation and Instruction Manual
K71000-Manual -20-
automatically load all parameters that the user input in the global parameters menu from the previous
login. Clicking No will automatically reset all global parameter settings back to the factory default.

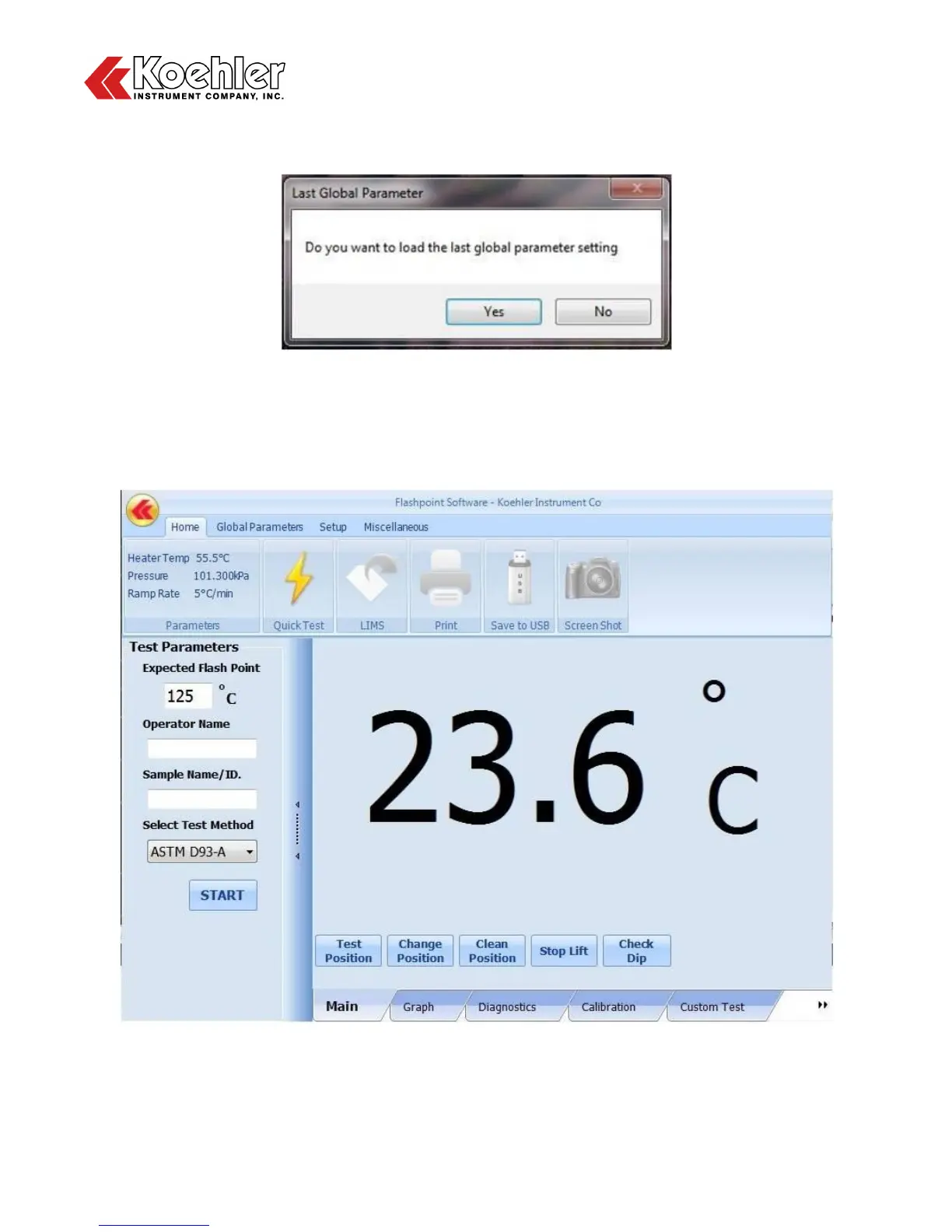

Figure 7: Last Global Parameter Pop Up
5. Main Home Screen - After clicking Yes or No to the Last Global Parameter pop up, the user will be
brought to the Main Home Screen. The Main Home Screen is comprised of four sections: An Upper
Tab Section, a Lower Tab Section, a Side Bar and the Main Display section. Descriptions for each
Section are given below:
Figure 8: Main Menu Screen
